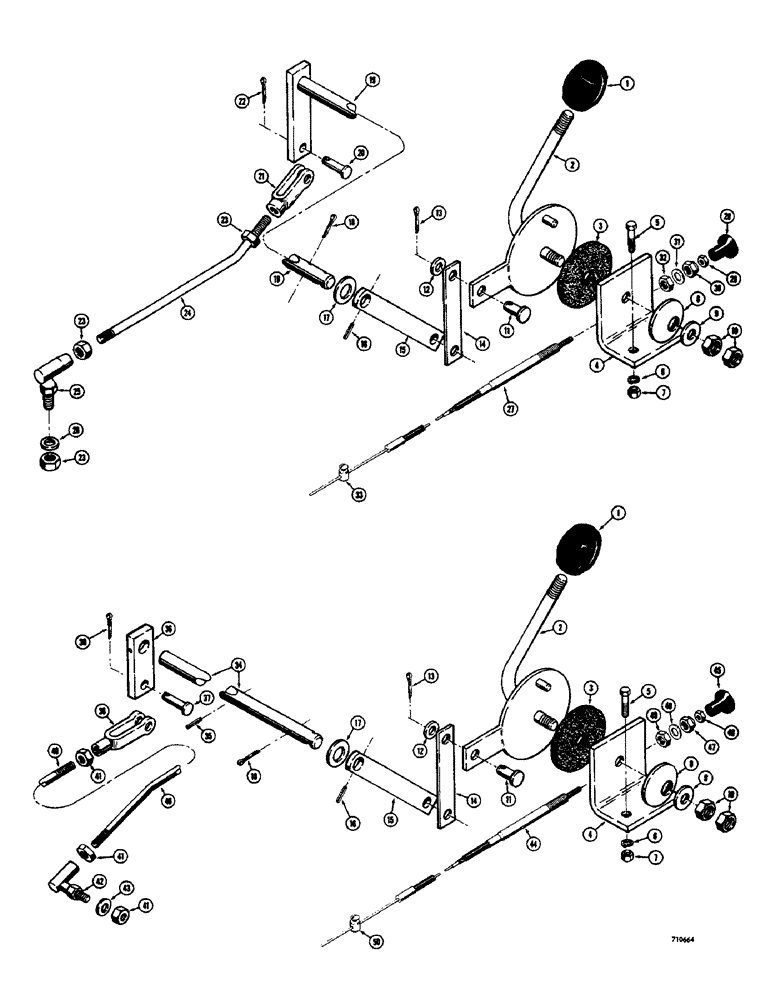

Запчасти Case 1700-SERIES (084) - ENGINE CONTROLS (10) - ENGINE

1

D53845

KNOB

- lever

1шт.

2

D53121

LEVER - throttle control

1шт.

3

R15071

DISC

- friction

1шт.

4

D53125

ANGLE - mounting, throttle

1шт.

5

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

25-104

NUT,1/4"-20, G5

2шт.

8

R14771

WASHER

- special, Belleville

1шт.

9

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

10

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC)

2шт.

11

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

12

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

13

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

14

D53120

LINK - throttle, at throttle lever

2шт.

15

D53119

LEVER - throttle linkage

1шт.

16

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

17

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

18

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

19

D53128

SHAFT - throttle linkage, model 1737 and 1737s uni-loaders only

1шт.

20

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Model 1737 and 1737s uni-loaders only 5/16" x .940"

1шт.

21

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - clevis, model 1737 and 1737s uni-loaders only

1шт.

22

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Model 1737 and 1737s uni-loaders only 3/32" x 5/8"

1шт.

23

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), Model 1737 and 1737s Uni-loaders only

3шт.

24

D53130

ROD - throttle, model 1737 and 1737s uni-loaders only

1шт.

25

A19105

BALL JOINT

JOINT - ball type, model 1737 and 1737s uni-loaders only

1шт.

26

92-5

LOCK WASHER,5/16"

model 1737 and 1737s uni-loaders only 5/16"

1шт.

27

D57003

CABLE PULLING GRIP

CABLE ASSEMBLY - choke, complete (Late production) Not shown, model 1737 and 1737s uni-loaders only, Includes: Ref. 27 - 33

1шт.

D52880

ASSEMBLY - choke, (Early production), model 1737 and 1737s uni-loaders only, Includes: Ref. 27 - 33

1шт.

27

NSS

NOT SOLD SEPARAT

CABLE - choke control, model 1737 and 1737s uni-loaders only

1шт.

28

D52915

KNOB

- cable assembly, model 1737 and 1737s uni-loaders only

1шт.

29

129-660

NUT,#10-32, Brass

Model 1737 and 1737s uni-loaders only #10-32, Brass

1шт.

30

D52916

NUT - special sealing (5/16" - 24 NF), model 1737 and 1737s uni-loaders only

1шт.

31

195-520

WASHER,1/4"

- flat (5/16"), model 1737 and 1737s uni-loaders only

1шт.

32

86637933

JAM NUT,5/16" - 24, Gr 5

Model 1737 and 1737s uni-loaders only Jam, 5/16"-24, G5

1шт.

33

L32208

CLAMP

COLLAR ASSEMBLY - cable, model 1737 and 1737s uni-loaders only

1шт.

34

D53133

SHAFT - throttle linkage

1шт.

35

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

36

D53132

LEVER - throttle, shaft

1шт.

37

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

38

A18709

CLEVIS

YOKE - clevis

1шт.

39

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

40

D53134

ROD - throttle

1шт.

41

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

3шт.

42

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball type

1шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

44

D57003

CABLE PULLING GRIP

CABLE ASSEMBLY - shutoff, complete (Late production) Not shown, Includes: Ref. 44 - 50

1шт.

D53383

CABLE

ASSEMBLY - shutoff (Early production), Includes: Ref. 44 - 50

1шт.

44

NSS

NOT SOLD SEPARAT

CABLE - shutoff

1шт.

45

D52915

KNOB

- cable assembly

1шт.

46

129-660

NUT,#10-32, Brass

1шт.

47

D52916

NUT - special sealing (5/16" - 24 NF)

1шт.

48

195-520

WASHER,1/4"

- flat (5/16")

1шт.

49

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

50

L32208

CLAMP

COLLAR ASSEMBLY - cable

1шт.
