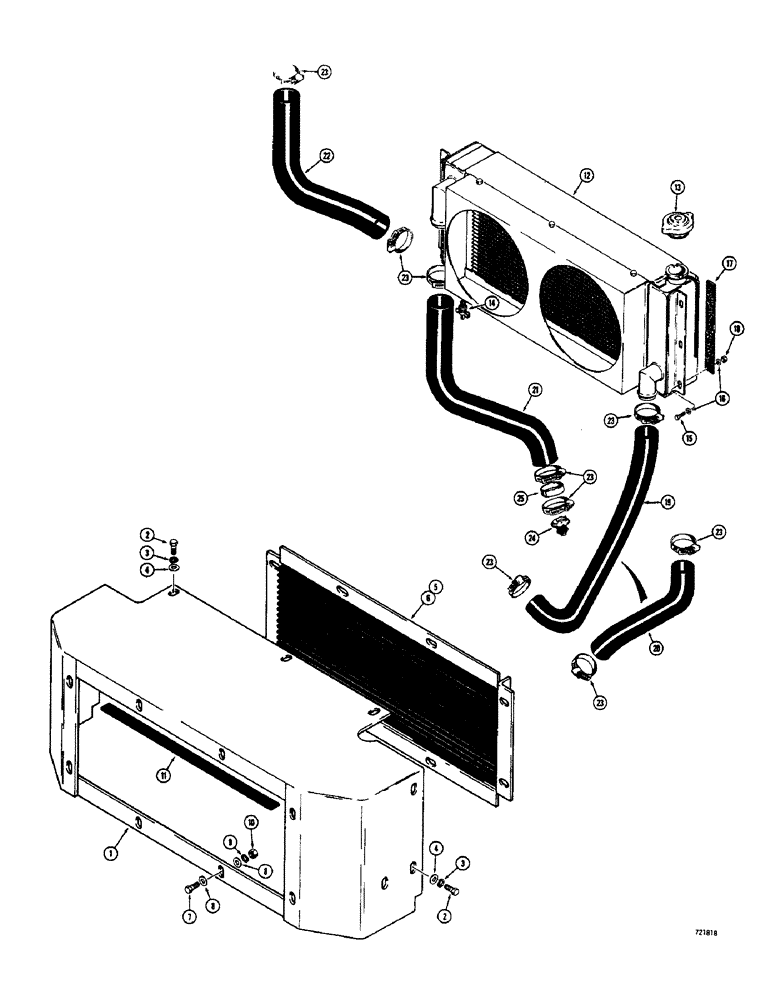

Запчасти Case 1700-SERIES (073A) - RADIATOR, SHROUD, GRILLE AND HOSES (10) - ENGINE

1

D53409

SHOE

SHROUD - radiator

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

4

195-525

WASHER,3/8", SAE

- flat (3/8") Zinc plated

9шт.

5

D53517

GRILLE - radiator (1737 and 1740)

1шт.

6

D55301

GRILLE - radiator (1737S)

1шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

8

195-521

WASHER,5/16", SAE

- plain (5/16" - 18 NC) Zinc plated

16шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

10

9635082

NUT,5/16" - 18, Gr 5

8шт.

11

D54740

SEALING STRIP

STRIP - insulation

1шт.

D53481

RADIATOR ASSEMBLY - cooling (1737 and 1740 only), Include: Ref. 12 - 13

1шт.

D55092

RADIATOR ASSEMBLY - cooling (1737S only), Include: Ref. 12 - 13

1шт.

12

NSS

NOT SOLD SEPARAT

RADIATOR - cooling

1шт.

13

F23120

CAP

- 7 P.S.I. (D53481 and D55092 radiator)

1шт.

14

217-103

COCK, DRAIN

VALVE - drain cock

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

16

195-25

WASHER,3/8"

- plain () 3/8"

12шт.

17

D53541

DAMPENER - vibration

2шт.

18

131-652

LOCK NUT,3/8"-16, GB

NUT - hex., lock (3/8" - 16 NC)

6шт.

19

D53508

RADIATOR HOSE,1.75" ID x 14.25", SAE 20R4 CLASS R

Lower (1737 and 1737S) 1.75" ID x 14.25", SAE 20R4 CLASS R

1шт.

20

D53510

HOSE ASSY.

HOSE - radiator, lower (1740), Serial Range: -9818980

1шт.

20

D58933

HOSE ASSY.

HOSE - radiator, lower (1740), Start Serial: 9818980

1шт.

21

D53506

RADIATOR HOSE,2.00" ID x 8.00", SAE 20R4 CLASS R

Upper (1737 and 1737S) 2.00" ID x 8.00", SAE 20R4 CLASS R

1шт.

22

D53509

RADIATOR HOSE,2.00" ID x 7.40", SAE 20R4 CLASS SC

Upper (1740) 2.00" ID x 7.40", SAE 20R4 CLASS SC

1шт.

23

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

5шт.

24

G11065

CASE

THERMOSTAT - temperature (1737 and 1737S)

1шт.

25

D53507

SUPPORT

- hose (1737 and 1737S)

1шт.
