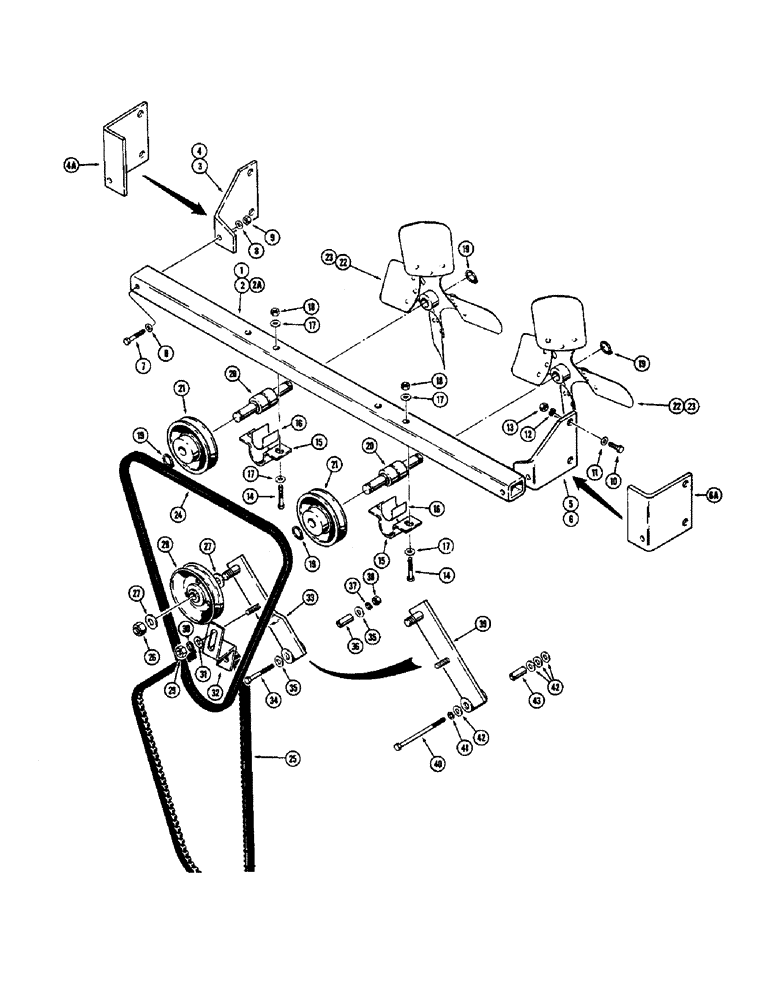

Запчасти Case 1700-SERIES (072) - FAN MOUNTING AND BELTS, MODELS WITH RIGID MOUNTED IDLER ARMS (10) - ENGINE

1

D53386

TUBE

CROSSBAR - fan mounting, 35" long (Use D61035 crossbar and D61033 and D61034 brackets for service)

1шт.

2

D56236

TUBE

CROSSBAR - fan mounting, 34-3/4" long (Use D61035 crossbar and D61033 and D61034 brackets for service)

1шт.

2a

D61035

TUBE

CROSSBAR - fan mounting, 34-1/4" long

1шт.

3

D54960

PLATE

BRACKET - L.H., bolts to inside of crossbar (Use D61035 crossbar, D61033 and D61034 brackets for service)

1шт.

4

D56045

PLATE ASSY.

BRACKET - L.H. bolts to outside of D56236 crossbar (Use D61035 crossbar, D61034 and D61035 bracket for service)

1шт.

4a

D61034

LARGE PLATE

BRACKET - L.H. bolts to outside of D61035 crossbar

1шт.

5

D54961

PLATE

BRACKET - R.H. bolts to inside of crossbar (Use D61035 crossbar, D61033 and D61034 brackets for service)

1шт.

6

D56044

PLATE ASSY.

BRACKET - R.H., bolts to outside of D56236 crossbar (Use D61035 crossbar, D61033 and D61034 brackets for service)

1шт.

6a

D61033

LARGE PLATE

BRACKET - R.H. bolts to outside of D61035 crossbar

1шт.

7

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

8

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

9

131-652

LOCK NUT,3/8"-16, GB

NUT - hex., lock (3/8" - 16 NC)

2шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

11

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

14

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

15

D54767

CLAMP

- shaft, fan

2шт.

16

D54766

GUARD ASSY.

WRAPPER - fan shaft

2шт.

17

195-25

WASHER,3/8"

- plain () 3/8"

8шт.

18

131-652

LOCK NUT,3/8"-16, GB

NUT - hex., lock (3/8" - 16 NC)

4шт.

19

NLS

NO LONGER SERVICED

Ring, Snap, #62, Ext

4шт.

20

D52999

SHAFT

ASSEMBLY - fan

2шт.

21

D53493

SHEAVE

PULLEY - fan drive (3-3/4" dia.) Standard

1шт.

21

D60782

PULLEY - fan drive (4" dia.) Noise reduction models

1шт.

22

D53492

FAN

- cooling, 10" (1737 and 1740)

2шт.

23

D55129

FAN

- cooling, 10" (1737S)

2шт.

24

D53495

BELT,0.50" W x 56.70" L

Fan Drive 0.50" W x 56.70" L

1шт.

25

A38824

BELT

Alternator and Fan

1шт.

26

131-1139

NUT,5/8"-11, GA

- lock, hex. (5/8" - 11 NC)

1шт.

27

95-10

WASHER,5/8"

- standard wrot () 5/8"

2шт.

28

D53391

PULLEY

- idler

1шт.

29

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

30

92-6

LOCK WASHER,3/8"

1шт.

31

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

32

D55248

BRACKET

- idler, tension adjustment

1шт.

33

D55012

ARM ASSEMBLY - idler (1737 and 1737S)

1шт.

34

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

1шт.

35

195-25

WASHER,3/8"

- plain, 3/8"

1шт.

36

D53393

SPACER

- idler arm

1шт.

37

92-6

LOCK WASHER,3/8"

1шт.

38

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

39

D55014

ARM

ASSEMBLY - idler (1740)

1шт.

40

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4"

1шт.

41

92-6

LOCK WASHER,3/8"

1шт.

42

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

43

D53393

SPACER

- idler arm

1шт.
