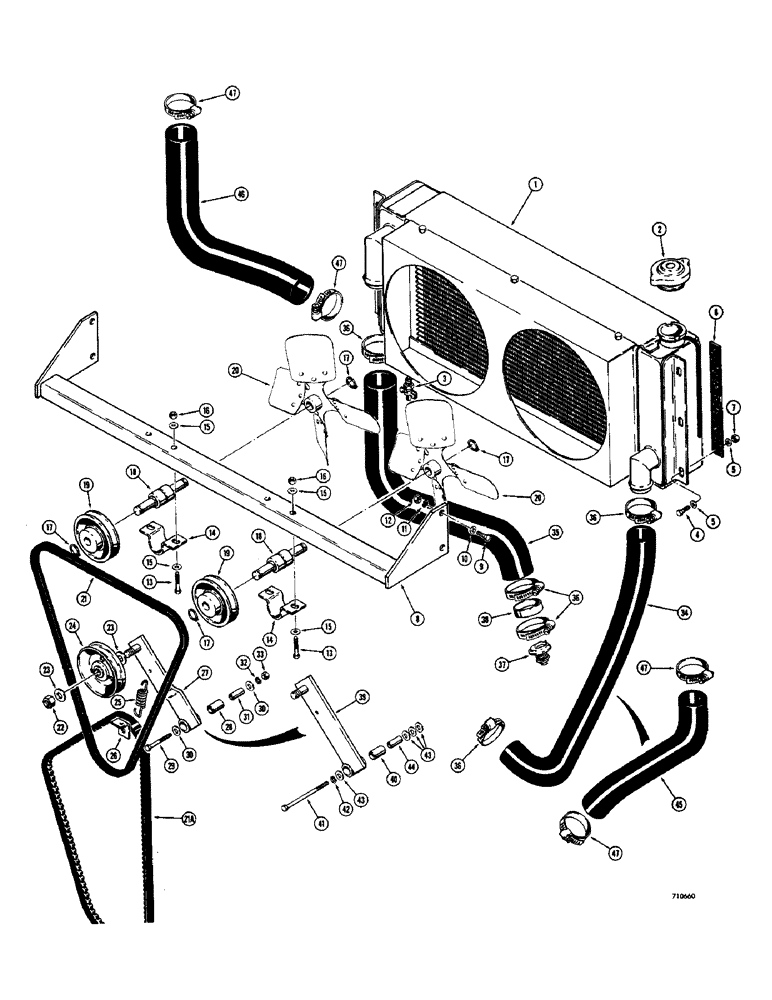

Запчасти Case 1700-SERIES (070) - FAN, RADIATOR AND RELATED PARTS, MODELS WITH SPRING HELD IDLER ARMS (10) - ENGINE

D53481

RADIATOR ASSEMBLY - cooling, Inlcudes: Ref. 1 - 2

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR - cooling

1шт.

2

F23120

CAP

- radiator, 7 P.S.I.

1шт.

3

217-103

COCK, DRAIN

VALVE - draincock

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

5

195-25

WASHER,3/8"

- plain () 3/8"

12шт.

6

D53541

DAMPENER - vibration

2шт.

7

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

6шт.

8

D53387

BRACKET - fan mounting (Service with D61035 bar, D61034 and D61033 end plates - see Figure 72, items 2A, 4A and 6A)

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

10

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

14

D53384

CLAMP

- shaft, fan (Service with D54766 wrapper and D54767 clamp - see Figure 72)

2шт.

15

195-25

WASHER,3/8"

- plain () 3/8"

8шт.

16

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

4шт.

17

103-1162

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

4шт.

18

D52999

SHAFT

ASSEMBLY - fan

2шт.

19

D53493

SHEAVE

PULLEY - fan drive

2шт.

20

D53492

FAN

- cooling, 10 inch

2шт.

21

D53495

BELT,0.50" W x 56.70" L

Fan Drive 0.50" W x 56.70" L

1шт.

21a

A38824

BELT

Alternator and Fan

1шт.

22

131-1139

NUT,5/8"-11, GA

- lock, hex. (5/8" - 11 NC)

1шт.

23

95-10

WASHER,5/8"

- standard wrot () 5/8"

2шт.

24

D53391

PULLEY

- idler

1шт.

25

D40891

SPRING

- pulley tension

1шт.

26

D53483

BRACKET - spring mounting

1шт.

D53397

ARM ASSEMBLY - idler, model 1737 uni-loader only, Inlcudes: Ref. 27 - 28

1шт.

27

NSS

NOT SOLD SEPARAT

ARM - idler, model 1737 uni-loader only

1шт.

28

D53392

BUSHING - arm

1шт.

29

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

1шт.

30

195-25

WASHER,3/8"

- plain, 3/8"

2шт.

31

D53393

SPACER

- idler arm, model 1737 uni-loader only

1шт.

32

92-6

LOCK WASHER,3/8"

1шт.

33

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

1шт.

34

D53508

RADIATOR HOSE,1.75" ID x 14.25", SAE 20R4 CLASS R

Lower, Model 1737 Uni-loader only 1.75" ID x 14.25", SAE 20R4 CLASS R

1шт.

35

D53506

RADIATOR HOSE,2.00" ID x 8.00", SAE 20R4 CLASS R

Upper, Model 1737 Uni-loader only 2.00" ID x 8.00", SAE 20R4 CLASS R

1шт.

36

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

model 1737 uni-loader only #36, 1.81/2.75 Type F Worm

5шт.

37

G11065

CASE

THERMOSTAT - temperature, model 1737 uni-loader only

1шт.

38

D53507

SUPPORT

- hose, model 1737 uni-loader only

1шт.

D53400

ARM

ASSEMBLY - idler, model 1740 uni-loader only, Inlcudes: Ref. 39 - 40

1шт.

39

NSS

NOT SOLD SEPARAT

ARM - idler, model 1740 uni-loader only

1шт.

40

D53392

BUSHING - arm

1шт.

41

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4"

1шт.

42

92-6

LOCK WASHER,3/8"

1шт.

43

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

44

D53393

SPACER

- idler arm, model 1740 uni-loader only

1шт.

45

D53510

HOSE ASSY.

HOSE - radiator, lower, model 1740 uni-loader only

1шт.

46

D53509

RADIATOR HOSE,2.00" ID x 7.40", SAE 20R4 CLASS SC

Upper, Model 1740 Uni-loader only 2.00" ID x 7.40", SAE 20R4 CLASS SC

1шт.

47

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

model 1740 uni-loader only #36, 1.81/2.75 Type F Worm

4шт.
