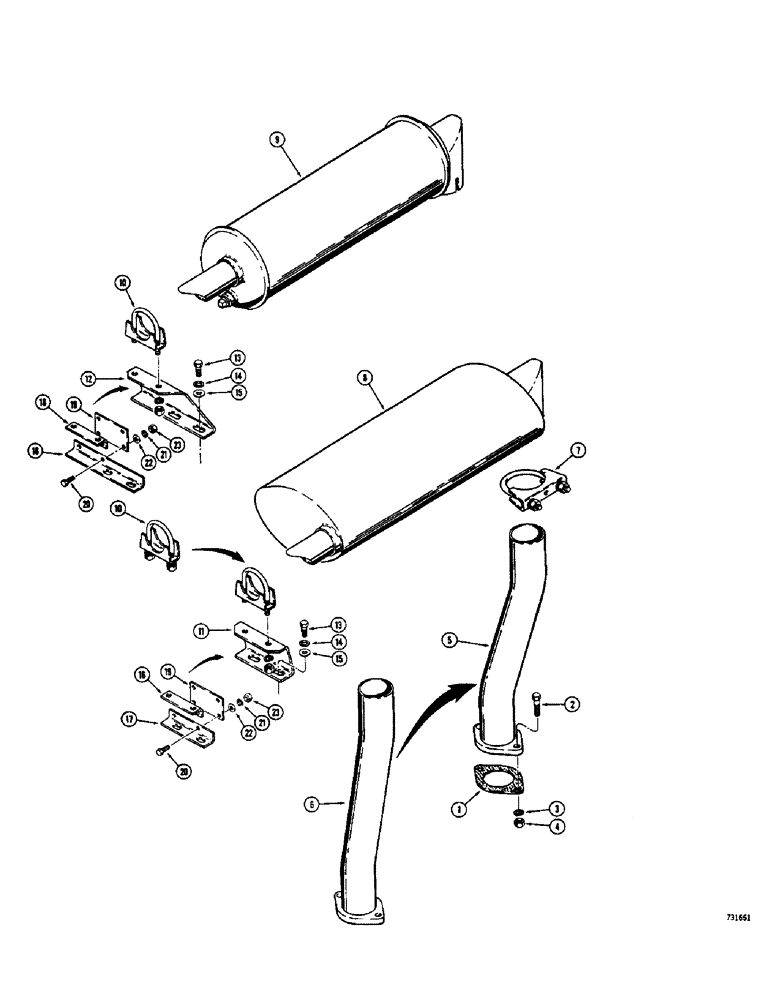

Запчасти Case 1700-SERIES (068) - MUFFLER AND EXHAUST SYSTEM, USED S/N 9816499 AND AFTER AND ON PRIOR MODELS AS SERVICE REPLACEMENT (10) - ENGINE

1

G46853

MANIFOLD GASKET

- outlet, exhaust

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

5

D54721

PIPE

- exhaust (Model 1740)

1шт.

6

D54720

PIPE

- exhaust (Model 1737)

1шт.

7

A13240

CLAMP,2-5/8" ID

ASSEMBLY - muffler mounting, 2-5/8" I.D.

1шт.

8

D60584

MUFFLER

- exhaust, noise reduction models

1шт.

9

D54719

MUFFLER

- exhaust, spark arresting

1шт.

10

G45410

CLAMP

ASSEMBLY - muffler mounting, 1-7/8" I.D.

1шт.

11

D54722

BRACKET

- mounting, D54718 muffler (One piece)

1шт.

12

D54723

BRACKET

- mounting, D54719 muffler (One piece)

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

16

D60646

BRACKET

- upper, three piece muffler mounts, Start Serial: 9823316

1шт.

17

D60647

BRACKET

- lower, three piece muffler mounts, Start Serial: 9823316

1шт.

18

D60802

BRACKET

- lower, three piece muffler mounts, Start Serial: 9823316

1шт.

19

D60648

CUSHION

- rubber, three piece muffler mounts, Start Serial: 9823316

1шт.

20

163-15

SCREW,Hex, #10 - 24 x 5/8"

HHCS - #10 - 24 NC x 5/8" (Zinc plated)

4шт.

21

D65036

WASHER - flat (3/16")

4шт.

22

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.
