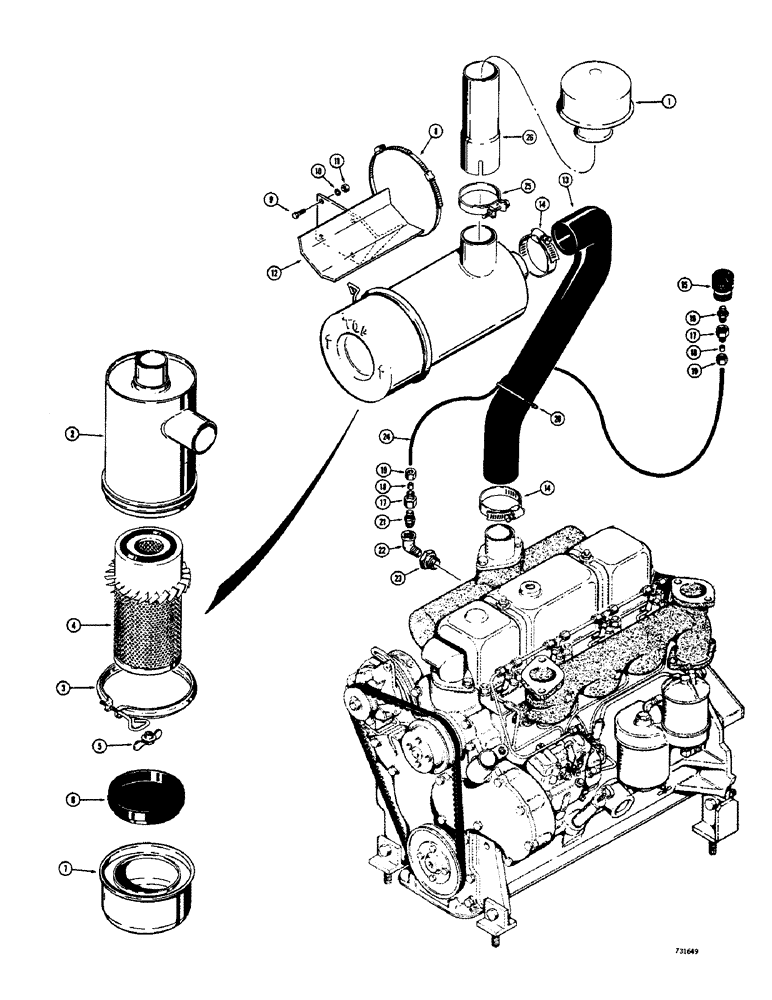

Запчасти Case 1700-SERIES (065A) - AIR CLEANER AND RELATED PARTS, HORIZONTAL MOUNTED AIR CLEANER USED MODEL 1740 TRACTOR (10) - ENGINE

1

A21433

CAP

- air inlet

1шт.

A59998

AIR CLEANER

ASSEMBLY - dry type, Inlcudes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

3

F84999

CLAMP,168.28mm

ASSEMBLY - cup retaining

1шт.

4

A42274

AIR FILTER

ELEMENT - filter

1шт.

5

F91761

WING NUT

AND WASHER - winged

1шт.

6

F22312

BAFFLE

- air cleaner

1шт.

7

F91760

CUP

- cleaner

1шт.

8

D57835

CLAMP - air cleaner

2шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

10

92-5

LOCK WASHER,5/16"

4шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

12

D57836

BRACKET - air cleaner mounting

1шт.

13

D57030

TUBE - air, Serial Range: cleaner-manifold

1шт.

14

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - tube

2шт.

15

A59569

INDICATOR

- air cleaner

1шт.

16

217-194

FITTING,1/8" - 27 Male NPTF x 1/8" - 27 Male NPTF

CONNECTOR - straight, male (Pipe), Inlcudes: Ref. 17 - 19

1шт.

222-5130

FITTING,7/16"-24 x 1/8" NPT Fem

CONNECTOR - straight, female, Inlcudes: Ref. 17 - 19

2шт.

17

NSS

NOT SOLD SEPARAT

CONNECTOR - straight

1шт.

18

222-5185

SLEEVE,1/4" Tube

- , connector 1/4" Tube

1шт.

19

222-5180

TUBE NUT,7/16"-24

- connector 7/16"-24

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

D36264

FITTING

NIPPLE - filtered

1шт.

22

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street (Used on cast iron manifold only) 90º, 1/8"-27, NPT

1шт.

23

D54833

PLUG

REDUCER - bushing (Used on cast iron manifold only)

1шт.

24

L16535

TUBE,0.25" OD x 20.5" L

- nylon

1шт.

25

214-26

CLAMP

- extension

1шт.

26

D61278

EXTENSION - air cleaner (If used)

1шт.
