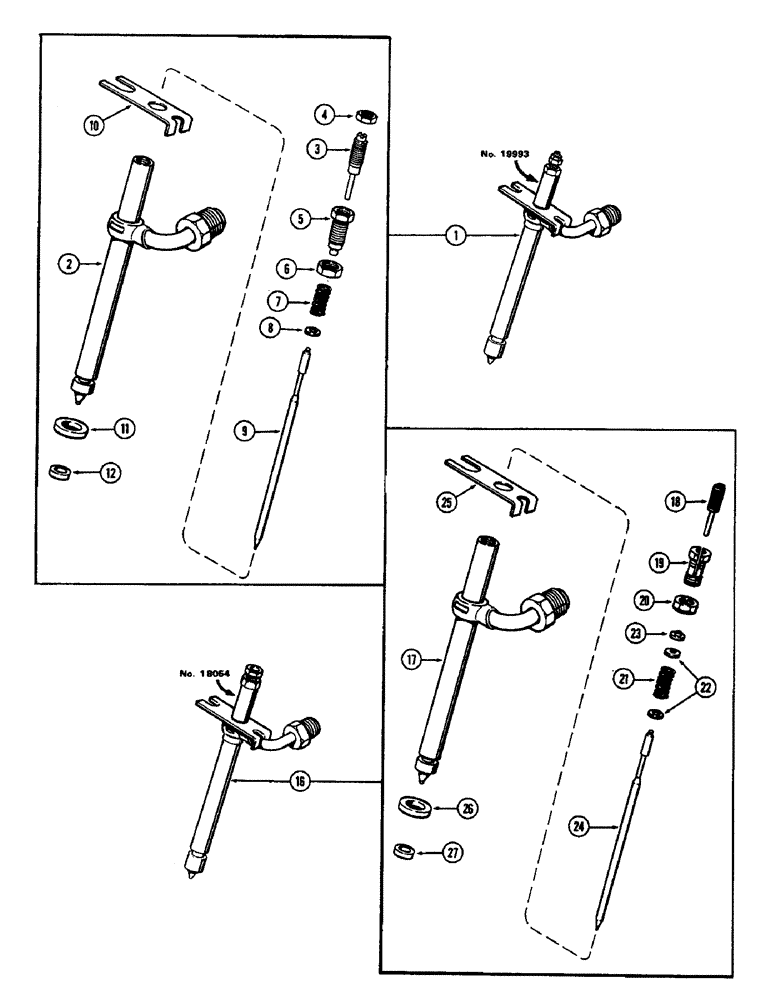

Запчасти Case 1700-SERIES (057A) - INJECTION NOZZLE, 188 DIESEL ENGINE (10) - ENGINE

1

A140829

NOZZLE INJECTION

NOZZLE ASSY. - fuel injector (Suppliers no. 20671 stamped on body) (Replaces A51234), A140829 injection, 1st used eng. ser. no. 2734508, Inlcudes: Ref. 2 - 12

4шт.

Whenever nozzle is removed from head the seal (A41402) and washer (A41403) must be replaced before nozzle is installed back in head.

1шт.

A140829R

REMAN-INJECT NOZZLE

1700-SERIES

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A51234)

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting

1шт.

7

A43733

SPRING

- pressure (Red code)

1шт.

8

A44369

SEAT

- spring

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A43506

PLATE ASSY.

PLATE - nozzle holder

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

16

A37836

NOZZLE

ASSY. - fuel injector (Suppliers no. 18054 stamped on body), A37836 injector, used prior to eng. ser. no. 2734508, Inlcudes: Ref. 17 - 27

1шт.

Whenever nozzle is removed from head the seal (A41402) and washer (A41403) must be replaced before nozzle is installed back in head.

1шт.

A140829R

REMAN-INJECT NOZZLE

1700-SERIES USED PRIOR TO ENG. SER. NO. 2734508, Reman For New P/N A37836

1шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A37836)

1шт.

18

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

19

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

20

A42424

LOCK NUT

- lock, adjusting screw

1шт.

21

A41444

VALVE SPRING

SPRING - pressure

1шт.

22

A41401

SEAT

- pressure spring

2шт.

23

A41407

WASHER

- ball type

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - nozzle (Order A37836)

1шт.

25

A43506

PLATE ASSY.

PLATE - nozzle locating

1шт.

26

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

27

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
