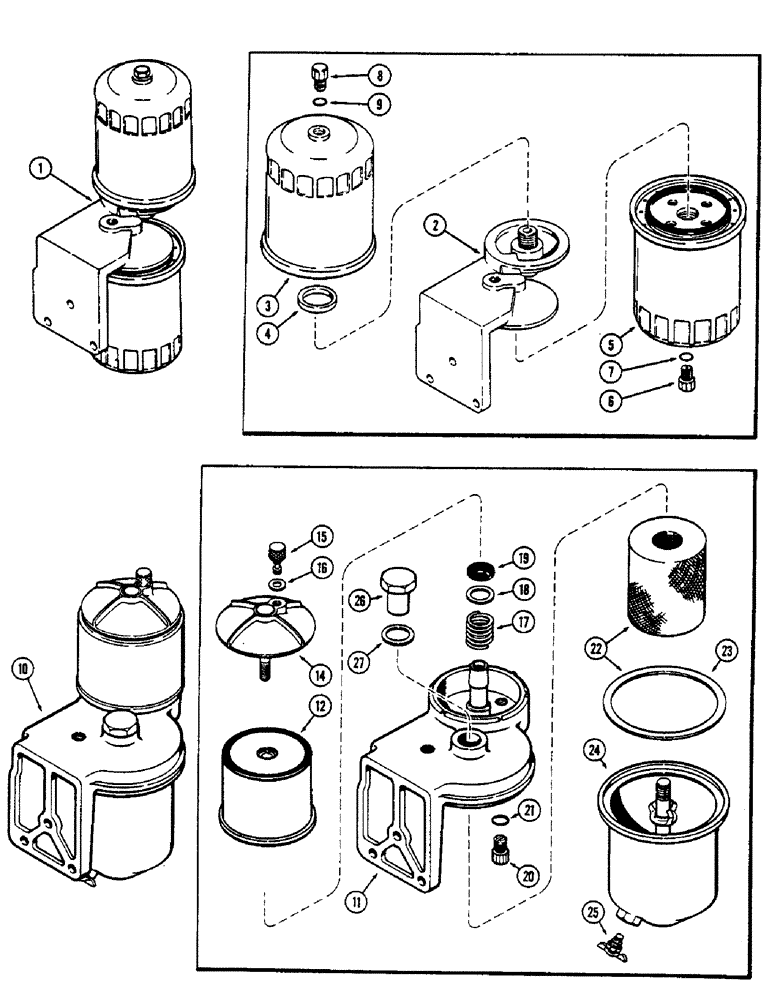

Запчасти Case 1700-SERIES (056) - FUEL FILTER, 188 DIESEL ENGINE (10) - ENGINE

1

A51739

FILTER

ASSY. - fuel (Replaces A35735 & A39865), spin-on type, 1st used eng. ser. no. 2718490, Inlcudes: Ref. 2 - 9

1шт.

2

A39866

HEAD

- filter

1шт.

3

A39867

FUEL FILTER

ELEMENT ASSY. - final filter, Inlcudes: Ref. 4

1шт.

4

A42315

GASKET

- element

1шт.

5

A39868

FUEL FILTER

ELEMENT ASSY. - primary filter

1шт.

6

G49080

PLUG

- drain

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Filter vent, Includes Ref. 9 Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

10

A35735

FILTER

ASSY. - fuel (Order A51739), A35735, can type, used prior to eng. ser. no. 2718490, Inlcudes: Ref. 11 - 27

1шт.

11

A35664

HEAD

- filter, A35735 fuel

1шт.

12

A51346

FILTER

ELEMENT ASSY. - final filter, w/gasket (Replaces A39937 & A37187), A35735 fuel

1шт.

14

A35672

CAP

ASSY. - final filter, A35735 fuel , Inlcudes: Ref. 15 - 16

1шт.

15

A35971

SCREW,1/4" - 20 x 0.695"

VALVE - bleeder, A35735 fuel filter

1шт.

16

NLS

NO LONGER SERVICED

GASKET - bleeder valve, A35735 fuel filter

1шт.

17

A35669

SPRING

- final filter, A35735 fuel

1шт.

18

A35670

WASHER

- final filter, A35735 fuel

1шт.

19

A35671

GASKET

- final filter (Rubber), A35735 fuel

1шт.

20

G49080

PLUG

- drain, final filter, A35735 fuel

1шт.

21

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - 3/8 x 9/16 x 3/32", A35735 fuel filter

1шт.

22

A35863

FILTER, ELEMENT

ELEMENT ASSY. - primary filter, A35735 fuel, Inlcudes: Ref. 23

1шт.

23

A28056

GASKET

- primary filter, A35735 fuel

1шт.

24

CASA37099

HOUSING

BODY - primary filter, A35735 fuel

1шт.

25

217-81

VALVE

- drain, primary filter, A35735 fuel

1шт.

26

A21131

NUT

- primary filter retaining, A35735 fuel

1шт.

27

A28055

GASKET

- retaining nut, A35735 fuel filter

1шт.
