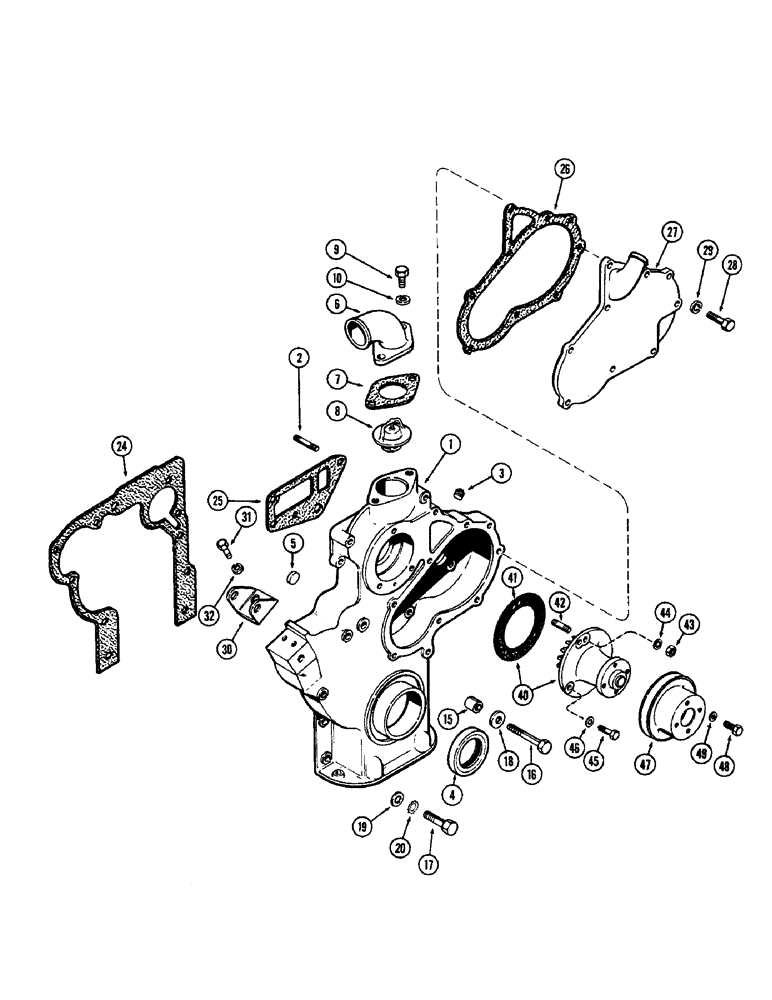

Запчасти Case 1700-SERIES (054) - TIMING GEAR COVER, 188 DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NO. 2728315 (10) - ENGINE

1

A39846

COVER ASSY - timing gear (Replaces A38955), Inlcudes: Ref. 2 - 5

1шт.

2

G11204

STUD

- 3/8" N.C. x 1-7/16"

3шт.

3

221-1022

PLUG,Sq Soc, 1/2"-14 NPTF

- 3/8" P.T., sckt. hd.

1шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft front

1шт.

5

A58620

PLUG,Cup, 3/4", Stainless

- 49/64" cup

1шт.

6

A39223

ELBOW - water outlet & thermostat housing

1шт.

7

G46907

GASKET

- elbow

1шт.

8

A57641

THERMOSTAT

- 180 degrees

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

15

A29442

RING

- dowel, cover locating

2шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

16

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

3шт.

16

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

1шт.

16

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

3шт.

17

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

17

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

1шт.

18

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

5шт.

19

92-6

LOCK WASHER,3/8"

12шт.

20

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

24

A38228

GASKET

- cover, lower

1шт.

25

A38084

GASKET,1.27mm Thk

- cover, upper

1шт.

26

G46859

GASKET

- gear cover

1шт.

27

A39220

COVER - gears

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

29

92-6

LOCK WASHER,3/8"

9шт.

30

A38492

BRACKET

- alternator mounting

1шт.

31

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

40

A39074

PUMP

ASSY - water

1шт.

41

A38083

GASKET

- water pump

1шт.

42

A29433

STUD

- pump mtg., 3/8" N.C. x 1", water

2шт.

43

25-106

NUT,3/8"-16, G5

- mtg. stud, 3/8" N.C. hex

2шт.

44

92-6

LOCK WASHER,3/8"

2шт.

45

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- pump mtg., 3/8 x 2-3/4" N.C. hex

1шт.

46

A7085

WASHER

- mtg. bolt (25/64 x 9/16 x 3/64" copper)

1шт.

47

A39216

PULLEY - drive belt, water pump

1шт.

48

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Pulley Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

49

92-5

LOCK WASHER,5/16"

4шт.
