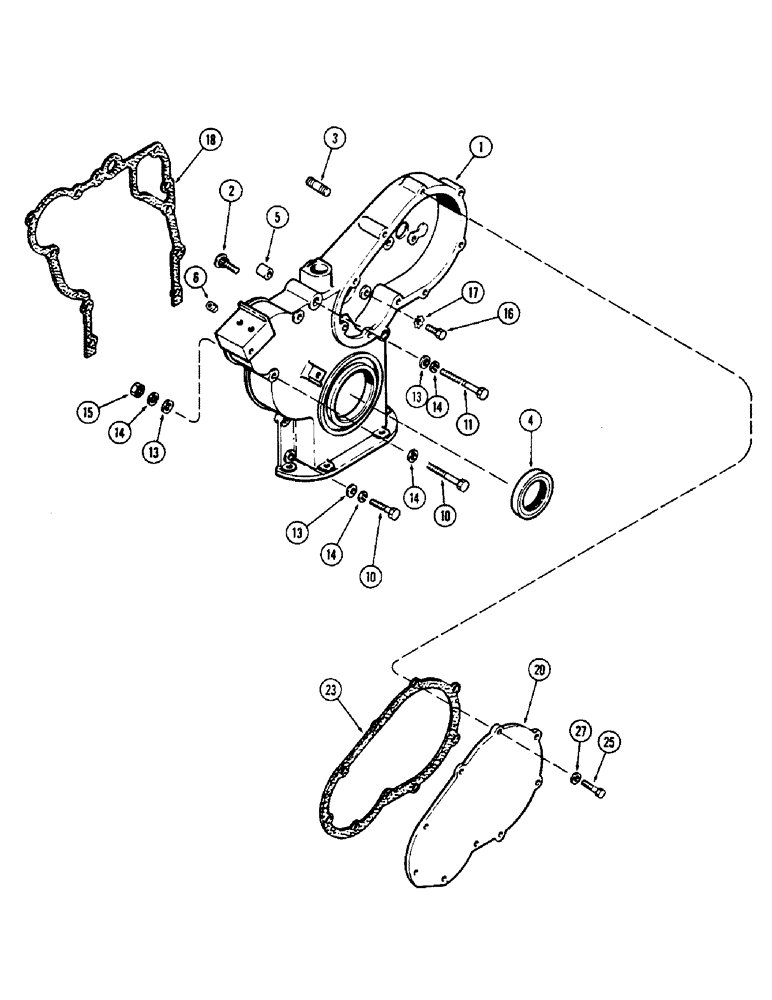

Запчасти Case 1700-SERIES (052) - TIMING GEAR COVER, 188 DIESEL ENGINE, 1ST USED ENGINE SERIAL NO. 2728315 (10) - ENGINE

1

A51981

COVER

ASSY. - timing gear (Replaces A51734), Inlcudes: Ref. 2 - 4

1шт.

2

A51649

STUD

- cover

2шт.

3

G11204

STUD

- injection pump (3/8" N.C. x 1-7/16")

3шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft (2 x 3 x 1/2")

1шт.

5

A29442

RING

DOWEL - cover to block (9/16 x 3/8 x 5/8")

2шт.

6

178-821

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - cover plug (3/8 x 3/8" N.C. socket hd.)

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

5шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover (3/8 x 1-1/2" N.C. hex.)

4шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- cover (3/8 x 2-3/4" N.C. hex.)

1шт.

13

A50820

WASHER

- (3/8 x 3/4 x 7/64")

11шт.

13

95-6

WASHER,3/8"

- 3/8 x 1 x 5/64"

1шт.

14

92-6

LOCK WASHER,3/8"

13шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

16

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cover (inside) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

17

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

18

A51529

GASKET

-, Serial Range: cover-block

1шт.

20

A51908

COVER

PLATE - cover inj. - pump drive gear (Replaces A39924)

1шт.

23

A39925

GASKET

- cover plate

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover plate Hex, 3/8"-16 x 1", G5, Full Thd

7шт.

27

92-6

LOCK WASHER,3/8"

7шт.
