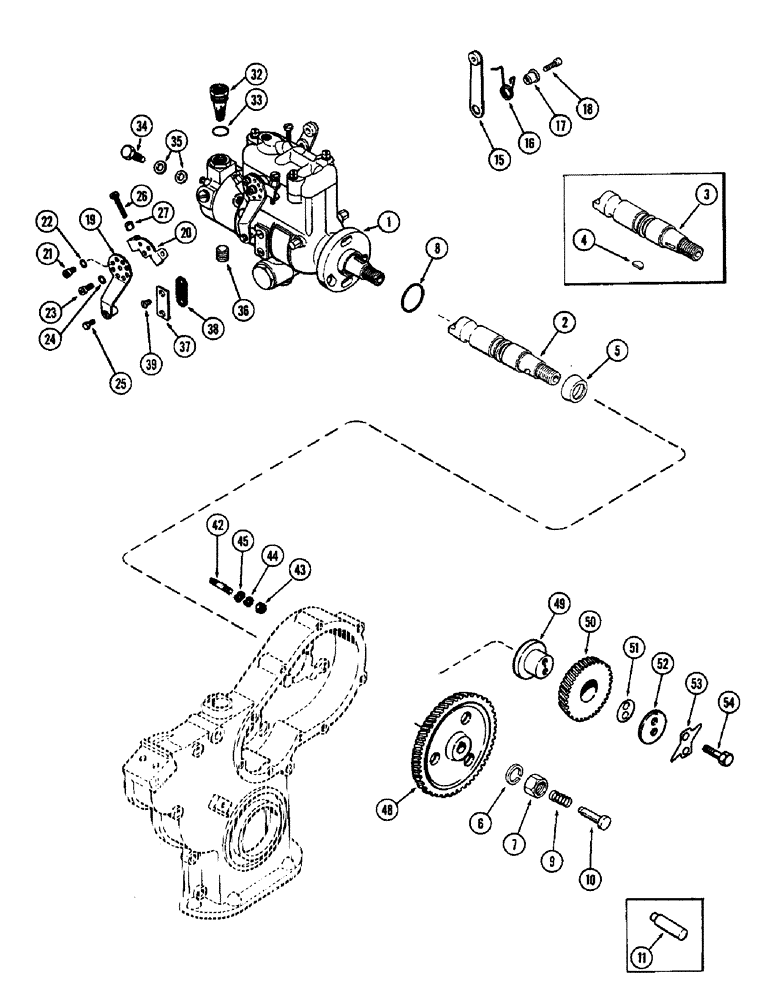

Запчасти Case 1700-SERIES (051A) - FUEL INJECTION PUMP AND DRIVE, 188 DIESEL ENGINE (10) - ENGINE

1

A39219

PUMP

ASSY. - fuel injection (2000 R.P.M.)

1шт.

2

A44710

SHAFT

ASSY. - drive, w/pin, Inlcudes: Ref. 2 - 39

1шт.

3

G47113

SHAFT

- drive (Requires key)

1шт.

4

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

(Used w/G47113 shaft only) #6, 5/32" x 5/8"

1шт.

5

R14711

SEAL

- drive shaft

2шт.

6

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

7

25-159

JAM NUT,Jam, 9/16"-18, G5

- jam, 9/16" N.F. hex.

1шт.

8

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

9

G48502

SPRING

- thrust, pump shaft (1-3/16" free length)

1шт.

10

A44653

PLUNGER

- thrust spring, w/button head

1шт.

11

G47128

PLUNGER

- thrust spring (Order A44653)

1шт.

15

G45338

ARM

- throttle

1шт.

16

G48505

SPRING

- throttle arm

1шт.

17

G49621

RETAINER

- throttle arm spring

1шт.

18

G49079

SET SCREW

SCREW - throttle arm

1шт.

19

G45337

ARM

- fuel shut-off

1шт.

20

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

21

165-1

SCREW,#8 x 1/4"

- position, shut-off arm

1шт.

22

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Position screw Int Tooth, #8

1шт.

23

165-30

HEX SOC SCREW,#10 - 32 x 3/8"

SCREW - retaining, shut-off arm

1шт.

24

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Retaining screw Int Tooth, #10

1шт.

25

163-7

SCREW,Sl Hex, #8 - 32 x 3/8"

- pivot

1шт.

26

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle

1шт.

27

51200274

NUT

- high idle screw

1шт.

32

CAS73671

FILTER, ELEMENT

CAP - fuel inlet w/filter

1шт.

33

51200280

SEAL

- filter

1шт.

34

73613

SCREW

- connector, inj. tubes

4шт.

35

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screws

8шт.

36

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

37

G46330

COVER

- timing window

2шт.

38

NLS

NO LONGER SERVICED

- cover

2шт.

39

NLS

NO LONGER SERVICED

- timing cover

4шт.

42

G11204

STUD

- pump mtg. (3/8" N.C. x 1-7/16")

3шт.

43

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

44

92-6

LOCK WASHER,3/8"

3шт.

45

A30043

WASHER

- 3/8 x 7/8 x 1/8" cut

3шт.

48

G2076

GEAR

- drive, injection pump

1шт.

49

G11726

HUB

- idler gear

1шт.

50

G11852

GEAR

ASSY. - idler, w/bushing

1шт.

51

G11728

SHIM,.005" Thk

Idler gear .005" Thk

1шт.

51

G11729

SHIM,.006" Thk

Idler gear .006" Thk

1шт.

51

G11730

SHIM,.007" Thk

Idler gear .007" Thk

1шт.

51

G11731

SHIM,.009" Thk

Idler gear .009" Thk

1шт.

52

G11732

PLATE

- thrust, idler gear

1шт.

53

G11746

PLATE

- lock, idle gear bolts

1шт.

54

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Idler gear Hex, 3/8"-16 x 2", G5

2шт.
