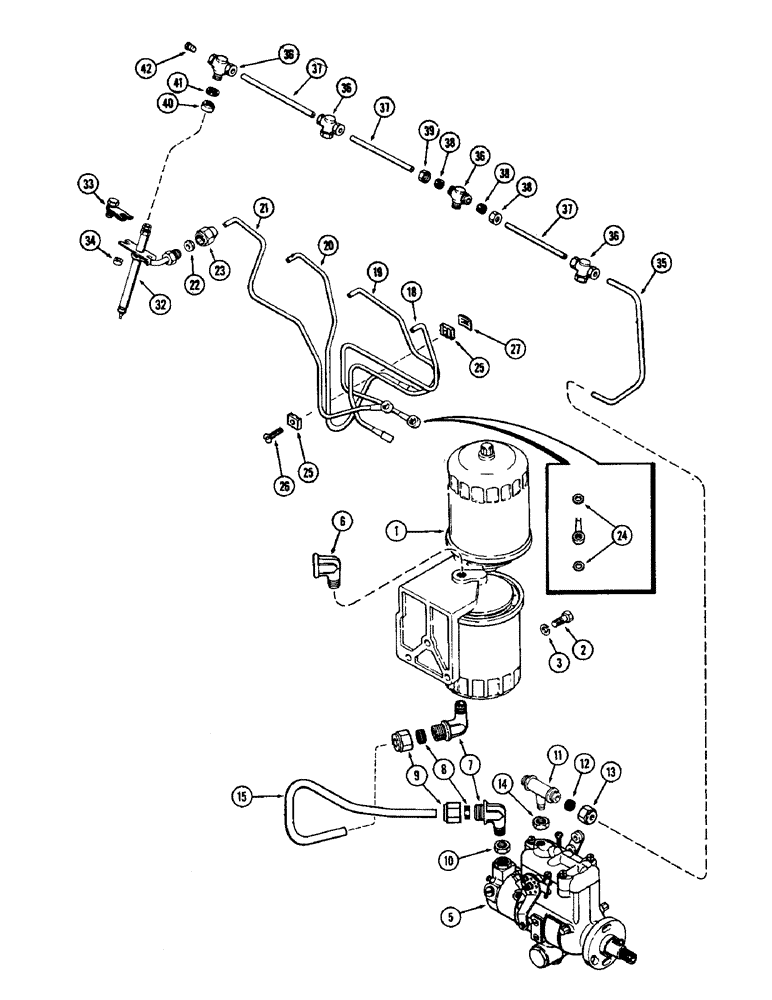

Запчасти Case 1700-SERIES (050) - FUEL INJECTION SYSTEM, 188 DIESEL ENGINE (10) - ENGINE

1

REF

INSTRUCTION

FILTER ASSY, fuel (Order from Figure 056)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Filter mounting

3шт.

3

92-5

LOCK WASHER,5/16"

3шт.

5

A39219

PUMP

ASSY, injection (See Figure 051A)

1шт.

6

221-412

ELBOW,90 Degree, 1/4"-27, NPT

Fuel inlet

1шт.

7

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY, filter outlet & pump inlet, Includes: Ref. 8 - 9

2шт.

8

222-104

SLEEVE,3/8" Tube

1шт.

9

222-114

NUT,5/8"-24

For 3/8" tube

1шт.

10

A38161

LOCK NUT

Sealing, 1/4" P.T. (Pump inlet elbow)

1шт.

11

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY, pump outlet, Includes: Ref. 12 - 13

1шт.

12

222-102

SLEEVE,1/4" Tube

2шт.

13

87017024

TUBE NUT,1/2"-24

For 1/4" tube

2шт.

14

A38160

LOCK NUT

Sealing, 1/8" P.T. (Pump outlet tee)

1шт.

15

A51784

TUBE

, Serial Range: Filter-pump

1шт.

18

A41391

TUBE

ASSY, pump to no. 1 cylinder, Includes: Ref. 22 - 24

1шт.

19

A41392

TUBE

ASSY, pump to no. 2 cylinder, Includes: Ref. 22 - 24

1шт.

20

A41393

TUBE

ASSY, pump to no. 3 cylinder, Includes: Ref. 22 - 24

1шт.

21

A41394

TUBE

ASSY, pump to no. 4 cylinder, Includes: Ref. 22 - 24

1шт.

22

A37850

PIPE FITTING

SLEEVE - tube

1шт.

23

A37851

NUT

Tube

1шт.

24

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - screw connector

2шт.

25

A58709

BRACKET

CLAMP - injection tubes

4шт.

26

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

Clamp

2шт.

27

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

Clamp screw

2шт.

32

REF

INSTRUCTION

NOZZLE ASSY. - injector (Order from page 057A)

4шт.

33

A37837

CLAMP

ASSY, nozzle

4шт.

34

A37839

SPACER

SPACER - nozzle clamp

4шт.

35

A142906

TUBE

Leak-off (To inj. pump) (Replaces A38158 & A51658)

1шт.

36

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - leak-off lines & inj. nozzles

4шт.

37

A38644

TUBE

Leak-off

3шт.

38

222-102

SLEEVE,1/4" Tube

Leak-off Tube

8шт.

39

87017024

TUBE NUT,1/2"-24

Leak-off tube (For 1/4" tube)

8шт.

40

A58961

NUT

, Serial Range: Nozzle-tee

4шт.

41

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

, Serial Range: Nozzle-tee

4шт.

42

47-47

RIVET,FH, 1/4" x 7/16"

Plug, leak-off tee

1шт.
