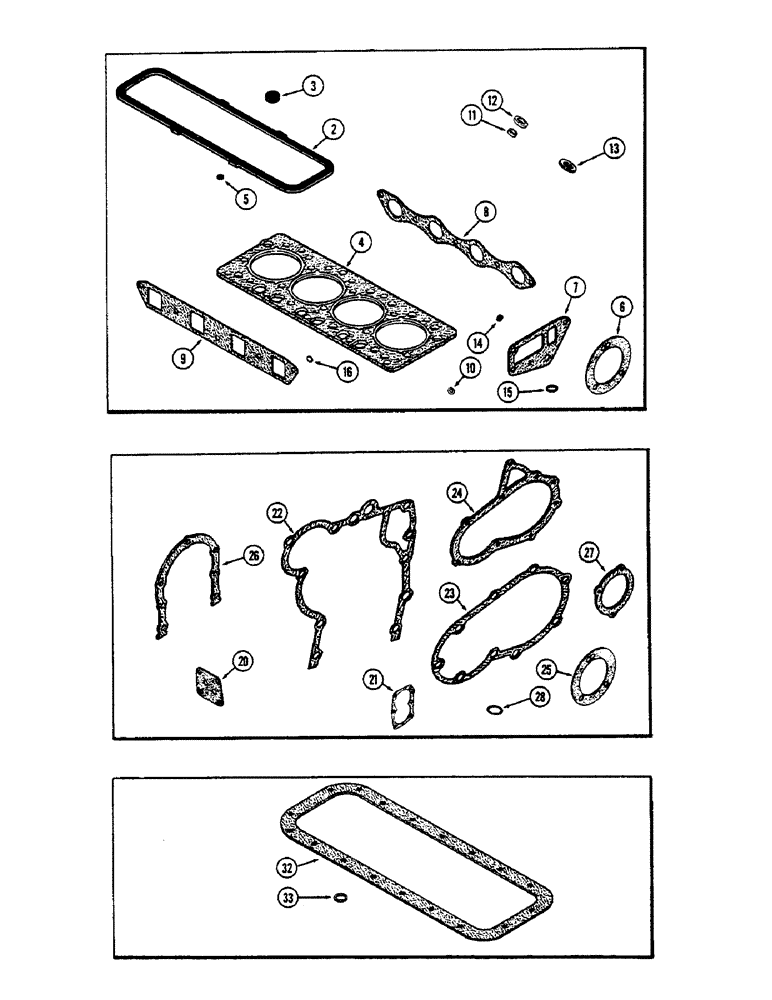

Запчасти Case 1700-SERIES (048) - ENGINE GASKET KITS, 188 DIESEL ENGINE (10) - ENGINE

A43193

GASKET

KIT - valve grind (Replaces A43069 & A42001), Includes: Ref. 2 - 16

1шт.

For complete engine overhaul order 1 - A43193, 1 - A43198 & 1 - A40712.

1шт.

2

A43030

GASKET,3.05mm Thk

- valve cover

1шт.

3

G46867

GROMMET

- valve cover stud (Rubber)

2шт.

4

A39279

GASKET

- cylinder head (Replaces A38640)

1шт.

5

G46851

SEAL

- valve stem (Rubber)

8шт.

6

A38083

GASKET

- water pump

1шт.

7

A38084

GASKET,1.27mm Thk

- timing gear cover, upper

1шт.

8

G46872

MANIFOLD GASKET

- manifold, exhaust

1шт.

9

G46871

GASKET

- manifold, intake

1шт.

10

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection, Serial Range: lines-pump

8шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, inj. nozzle (Used w/pencil inj.)

4шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- inj. nozzle (Used w/pencil inj.)

4шт.

13

G49068

GASKET

- inj. nozzle seat (Not used w/pencil inj.)

4шт.

14

222-101

SLEEVE,3/16" Tube

- 3/16" O.D. (Not used w/pencil inj.)

4шт.

14

222-103

SLEEVE,5/16" Tube

" (Not used w/pencil inj.] 5/16" Tube

4шт.

15

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - water pump body

1шт.

16

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - (3/8 x 9/16 x 3/32") (Used w/alum. manifold)

3шт.

A43198

GASKET

KIT - cylinder block (Replaces A41426), Includes: Ref. 20 - 28

1шт.

For complete engine overhaul order 1 - A43193, 1 - A43198 & 1 - A40712.

1шт.

20

G46854

GASKET

- oil filter brkt. (Not used this application)

1шт.

21

G46852

GASKET

- oil pump cover

1шт.

22

A51529

GASKET

- timing gear cover, lower (Replaces A38228)

1шт.

23

A39925

GASKET

- inj. pump drive gear cover (Used w/A39924 cover) (See Fig. 052)

1шт.

24

G46859

GASKET

- inj. pump gear cover (Used w/A39220 cover) (See Fig. 054)

1шт.

25

A38083

GASKET

- water pump

1шт.

26

A39188

GASKET

- rear oil seal retainer

1шт.

27

A30042

GASKET

- power str. pump (Not used this application)

1шт.

28

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - water pump body

1шт.

A40712

KIT

GASKET KIT - oil pan, Includes: Ref. 32 - 33

1шт.

For complete engine overhaul order 1 - A43193, 1 - A43198 & 1 - A40712.

1шт.

32

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: pan-block

1шт.

33

A58608

GASKET

- drain plug

1шт.
