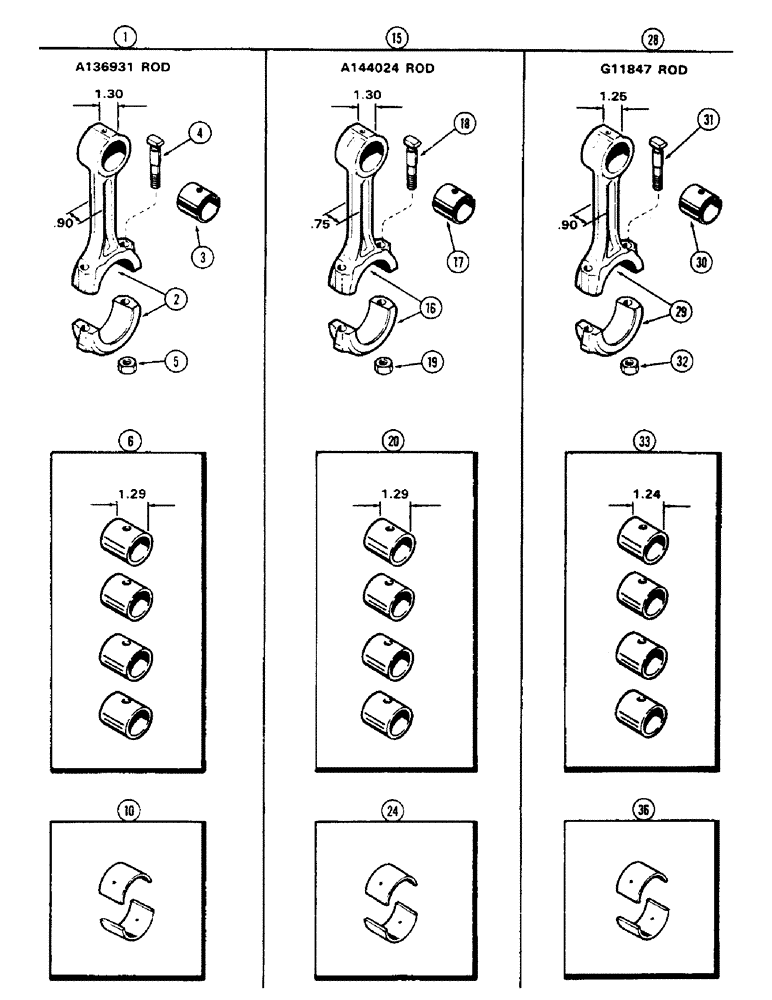

Запчасти Case 1700-SERIES (045A) - CONNECTING RODS, 188 DIESEL ENGINE (10) - ENGINE

1

A136931

ROD, CONNECTING

ROD ASSY. - connecting, Eng. Serial No. 2767997, Includes: Ref. 2 - 5

4шт.

2

NSS

NOT SOLD SEPARAT

ROD & CAP - (0.90" "I" Section width and 1.30" pin boss width)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 6) (1-7/32 x 15/16 x 1.29" width)

1шт.

4

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

5

A51904

NUT

NUT - cap bolt

2шт.

6

A44083

KIT

BUSHING SET - piston pin (Set of 4)

1шт.

10

A36500

SEAL

LINER SET - conn. rod brg. (Std.) (Set of 2)

4шт.

10

A36501

BEARING LINER

LINER SET - conn. rod brg. (-.002") (Set of 2)

4шт.

10

A36502

LINING

LINER SET - conn. rod brg. (-.010") (Set of 2)

4шт.

10

A36503

BEARING LINER

LINER SET - conn. rod brg. (-.020") (Set of 2)

4шт.

10

A36504

KIT

LINER SET - conn. rod brg. (-.030") (Set of 2)

4шт.

15

A144024

ROD

ASSY. - connecting (Replacement for G11847), used prior to eng. ser. no. 2767997

4шт.

16

NSS

NOT SOLD SEPARAT

ROD & CAP - (0.75" "I" Section width and 1.30" pin boss width)

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 20) (1-7/32 x 1-5/16 x 1.29" width)

1шт.

18

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

19

A51904

NUT

NUT - conn. rod bolt

2шт.

20

A44083

KIT

BUSHING SET - piston pin (Set of 4)

1шт.

24

A36500

SEAL

LINER SET - conn. rod brg. (Std.) (Set of 2]

4шт.

24

A36501

BEARING LINER

LINER SET - conn. rod brg. (-.002") (Set of 2)

4шт.

24

A36502

LINING

LINER SET - conn. rod brg. (-.010") (Set of 2)

4шт.

24

A36503

BEARING LINER

LINER SET - conn. rod brg. (-.020") (Set of 2)

4шт.

24

A36504

KIT

LINER SET - conn. rod brg. (-.030") (Set of 2)

4шт.

28

G11847

ROD

ASSY. - connecting (Order A144024), prior to eng. serial no. 2767997, Includes: Ref. 29 - 32

4шт.

29

NSS

NOT SOLD SEPARAT

ROD & CAP - (0.90" "I" Section width and 1.25" pin boss width)

1шт.

30

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 33) (1-7/32 x 1-5/16 x 1.24" width)

1шт.

31

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

32

A51904

NUT

NUT - cap bolt (Replaces A39286)

2шт.

33

G11953

BUSHING

SET - piston pin (Set of 4)

1шт.

36

A36500

SEAL

LINER SET - conn. rod brg. (Std.) (Set of 2)

4шт.

36

A36501

BEARING LINER

LINER SET - conn. rod brg. (-.002") (Set of 2)

4шт.

36

A36502

LINING

LINER SET - conn. rod brg. (-.010") (Set of 2)

4шт.

36

A36503

BEARING LINER

LINER SET - conn. rod brg. (-.020") (Set of 2)

4шт.

36

36504

LINER SET - conn. rod brg. (-.030") (Set of 2)

4шт.
