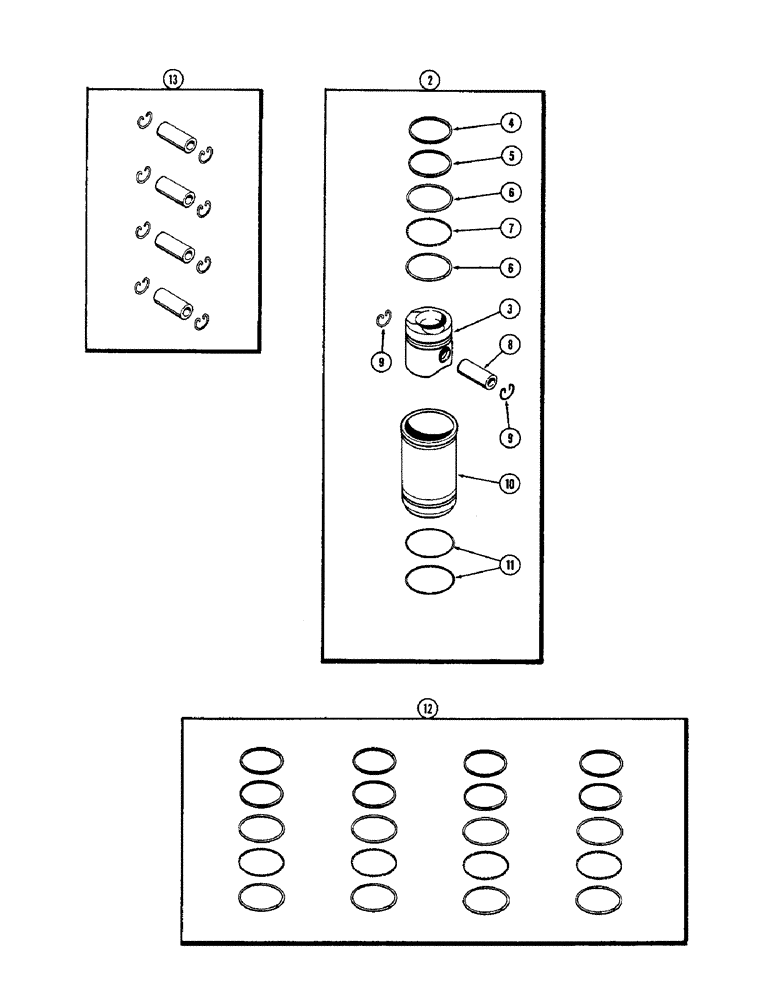

Запчасти Case 1700-SERIES (044) - PISTON ASSEMBLY, 188 DIESEL ENGINE (10) - ENGINE

A42813

PISTON

ASSY. - (Set of 4), Includes Ref: 2 - 11

1шт.

2

A42812

SLEEVE

PISTON ASSY. - (Set of 1), Includes Ref: 3 - 11

4шт.

3

A38424

PISTON

1шт.

4

G4819

RING

- compression, 1st groove (See Ref. 12)

1шт.

5

G4817

RING

- compression, 2nd groove (See Ref. 12)

1шт.

6

G47155

RAIL

- oil control, 3rd groove (See Ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control rail (See Ref. 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 13)

1шт.

9

G46702

RING, LOCKING

RING - piston pin retaining (See Ref. 13)

2шт.

10

A39006

SLEEVE

- piston (Cyl. liner)

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

2шт.

12

G37075

RING

SET - re-ring (Set of 4)

1шт.

13

A35771

KIT

PIN SET - piston (Set of 4 w/ret. rings)

1шт.
