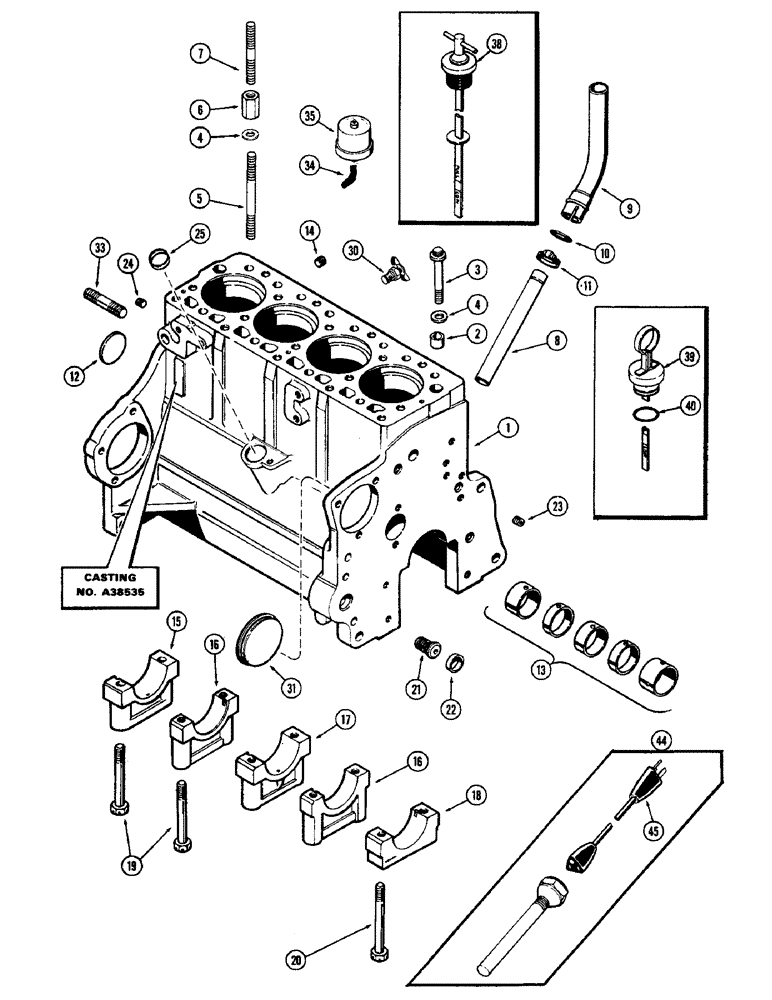

Запчасти Case 1700-SERIES (040) - CYLINDER BLOCK, 188 DIESEL ENGINE, USED WITH CYLINDER HEAD BOLTS 1ST USED ENG. SERIAL NO. 2711005 (10) - ENGINE

A44703

BLOCK

ASSY. - short (Casting #A38535) (Incl. crankshaft & brgs., connecting rods & brgs., camshaft, piston assy., oil pump & timing gears) (Replaces A42814), Includes Ref: 1 - 25

1шт.

1

A44702

BLOCK

ASSY. - stripped (Casting #A38535) (Replaces A41597), Includes Ref: 2 - 25

1шт.

2

G49608

RING

- dowel, head locating

2шт.

3

A39047

12 PT SCREW

BOLT - 1/2 x 3-1/2" N.C., 12 pt. hd.

4шт.

3

A39048

12 PT SCREW

BOLT - 1/2 x 5-1/8" N.C., 12 pt. hd.

11шт.

3

A39049

12 PT SCREW

BOLT - 1/2 x 5-5/8" N.C., 12 pt. hd.

2шт.

4

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- 1/2 x 7/8 x 1/8"

19шт.

5

A36902

STUD

- 1/2" N.C. x 5-5/8"

2шт.

6

A51114

NUT

- 1/2" N.C. x 3/8" N.C.

2шт.

7

A51271

STUD

- 3/8" N.C. x 3-1/2"

2шт.

8

A37149

TUBE

- oil filler & dipstick

1шт.

9

A37407

TUBE

EXTENSION - oil filler & dipstick

1шт.

10

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - 1-1/8 x 1-3/8 x 1/8"

1шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

1шт.

12

A39241

PLUG,Exp, 2.12" dia

- 2-1/8" exp.

1шт.

13

A42746

CAM

BUSHING SET - camshaft

1шт.

14

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - 3/8" P.T., sckt. hd.

1шт.

15

A51057

CAP

- main bearing, rear (Replaces A38385)

1шт.

16

A51055

CAP

- main bearing, intermed. (Replaces G2128)

2шт.

17

A51056

CAP

- main bearing, center (Replaces G2127)

1шт.

18

A51054

CAP

- main bearing, front (Replaces G2126)

1шт.

19

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- 1/2 x 4-1/2" N.C. hex.

8шт.

20

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- 1/2 x 5" N.C. hex.

2шт.

21

A153552

ADAPTER

- oil filter

1шт.

22

41-1016

PLUG,Cup, 1"

- adapter, 1" cup

1шт.

23

G49070

PLUG

- 1/4" P.T., drilled

1шт.

24

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

25

A38534

PLUG

- tach. drive hole (1-1/16" cup type)

1шт.

30

A23656

COCK, DRAIN

VALVE - drain, cylinder block

1шт.

31

A58750

PLUG,Cup, 3 1/4", Stainless

- (3-1/4" cup type)

1шт.

33

A51412

STUD

- 5/8" N.C. - N.F. x 1-3/4"

1шт.

34

221-401

ELBOW,45 Degree, 1/8"-27, NPT

- 90 degree street

1шт.

35

A35031

SENDER UNIT

UNIT - sending, oil pressure

1шт.

38

A39936

DIPSTICK

ASSY. - oil level (Turn-Tite) (1st used eng. no. 2718147), Includes Ref: 40

1шт.

39

A37148

DIPSTICK

ASSY. - oil level (Used to prior to eng. ser. no. 2718147), Includes Ref: 40

1шт.

40

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick seal (3/4 x 1 x 1/8")

2шт.

44

A40637

HEATER ASSY.

block, Includes Ref: 45

1шт.

45

A40477

ELECTRICAL WIRE

CORD - heater (7 ft. long), block

1шт.
