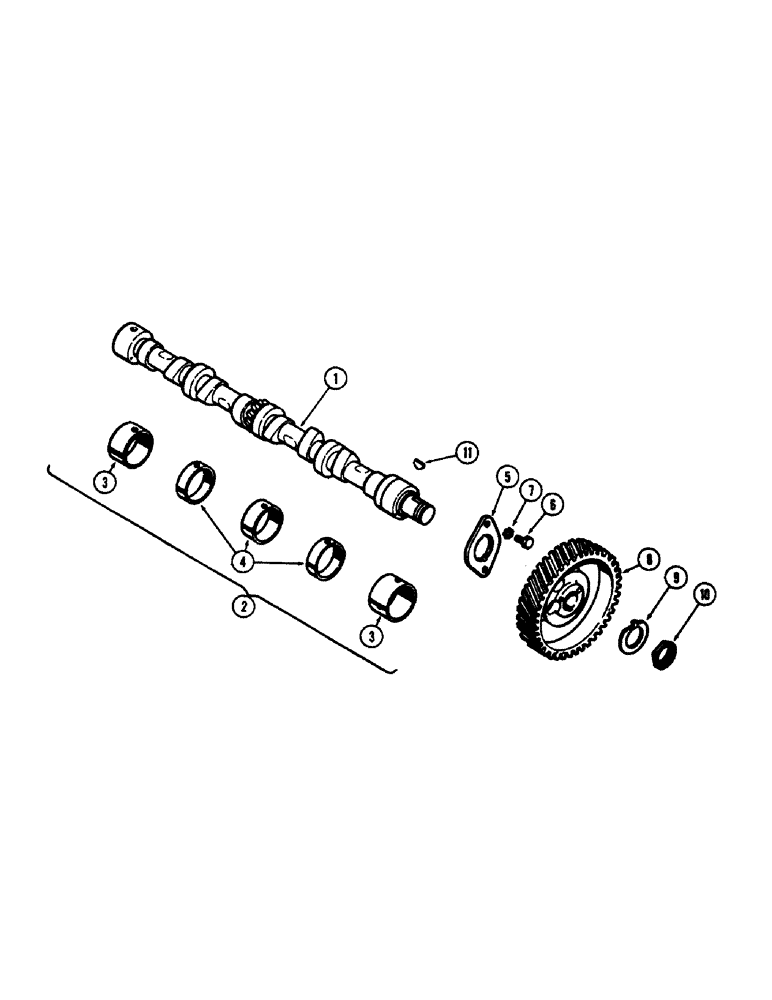

Запчасти Case 1700-SERIES (039A) - CAMSHAFT, 188 DIESEL ENGINE (10) - ENGINE

1

A39013

CAM

SHAFT

1шт.

2

A42746

CAM

BUSHING SET - camshaft, Includes Ref: 3 - 4

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - front & rear (1-7/32" wide)

2шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate & center (1/2" wide)

3шт.

5

A29290

PLATE

- thrust

1шт.

6

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate

2шт.

7

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

8

A38931

GEAR

- camshaft

1шт.

9

A29438

LOCK NUT

WASHER - lock (tab)

1шт.

10

A30063

NUT

- gear retaining

1шт.

11

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8"

1шт.
