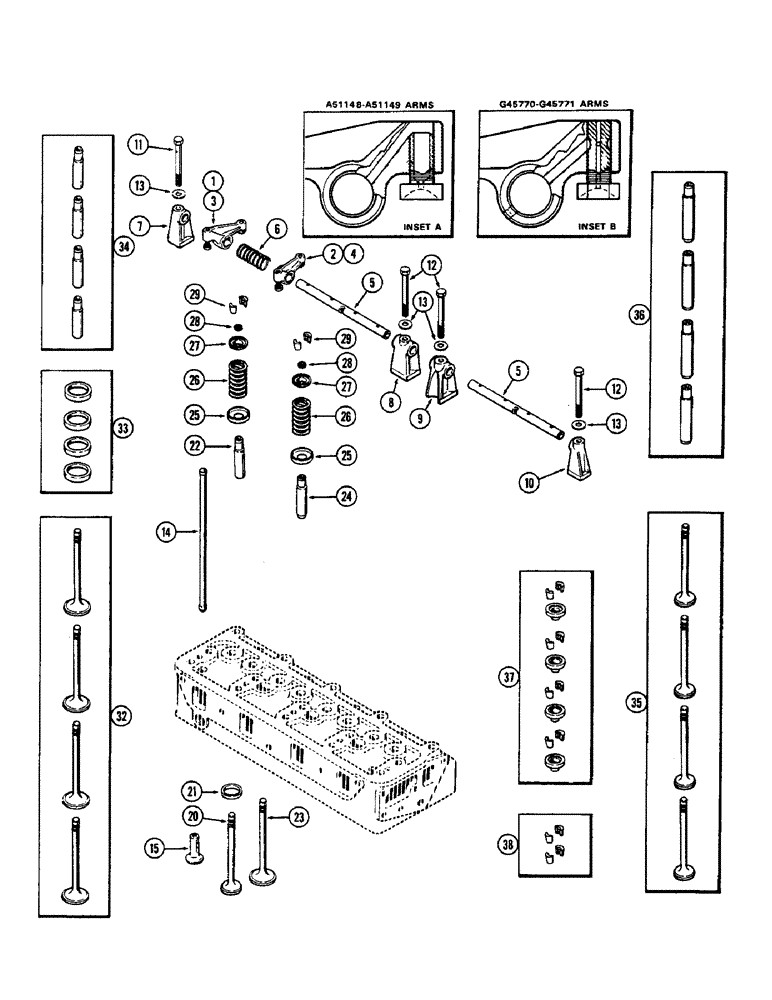

Запчасти Case 1700-SERIES (038) - VALVE MECHANISM, 188 DIESEL ENGINE (10) - ENGINE

1

A51149

ARM

ARM ASSY. - rocker, L.H. (Incl. screw) (See inset A) (1st used eng. ser. no. 2715764)

4шт.

2

A51148

ARM

ARM ASSY. - rocker, R.H. (Incl. screw) (See inset A) (1st used eng. ser. no. 2715764)

4шт.

3

G45771

ARM

ARM ASSY. - rocker, L.H. (Incl. screw) (See inset B) (Used prior to eng. ser. no. 2715764)

4шт.

4

G45770

ARM

ARM ASSY. - rocker, R.H. (Incl. screw) (See inset B) (Used prior to eng. ser. no. 2715764)

4шт.

5

A38181

SHAFT

SHAFT - rocker arm

2шт.

6

G48501

SPRING

SPRING - rocker arm shaft

4шт.

7

A36615

BRACKET

BRACKET - rocker shaft, rear

1шт.

8

G2101

BRACKET

BRACKET - rocker shaft, center

1шт.

9

A51084

BRACKET

BRACKET - rocker shaft, intermediate (Replaces G2102)

2шт.

10

G2100

BRACKET

BRACKET - rocker shaft, front

1шт.

11

G49067

BOLT

BOLT - rear brkt., 3/8 x 3-1/2" N.C. hex.

1шт.

12

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

BOLT - bracket, 3/8 x 2-1/2" N.C. hex.

4шт.

13

A30058

WASHER

WASHER - brkt. bolt, 13/32 x 7/8 x 1/8"

5шт.

14

G47079

ROD

ROD - push

8шт.

15

G47077

TAPPET

LIFTER - push rod

8шт.

20

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 32)

4шт.

21

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order Ref. 33)

4шт.

22

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order Ref. 34)

4шт.

23

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 35)

4шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order Ref. 36)

4шт.

25

G49065

SEAT

SEAT - valve spring

8шт.

26

A30025

SPRING

SPRING - valve

8шт.

27

NSS

NOT SOLD SEPARAT

RETAINER - valve spring (Order Ref. 37)

8шт.

28

G46851

SEAL

SEAL - valve stem (Rubber)

8шт.

29

NSS

NOT SOLD SEPARAT

LOCK - retainer (Order Ref. 38)

16шт.

32

A41727

VALVE

VALVE SET - exhaust (Set of 4)

1шт.

33

A43048

KIT

INSERT SET - exhaust valve seat (Set of 4) (Replaces G11986)

1шт.

34

G11946

GUIDE

GUIDE SET - exhaust valve (Set of 4)

1шт.

35

A41726

VALVE

VALVE SET - intake (Set of 4)

1шт.

36

G11945

GUIDE

GUIDE SET - intake valve (Set of 4)

1шт.

37

G11927

RETAINER

RETAINER SET - valve spring (Set of 4 w/locks)

2шт.

38

G11929

LOCK

LOCK SET - retainer (Set of 4)

4шт.
