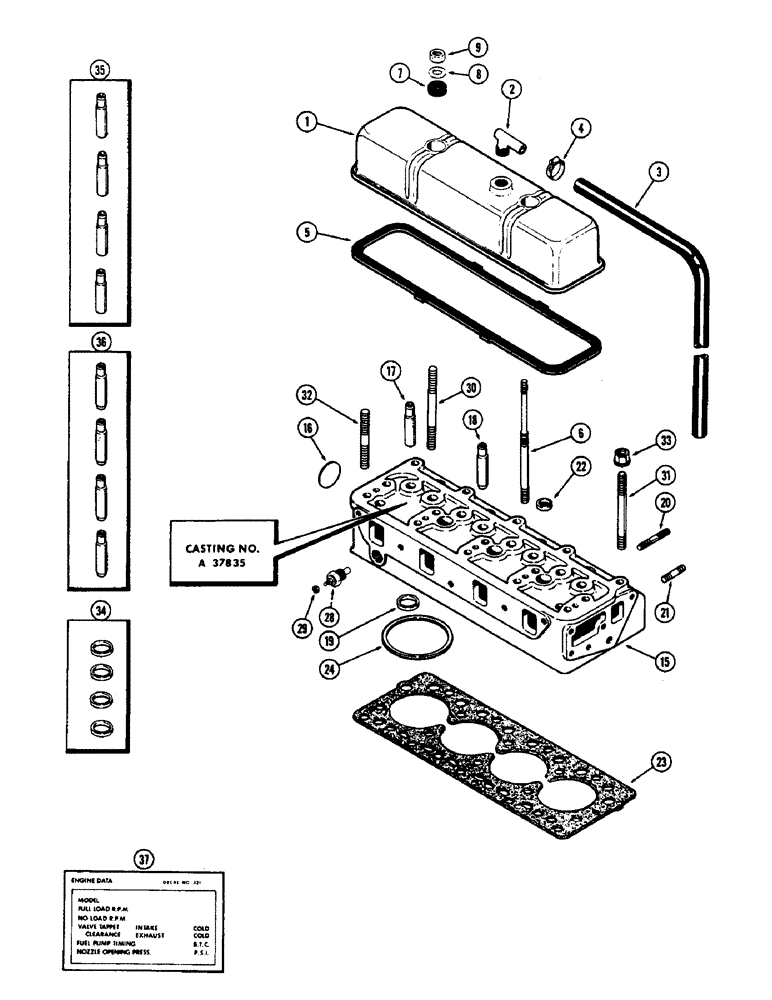

Запчасти Case 1700-SERIES (037A) - CYLINDER HEAD AND COVER, 188 DIESEL ENGINE, USED W/ CYL. HEAD STUDS USED PRIOR TO ENG. S/N 2711005 (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A36815
COVER
- cylinder head
1шт.
2
A9155
90 ELBOW
- breather tube
1шт.
3
A39570
HOSE
- breather
1шт.
4
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - tube to elbow, 9/16" to 1-1/16"
1шт.
5
A43030
GASKET,3.05mm Thk
- cover to cylinder head (Replaces G46866)
1шт.
6
A36903
STUD
- cover to cylinder head
2шт.
7
G46867
GROMMET
- rubber
2шт.
8
G49400
WASHER
- cover nut
2шт.
9
25-106
NUT,3/8"-16, G5
- cover retaining, 3/8" N.C. hex.
2шт.
15
A37856
CYLINDER HEAD
HEAD ASSY. - cylinder (Casting No. A37835), Includes Ref: 16 - 22
1шт.
16
A39242
PLUG
- rear, 1-3/4" exp.
1шт.
17
NSS
NOT SOLD SEPARAT
GUIDE - exhaust valve (Order Ref. 35) (3-1/8" long)
4шт.
18
NSS
NOT SOLD SEPARAT
GUIDE - intake valve (Order Ref. 36) (3-1/4" long)
4шт.
19
NSS
NOT SOLD SEPARAT
INSERT - exhaust valve seat (Order Ref. 34)
4шт.
20
A39129
STUD
- manifold clamp, 3/8" N.C. x 2-1/16"
6шт.
21
A29431
STUD
- manifold flange, 3/8" N.C. x 1-3/4"
4шт.
22
41-1016
PLUG,Cup, 1"
- cylinder head, top (1" cup type)
3шт.
23
A38640
- cyl. head to block (Order A39279) (See Figure 036)
1шт.
24
A38639
RING
- fire (Std.) (w/orange mark)
4шт.
24
A38651
RING
- fire (Oversize) (Black)
4шт.
28
A21462
SENDER UNIT
SENDER - engine temperature
1шт.
29
193-1000
NUT,Keps, w/LW,#10-32
- sender terminal, #10 N.F. hex.
1шт.
30
A36902
STUD
- head to block, 1/2" N.C. x 5-5/8"
11шт.
31
A36905
STUD
- head to block, 1/2" N.C. x 6-1/8"
2шт.
32
A36904
STUD
- head to block, 1/2" N.C. x 4"
4шт.
33
A37030
FLANGE NUT
- head studs, 1/2" N.C. flanged
19шт.
34
A43048
KIT
INSERT SET - exhaust valve seat (Set of 4) (Replaces G11986)
1шт.
35
G11946
GUIDE
SET - exhaust valve (Set of 4)
1шт.
36
G11945
GUIDE
SET - intake valve (Set of 4)
1шт.
37
321-2113
DECAL - engine data (On cover), Replaces 321-1375
1шт.
Выбрано товаров: 30
