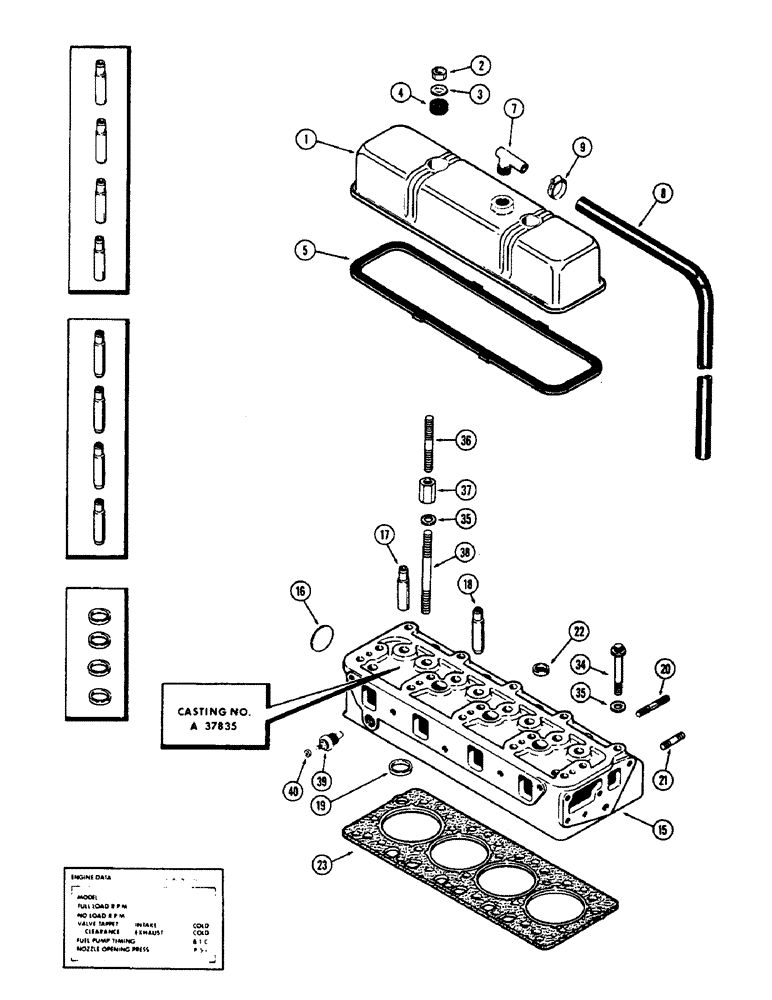

Запчасти Case 1700-SERIES (036) - CYLINDER HEAD AND COVER, 188 DIESEL ENGINE, USED W/ CYLINDER HEAD BOLTS 1ST USED ENG. S/N 2711005 (10) - ENGINE

1

A36815

COVER

- cylinder head

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

3

G49400

WASHER

- 13/32 x 1-5/32 x 1/8"

2шт.

4

G46867

GROMMET

- rubber

2шт.

5

A43030

GASKET,3.05mm Thk

- cover to head (Replaces G46866)

1шт.

7

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

8

A39570

HOSE

- breather

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

1шт.

15

A37856

CYLINDER HEAD

HEAD ASSY. - cylinder (Casting #A37835), Includes: Ref. 16 - 22

1шт.

For engines with aluminum manifold see instruction card 9-75475 attached to head.

1шт.

16

A39242

PLUG

- rear, 1-3/4" exp.

1шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (Order ref. 28)

4шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (Order ref. 29)

4шт.

19

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 27)

4шт.

20

A39129

STUD

- manifold clamps (3/8" N.C. x 2-1/16")

6шт.

21

A29431

STUD

- manifold ends (3/8" N.C. x 1-3/4")

4шт.

22

41-1016

PLUG,Cup, 1"

- 1" cup

3шт.

23

A39279

GASKET

- cylinder head

1шт.

27

A43048

KIT

INSERT KIT - exhaust valve seat (Set of 4) (Replaces G11986)

1шт.

28

G11946

GUIDE

KIT - exhaust valve stem (Set of 4)

1шт.

29

G11945

GUIDE

KIT - intake valve stem (Set of 4)

1шт.

34

A39047

12 PT SCREW

BOLT - 1/2 x 3-1/2" N.C., 12 pt. hd.

4шт.

34

A39048

12 PT SCREW

BOLT - 1/2 x 5-1/8" N.C., 12 pt. hd.

11шт.

34

A39049

12 PT SCREW

BOLT - 1/2 x 5-5/8" N.C., 12 pt. hd.

2шт.

35

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- 1/2 x 7/8 x 1/8"

19шт.

36

A36902

STUD

- 1/2" N.C. x 5-5/8"

2шт.

37

A51114

NUT

- 1/2" N.C. x 3/8" N.C. hex. - 1-5/16" high

2шт.

38

A51271

STUD

- 3/8" N.C. x 3-1/2"

2шт.

39

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

40

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex.

1шт.

42

321-2113

DECAL - engine data (2600 P.S.I.) (Used prior to eng. ser. no. 2734508 w/A37836 nozzle)

1шт.

42

321-2558

DECAL - engine data (3000 P.S.I.) (1st used eng. ser. no. 2734508 w/A51234 nozzle)

1шт.
