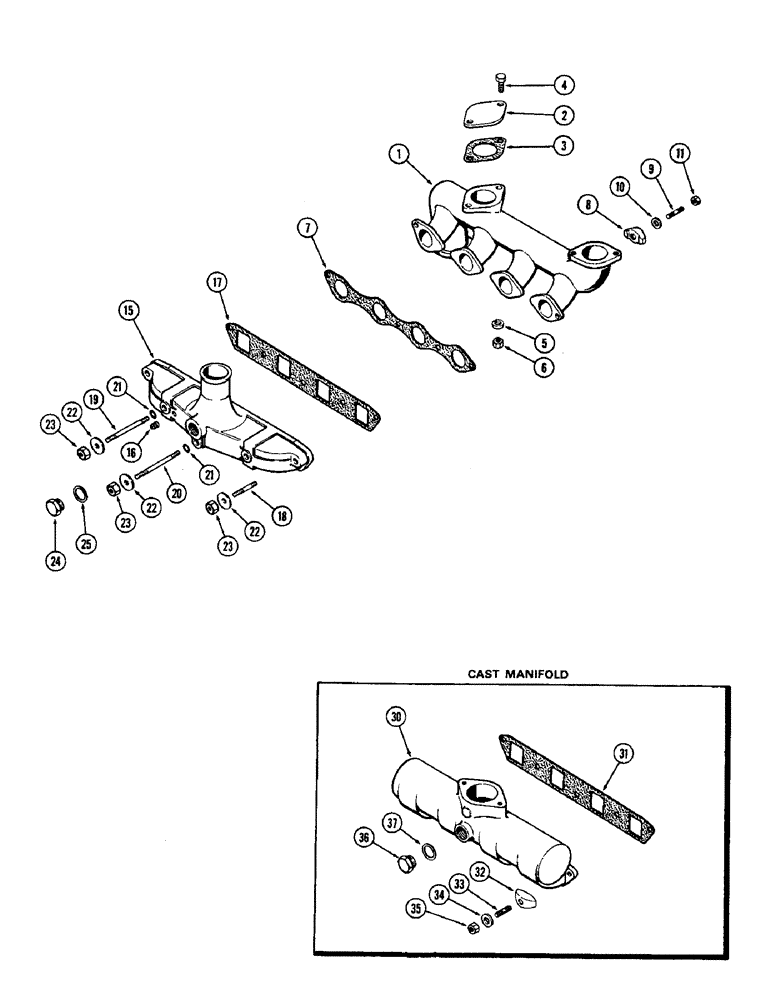

Запчасти Case 1700-SERIES (034) - EXHAUST MANIFOLD, 188 DIESEL ENGINE (10) - ENGINE

1

A39233

MANIFOLD

ASSY. - exhaust, Includes Ref: 2 - 6

1шт.

2

A38188

PLATE

COVER - exhaust opening

2шт.

3

G46853

MANIFOLD GASKET

-, Serial Range: cover-manifold

2шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

5

195-25

WASHER,3/8"

- cover bolt (7/16 x 13/16 x 1/16")

4шт.

6

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex., Seez-Pruf

4шт.

7

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

8

A35028

CLAMP

- exhaust manifold

3шт.

9

A29431

STUD

- manifold ends (3/8" N.C. x 1-3/4")

2шт.

9

A39129

STUD

- manifold clamp (3/8" N.C. x 2-1/16")

3шт.

10

92-6

LOCK WASHER,3/8"

5шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

5шт.

15

A51876

MANIFOLD

ASSY. - intake, aluminum, 1st used engine ser. no. 2740842, Includes Ref: 16

1шт.

16

221-11

PLUG,Sq Hd, 1/8"-27

- (1/8" P.T., sq. hd.), intake manifold, aluminum, 1st used engine ser. no. 2740842

1шт.

17

G46871

GASKET

- intake manifold, aluminum, 1st used engine ser. no. 2740842

1шт.

18

A35175

STUD

- manifold end holes (3/8" N.C. x 2-7/16"), intake, aluminum, 1st used engine ser. no. 2740842

2шт.

19

A51499

STUD

- manifold intermediate holes (3/8" N.C. x 4-5/16"), intake, aluminum, 1st used engine ser. no. 2740842

2шт.

20

A51500

STUD

- manifold center holes (3/8" N.C. x 5-5/16"), intake, aluminum, 1st used engine ser. no. 2740842

1шт.

21

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - center & inter. studs (3/8 x 9/16 x 1/16"), intake manifold, aluminum, 1st used engine ser. no. 2740842

3шт.

22

D41740

WASHER

- studs (3/8 x 1 x 1/8"), intake manifold, aluminum, 1st used engine ser. no. 2740842

5шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., intake manifold, aluminum, 1st used engine ser. no. 2740842

5шт.

24

A20917

PLUG

- heater hole, intake manifold, aluminum, 1st used engine ser. no. 2740842

1шт.

25

A20916

MANIFOLD GASKET

GASKET - plug, intake manifold, aluminum, 1st used engine ser. no. 2740842

1шт.

30

A35782

MANIFOLD

- intake, cast iron, used prior to engine ser. no. 2740842

1шт.

31

G46871

GASKET

- intake manifold, cast iron, used prior to engine ser. no. 2740842

1шт.

32

A35028

CLAMP

- intake manifold, cast iron, used prior to engine ser. no. 2740842

2шт.

33

A29431

STUD

- manifold ends (3/8" N.C. x 1-3/4"), cast iron, used prior to engine ser. no. 2740842

2шт.

33

A39129

STUD

- manifold clamps (3/8" N.C. x 2-1/16"), cast iron, used prior to engine ser. no. 2740842

3шт.

34

92-6

LOCK WASHER,3/8"

cast iron, used prior to engine ser. no. 2740842 3/8"

5шт.

35

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Seez-Pruf), cast iron, used prior to engine ser. no. 2740842

5шт.

36

A20917

PLUG

- heater hole, cast iron, used prior to engine ser. no. 2740842

1шт.

37

A20916

MANIFOLD GASKET

GASKET - plug, cast iron, used prior to engine ser. no. 2740842

1шт.
