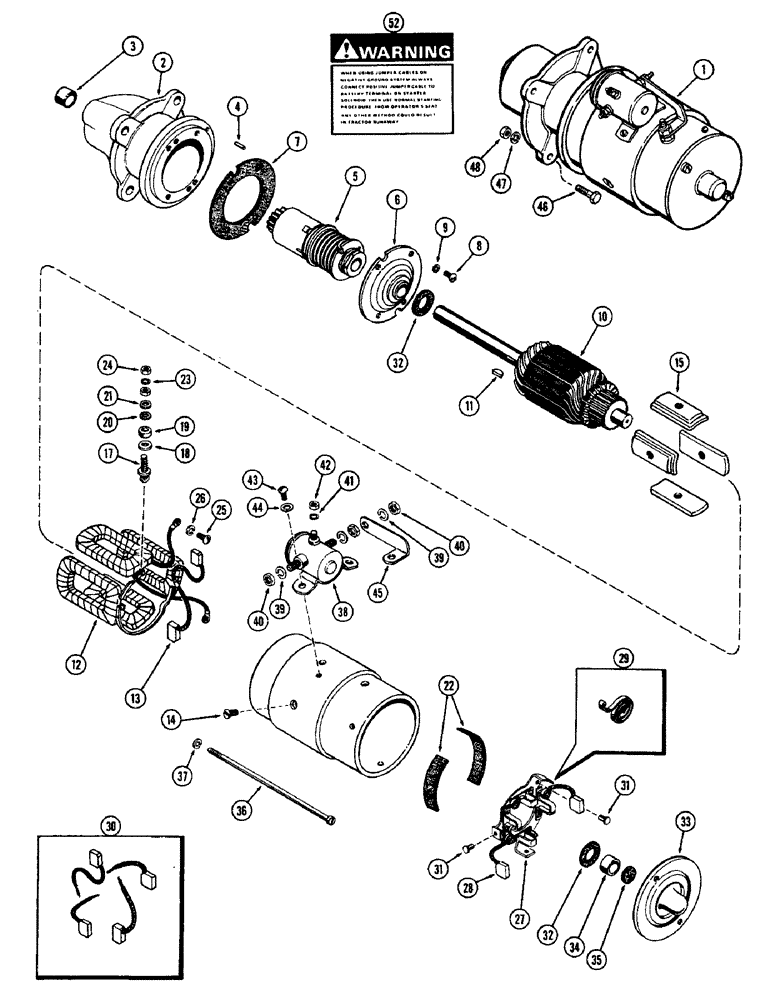

Запчасти Case 1700-SERIES (032) - A51910 STARTER, 148B SPARK IGNITION ENGINE, WITH STAINLESS STEEL ARMATURE SHAFT (10) - ENGINE

1

A51910

STARTER MOTOR

STARTER ASSY. - (Replaces A39142), Includes Ref: 2 - 45

1шт.

2

A25610

HOUSING

HOUSING ASSY. - drive end, Includes Ref: 3 - 4

1шт.

3

A25611

BEARING

BEARING - armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - housing locating

1шт.

5

A44997

DRIVE

DRIVE ASSY. - starter

1шт.

6

A43257

BUSHING

PLATE ASSY. - intermediate bearing

1шт.

7

G46910

GASKET

GASKET - bearing plate

1шт.

8

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - plate to hsg., #10-32 x 7/16" rd. hd.

4шт.

9

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

10

A44996

ARMATURE

SPARE PART ARMATURE

1шт.

11

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, , Armature shaft #6, 5/32" x 5/8", HT

1шт.

12

A25604

PACKAGE

COIL ASSY. - field, Includes Ref: 13

1шт.

13

NSS

NOT SOLD SEPARAT

BRUSH - (Order A25603 brush set) (See Ref. 030)

2шт.

14

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

15

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

A40278

KIT

TERMINAL KIT - field stud, Includes Ref: 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

STUD - field terminal

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - insulating, inner

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - insulating, terminal stud (In frame)

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - insulating, outer

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - terminal stud, plain

1шт.

22

NSS

NOT SOLD SEPARAT

INSULATION - field coil

2шт.

23

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

25

173-74

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SCREW - #8-32 x 5/16" rd. hd.

1шт.

26

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

27

A25612

PLATE

PLATE ASSY. - brush carrier, Includes Ref: 28 - 29

1шт.

28

NSS

NOT SOLD SEPARAT

BRUSH - (Order A25603)

2шт.

29

A40275

SPRING

SPRING KIT - brush (Set of 4)

1шт.

30

A25603

BRUSH SET

BRUSH SET - (Set of 4)

1шт.

31

NSS

NOT SOLD SEPARAT

RIVET - brush plate

3шт.

A40277

KIT

THRUST WASHER KIT - (Use as required), Includes Ref: 32

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - brg. plate & comm. end (1/32")

4шт.

32

NSS

NOT SOLD SEPARAT

WASHER - comm. end (3/64")

2шт.

33

A40274

HEAD

HEAD ASSY. - commutator end, Includes Ref: 34 - 35

1шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - armature shaft

1шт.

35

NSS

NOT SOLD SEPARAT

FELT - oiler

1шт.

36

A25601

SCREW

BOLT - thru

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , thru bolt 1/4"

2шт.

38

A43415

SOLENOID

SOLENOID ASSY - starter, Includes Ref: 39 - 42

1шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

40

129-122

NUT,5/16"-24, G5

NUT, 5/16"-24, G5

3шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

42

129-37

NUT,#10-32

NUT, #10-32

1шт.

43

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

SCREW - solenoid, #10-32 x 1/4" rd. hd.

2шт.

44

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

45

G46297

CONNECTOR, ELEC

CONNECTOR CONNECTOR -, Serial Range: solenoid-field

1шт.

46

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , Starter mtg. Hex, 3/8"-16 x 2", G5

3шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

48

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

52

321-2788

DECAL

DECAL - warning

1шт.
