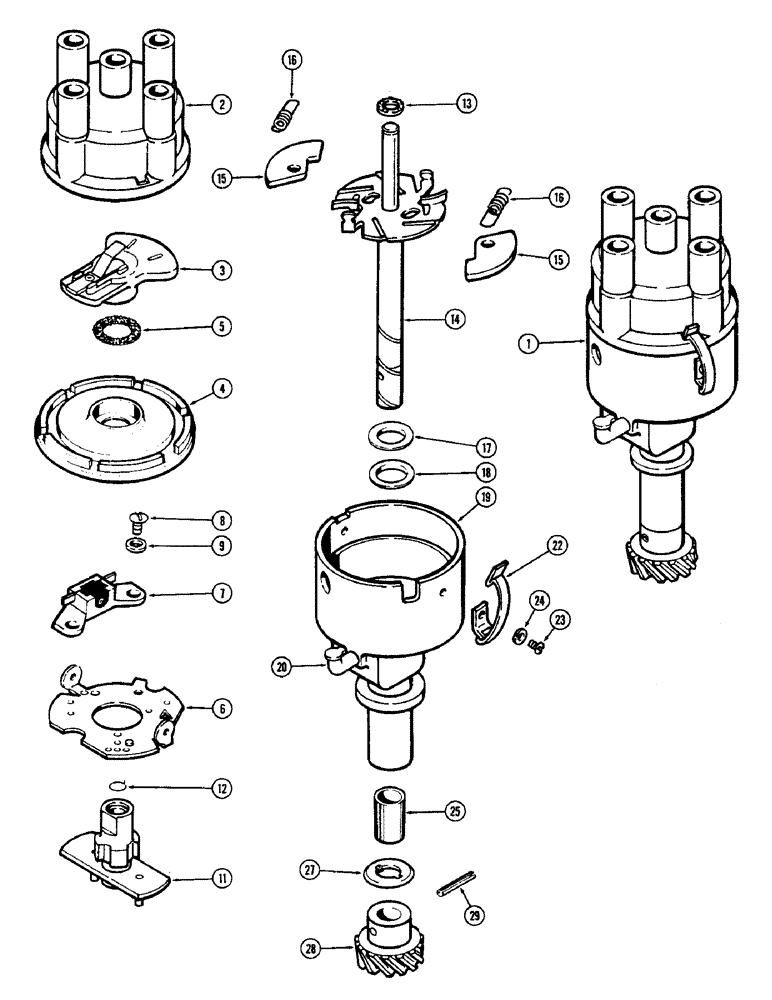

Запчасти Case 1700-SERIES (031A) - A51480 DISTRIBUTOR, 148B SPARK IGNITION ENGINE (10) - ENGINE

1

A51480

DISTRIBUTOR ASSY. - (Prestolite #IDD-4104), Includes Ref: 2 - 29

1шт.

2

A44429

CAP

- distributor

1шт.

3

A44430

ROTOR

- distributor

1шт.

4

A24763

PLATE

ASSY. - seal, Includes Ref: 5

1шт.

5

A24764

WASHER

SEAL - plate, felt

1шт.

6

A44364

PLATE - base

1шт.

7

A42973

SENSOR

ASSY. - ignition

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - sensor

2шт.

9

NSS

NOT SOLD SEPARAT

WASHER - sensor screw

2шт.

A44365

SHAFT

ASSY. - distributor, Includes Ref: 11 - 16

1шт.

11

NSS

NOT SOLD SEPARAT

CAM - distributor

1шт.

12

A24756

RING - cam retaining

1шт.

13

A40322

KIT

WASHER - sealing (Replaces A25197)

1шт.

Part of P/N A44366 Bearing Kit

1шт.

14

NSS

NOT SOLD SEPARAT

SHAFT - distributor

1шт.

15

NSS

NOT SOLD SEPARAT

WEIGHT - governor

2шт.

16

NSS

NOT SOLD SEPARAT

SPRING - governor

2шт.

17

A24752

WASHER

- thrust, inner

1шт.

Part of P/N A44366 Bearing Kit

1шт.

18

A24753

WASHER

- thrust, outer

1шт.

Part of P/N A44366 Bearing Kit

1шт.

19

NSS

NOT SOLD SEPARAT

BASE - distributor

1шт.

20

A24887

OILER - base

1шт.

A40329

SPRING

CLAMP & HINGE ASSY. - cap (Set of 2), Includes Ref: 22 - 24

1шт.

22

A24760

CLAMP

& HINGE - (Order A40329)

2шт.

23

NSS

NOT SOLD SEPARAT

SCREW - hinge & base plate

2шт.

24

NSS

NOT SOLD SEPARAT

WASHER - hinge screw

2шт.

25

24766

BUSHING - base

1шт.

Part of P/N A44366 Bearing Kit

1шт.

A40323

GEAR

KIT - distributor drive, Includes Ref: 27 - 29

1шт.

27

A25200

WASHER

- thrust, drive gear

1шт.

Part of P/N A44366 Bearing Kit

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

29

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, 1/8" x 11/16", Slotted

1шт.

Part of P/N A44366 Bearing Kit

1шт.

A44366

BEARING KIT, Includes: Ref. 13, 17, 18, 25, 27 and 29

1шт.
