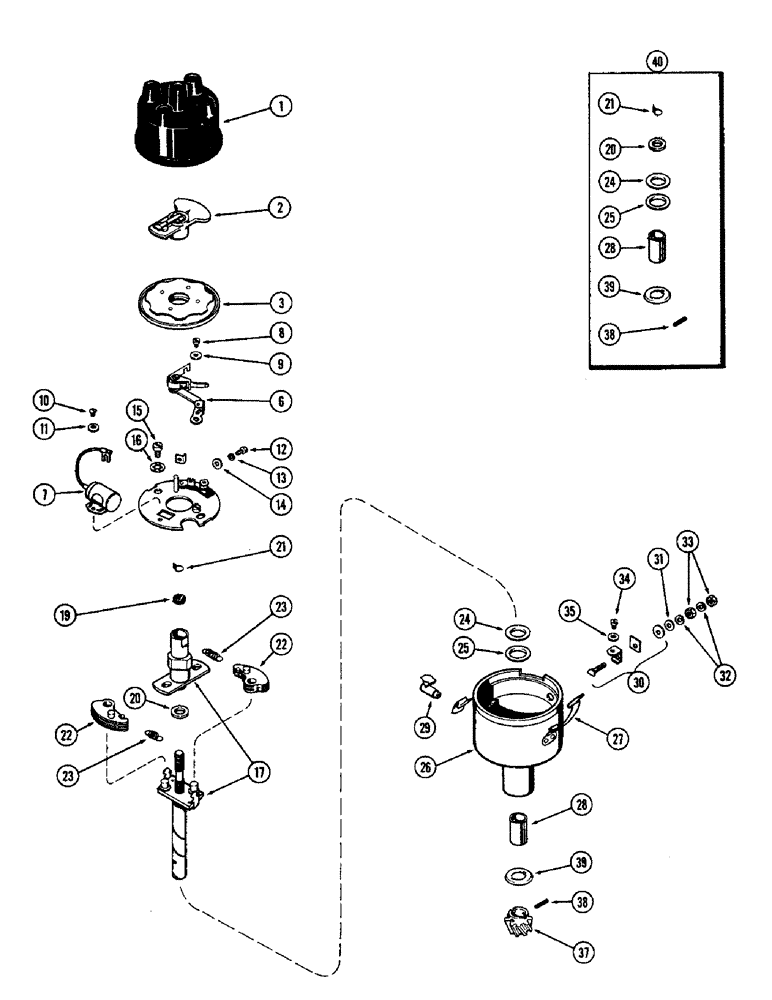

Запчасти Case 1700-SERIES (030) - A38970 DISTRIBUTOR, 148B SPARK IGNITION ENGINE (10) - ENGINE

A38970

DISTRIBUTOR

ASSY. - (Prestolite #IAD-6003-2K), Includes Ref: 1 - 39

1шт.

1

A8368

CAP

ASSY. - w/carbon brush & spring

1шт.

2

A8369

ROTOR

- contact

1шт.

3

A25194

PLATE

COVER ASSY. - breaker plate, w/dust seal

1шт.

4

A25196

PLATE

ASSY. - breaker, Includes Ref: 6 - 14

1шт.

A40929

KIT

POINT & CONDENSER SET, Includes Ref: 6 - 7

1шт.

6

NSS

NOT SOLD SEPARAT

POINT SET

1шт.

7

NSS

NOT SOLD SEPARAT

CONDENSER

1шт.

8

177-72

SCREW points, no.8-32 x 3/16" fill. HD

1шт.

9

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

10

177-56

SCREW condenser, no. 6-40 x 3/16" fill. HD

1шт.

11

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

12

171-216

SCREW,Sl Flat Hd, #6 - 32 x 5/16"

- clamp (#6-32 x 5/16" flat hd.)

1шт.

13

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

14

195-6

WASHER,#6

- flat, #6

1шт.

15

177-94

SCREW,Sl Fil Hd, #10 - 32 x 5/16"

- breaker plate (#10-32 x 5/16" fill. hd.)

2шт.

16

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

17

A42817

CAMSHAFT

ASSY., Includes Ref: 19 - 23

1шт.

A42818

KIT

WICK & WASHER KIT, Includes Ref: 19 - 20

1шт.

19

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - cam spacer

1шт.

Part of P/N A40322 Bearing Kit

1шт.

21

A25180

RING, SNAP

RING - oil wick & cam retainer

1шт.

Part of P/N A40322 Bearing Kit

1шт.

22

A25198

WEIGHT

- governor

2шт.

23

A25208

SET

SPRING SET - governor weight (Set of 2)

1шт.

24

A24752

WASHER

- thrust, inner

1шт.

Part of P/N A40322 Bearing Kit

1шт.

25

A24753

WASHER

- thrust, outer

1шт.

Part of P/N A40322 Bearing Kit

1шт.

26

NSS

NOT SOLD SEPARAT

BASE - distributor body

1шт.

27

A42815

PACKAGE

CLAMP ASSY. - (Pck. of 2)

1шт.

28

NSS

NOT SOLD SEPARAT

BEARING - body

1шт.

Part of P/N A40322 Bearing Kit

1шт.

29

A24887

OILER - camshaft bearing

1шт.

30

A45242

BUSHING

TERMINAL STUD KIT - (Replaces A40321)

1шт.

31

195-5

WASHER

- term. stud, #10 flat

1шт.

32

92-3

LOCK WASHER,#10

WASHER, LOCK, , Terminal stud #10

2шт.

33

129-27

NUT,Hex, #10 - 32

- term. stud, hex. #10-32

2шт.

34

174-56

SCREW - connector, #6-32 x 3/16" rd. hd.

1шт.

35

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

A40323

GEAR

KIT - distributor drive, Includes Ref: 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

38

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, , Gear to shaft 1/8" x 11/16", Slotted

1шт.

Part of P/N A40322 Bearing Kit

1шт.

39

A25200

WASHER

- thrust, drive gear

1шт.

Part of P/N A40322 Bearing Kit

1шт.

40

A40322

KIT

BEARING KIT, Includes: Ref. 20, 21, 24, 25, 28, 38 and 39

1шт.
