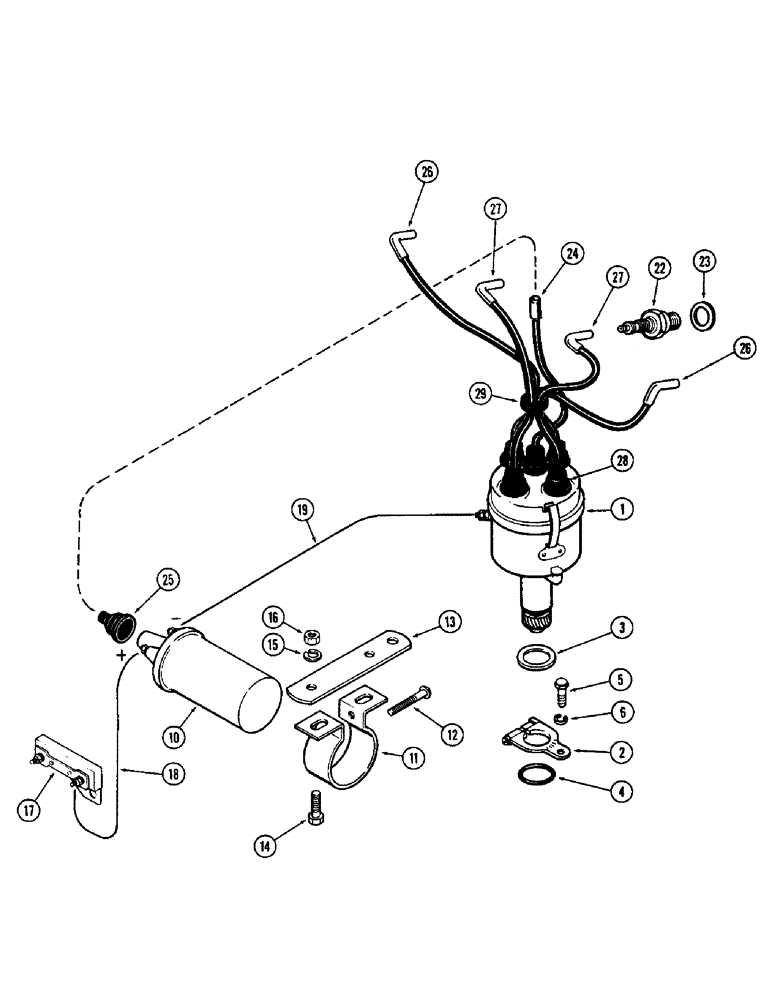

Запчасти Case 1700-SERIES (029A) - STANDARD IGNITION SYSTEM, 148B SPARK IGNITION ENGINE (10) - ENGINE

1

A38970

DISTRIBUTOR

ASSY. - (See Figure 030)

1шт.

2

A29989

ARM

ASSY. - advance

1шт.

3

A30080

THRUST WASHER

- thrust, advance arm

1шт.

4

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - dist. to block (1-1/16 x 1-5/16 x 1/8")

1шт.

5

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

10

A40778

COIL

ASSY. - ignition (12 volt)

1шт.

11

G46106

BRACKET

- coil mounting, Includes Ref: 12

1шт.

12

187-540

SCREW - coil brkt. (#10 x 1-1/2" self-tapping)

1шт.

13

G11705

BRACKET

STRAP - coil support

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Brkt. to strap

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

A24504

RESISTOR

- ballast

1шт.

18

A38832

ELECTRICAL WIRE

WIRE - resistor to coil (Lo-tension) (7" long)

1шт.

19

G13085

ELECTRICAL WIRE

WIRE - coil to dist. (Lo-tension) (12" long)

1шт.

22

G44840

SPARK PLUG

PLUG ASSY. - spark, Includes Ref: 23

4шт.

23

G46839

GASKET

- spark plug

1шт.

24

A62857

ELECTRICAL WIRE

WIRE - coil to dist. (Hi-tension) (12-1/2" long)

1шт.

25

G46803

BOOT

NIPPLE - hi-tension wire (At coil)

1шт.

26

A39186

CABLE

WIRE - dist. to spark plugs (Hi-tension) (12" long)

2шт.

27

A39187

CABLE

WIRE - dist. to spark plugs (Hi-tension) (8-3/4" long)

2шт.

28

A29338

COVER

NIPPLE - hi-tension wire (At distributor)

5шт.

29

A30109

WASHER

RING - tie, hi-tension wires

1шт.
