Запчасти Case 1700-SERIES (028) - CAPACITIVE DISHCHARGE IGNITION SYSTEM, 148B SPARK IGNITION ENGINE (10) - ENGINE

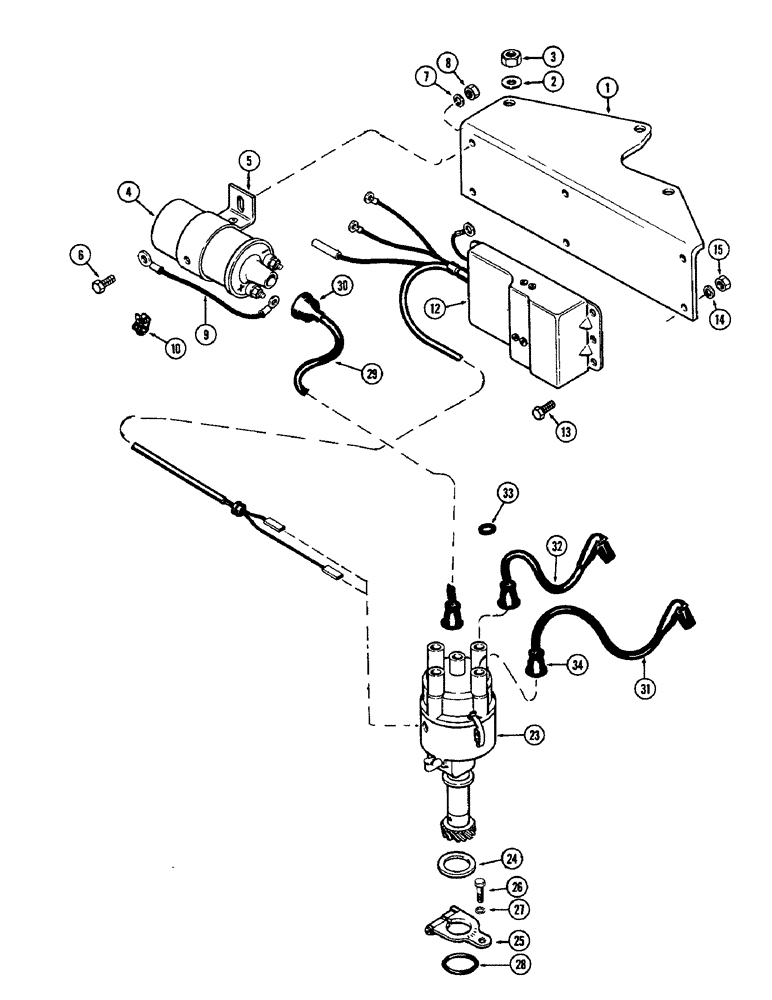

Схема запчастей Case 1700-SERIES - (028) - CAPACITIVE DISHCHARGE IGNITION SYSTEM, 148B SPARK IGNITION ENGINE (10) - ENGINE

Артикул

Название

Примечание

Количество

1

A51042

BRACKET - coil and amplifier mounting

1шт.

2

A29277

WASHER

- 13/32 x 1 x 1/8"

3шт.

3

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

4

A40778

COIL

- ignition (Prestolite #200690)

1шт.

5

G46106

BRACKET

CLAMP - coil

1шт.

6

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

A31060

ELECTRICAL WIRE

WIRE - coil ground

1шт.

10

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - wires

1шт.

A51043

AMPLIFIER

UNIT - amplifier-capacitor (Prestolite #IDG-3001D) (Not shown) (Order A51481)

1шт.

12

A51481

AMPLIFIER

UNIT - amplifier-capacitor (Prestolite #IDG-3001E)

1шт.

13

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

25-104

NUT,1/4"-20, G5

4шт.

23

A51480

DISTRIBUTOR ASSY. - (Eltra #IDD-4104) (See Figure 031A)

1шт.

Whenever distributor cap, plug wires or coil wire are removed or replaced use B17400 cleaner and B17401 compound to assemble and B17399 sealcoat spray to complete installation.

1шт.

24

A30080

THRUST WASHER

- thrust, advance arm

1шт.

25

A29989

ARM

ASSY. - advance

1шт.

26

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

28

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - 1-1/16 x 1-5/16 x 1/8"

1шт.

29

A62857

ELECTRICAL WIRE

WIRE -, Serial Range: distributor-coil

1шт.

Whenever distributor cap, plug wires or coil wire are removed or replaced use B17400 cleaner and B17401 compound to assemble and B17399 sealcoat spray to complete installation.

1шт.

30

G46803

BOOT

NIPPLE - coil wire

1шт.

31

A51509

CABLE

WIRE - spark plug, #1 & 4 cylinders (12" lg.)

2шт.

Whenever distributor cap, plug wires or coil wire are removed or replaced use B17400 cleaner and B17401 compound to assemble and B17399 sealcoat spray to complete installation.

1шт.

32

A51510

CABLE

WIRE - spark plug, #2 & 3 cyl. (8-3/4" lg.)

2шт.

Whenever distributor cap, plug wires or coil wire are removed or replaced use B17400 cleaner and B17401 compound to assemble and B17399 sealcoat spray to complete installation.

1шт.

33

A30109

WASHER

HOLDER - wires

1шт.

34

A29338

COVER

NIPPLE - spark plug & coil wires

5шт.

B17399

ADHESIVE

SPRAY - sealcoat (16 oz. can)

1шт.

Whenever distributor cap, plug wires or coil wire are removed or replaced use B17400 cleaner and B17401 compound to assemble and B17399 sealcoat spray to complete installation.

1шт.

B17400

CLEANER

- electrical (16 oz. can)

1шт.

Whenever distributor cap, plug wires or coil wire are removed or replaced use B17400 cleaner and B17401 compound to assemble and B17399 sealcoat spray to complete installation.

1шт.

B17401

COMPOUND - potting (8 oz. tube)

1шт.

Whenever distributor cap, plug wires or coil wire are removed or replaced use B17400 cleaner and B17401 compound to assemble and B17399 sealcoat spray to complete installation.

1шт.

Выбрано товаров: 37
