Запчасти Case 1700-SERIES (026) - A39040 CARBURETOR, 148B SPARK IGNITION ENGINE (10) - ENGINE

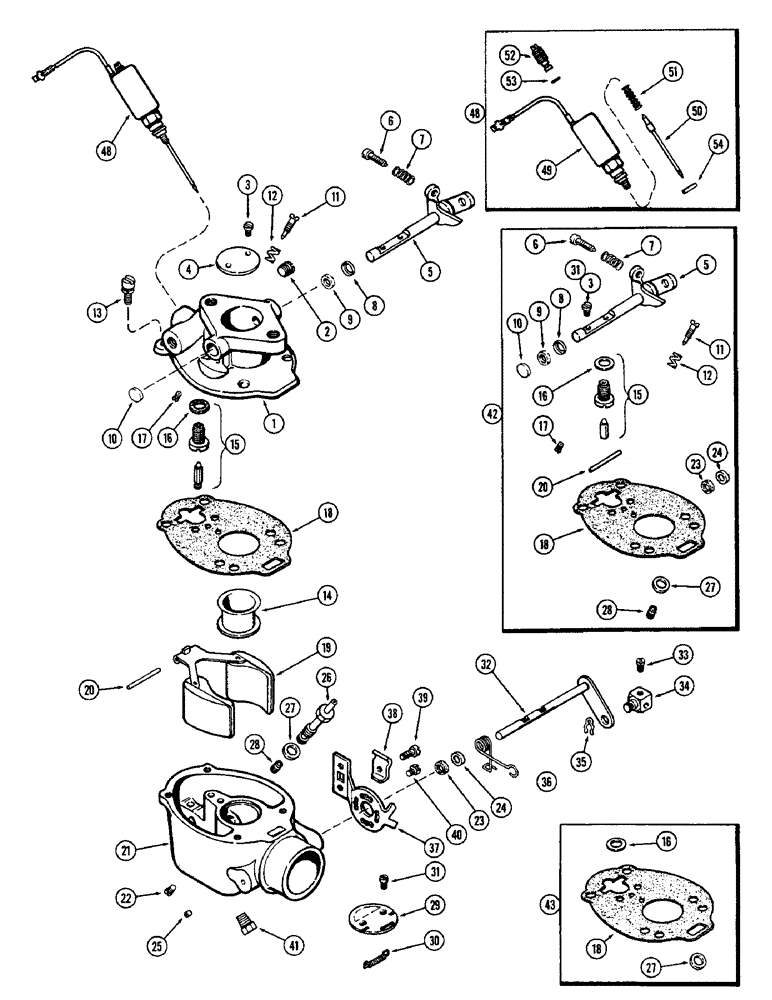

Схема запчастей Case 1700-SERIES - (026) - A39040 CARBURETOR, 148B SPARK IGNITION ENGINE (10) - ENGINE

Артикул

Название

Примечание

Количество

A39040

CARBURETOR

ASSY. - (Marvel-Schebler #TSX-957SL), Includes Ref: 1 - 41

1шт.

1

A41571

BODY ASSY. - throttle

1шт.

2

B53961

X

PLUG - fuel inlet

1шт.

3

B51685

SCREW

- throttle plate

2шт.

Part of P/N A43592 Repair Kit

1шт.

4

B51669

PLATE - throttle fly

1шт.

5

A43595

SHAFT ASSY. - throttle

1шт.

Part of P/N A43592 Repair Kit

1шт.

6

B51680

SCREW - stop, Includes Ref: 7

1шт.

7

B51742

SPRING

- stop screw

1шт.

8

B51853

RETAINER

- packing

1шт.

Part of P/N A43592 Repair Kit

1шт.

9

B51805

PACKING

- throttle shaft

1шт.

Part of P/N A43592 Repair Kit

1шт.

10

B51852

CUP

PLUG - cup, throttle shaft hole

1шт.

Part of P/N A43592 Repair Kit

1шт.

11

B51788

NEEDLE

- idle adjusting

1шт.

Part of P/N A43592 Repair Kit

1шт.

12

B51744

SPRING

- idle adjusting needle

1шт.

Part of P/N A43592 Repair Kit

1шт.

13

B51683

SCREW,#12 - 24 x 5/8"

-, Serial Range: bowl-body

4шт.

14

A41567

VENTURI

1шт.

15

B51912

SEAT

VALVE ASSY. - float, Includes Ref: 16

1шт.

Part of P/N A43592 Repair Kit

1шт.

16

B51703

GASKET

float valve seat

1шт.

17

B51841

JET - idling

1шт.

18

B51708

GASKET

- bowl to body (See Ref. 043)

1шт.

Part of P/N A43592 Repair Kit

1шт.

19

B51772

FLOAT

- fuel body

1шт.

20

B51779

SHAFT

- float

1шт.

Part of P/N A43592 Repair Kit

1шт.

21

NSS

NOT SOLD SEPARAT

BOWL - fuel

1шт.

22

B51700

SCREW

PLUG - body

1шт.

23

51803

PACKING - choke shaft

1шт.

Part of P/N A43592 Repair Kit

1шт.

24

B51854

RETAINER

- choke shaft packing

1шт.

Part of P/N A43592 Repair Kit

1шт.

25

A41026

PLUG - choke shaft hole

1шт.

26

A41568

NOZZLE - main

1шт.

27

51720

PROFILE

GASKET - main nozzle (See Ref. 043)

1шт.

Part of P/N A43592 Repair Kit

1шт.

28

B59391

JET - power

1шт.

29

B51763

VALVE

PLATE ASSY. - choke shaft fly, Includes Ref: 30

1шт.

30

B51735

SPRING

- fly flapper

1шт.

31

B51685

SCREW

- choke disc

1шт.

Part of P/N A43592 Repair Kit

1шт.

32

B51751

SHAFT

ASSY. - choke, Includes Ref: 33 - 35

1шт.

33

B51698

SCREW,0.164" - 32 x 5/16"

- swivel

1шт.

34

B51764

PIVOT

SWIVEL - choke cable

1шт.

35

B51877

SPLIT PIN

PIN - hair, swivel retaining

1шт.

36

B51741

SPRING - return, choke lever

1шт.

37

B53956

BRACKET - choke cable clip

1шт.

38

B51765

CLIP

- choke cable guide

1шт.

39

B59373

SCREW -, Serial Range: clip-bracket

1шт.

40

B51686

SCREW - bracket mounting

1шт.

41

B51887

PLUG

- drain, fuel body

1шт.

42

A43592

KIT

REPAIR KIT major, Includes: Ref. 3, 5, 8 - 12, 15, 18, 20, 23, 24, 27, 31 and 43

1шт.

43

A43594

GASKET KIT

Includes: Ref. 16, 18 and 27

1шт.

Part of P/N A43592 Repair Kit

1шт.

48

A137014

SOLENOID VALVE

SOLENOID ASSY. - fuel shut-off (Replaces A41472), A137014, Includes Ref: 49 - 54

1шт.

49

NSS

NOT SOLD SEPARAT

CASE - solenoid (Order A137014), A137014

1шт.

50

A41574

NEEDLE - adjusting, A137014 solenoid

1шт.

51

A40287

SPRING - cut-off, A137014 solenoid

1шт.

52

A41573

SCREW - adjusting, A137014 solenoid

1шт.

53

A40286

O-RING,0.15" ID x 9" OD x 0.073"

"O" RING - needle seal, A137014 solenoid

1шт.

54

A41575

WASHER - solenoid to carburetor, A137014

1шт.

Выбрано товаров: 66
