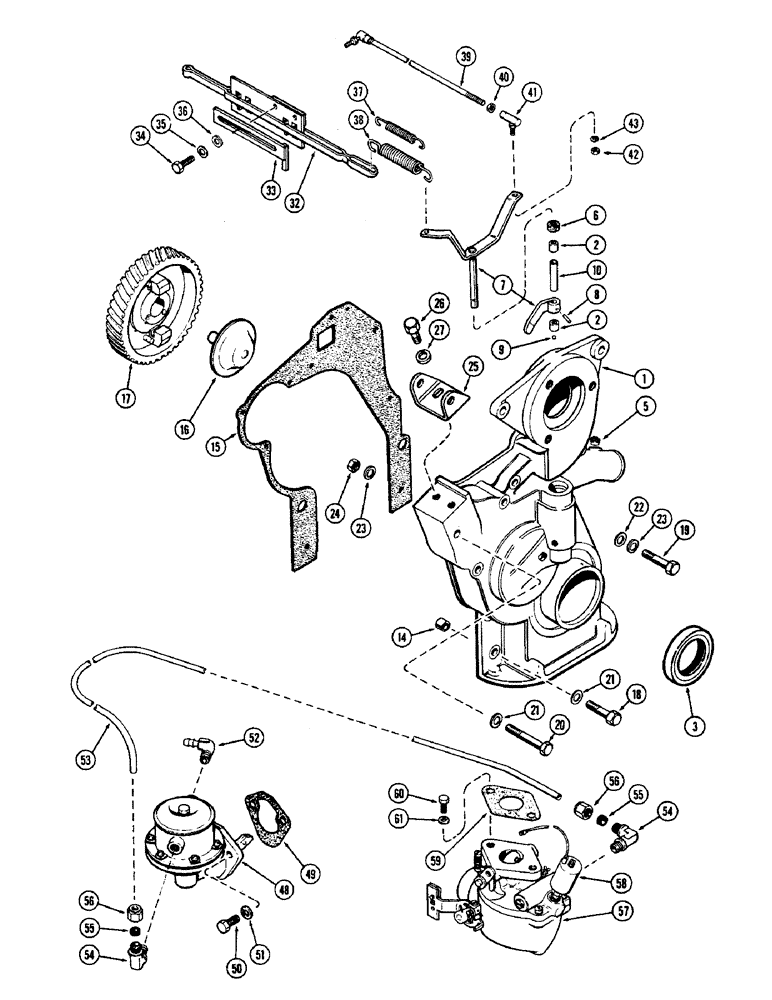

Запчасти Case 1700-SERIES (024) - TIMING GEAR COVER, GOVERNOR AND LINKAGE, 148B SPARK IGNITION ENGINE (10) - ENGINE

1

A39102

COVER

ASSY - timing gear, Includes Ref 2 - 5

1шт.

2

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

Needle, governor shaft

2шт.

3

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

Oil, crankshaft, front (2 x 3 x 1/2")

1шт.

4

A30016

FITTING

PLUG - 1/8" P.T., sltd. hd.

1шт.

5

221-843

PLUG,Hex Soc, 3/8"-18

1шт.

6

A30011

SEAL

Dust (3/8 x 13/16 x 3/8" felt)

1шт.

7

A51754

LEVER

& SHAFT ASSY - governor control (Replaces A39095), Includes Ref 8

1шт.

8

138-57

LOCK PIN,1/8" x 3/4", Slotted

1шт.

9

211-5

BALL,3/16" Dia

Thrust, governor shaft

1шт.

10

A30012

SPACER

Thrust, governor shaft

1шт.

14

A29442

RING

Dowel, cover locating

2шт.

15

A38226

GASKET

, Serial Range: Cover-block

1шт.

16

A29957

SHAFT

ASSY - governor

1шт.

17

G37066

GEAR

ASSY - camshaft (Incl. governor weights)

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

19

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

20

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

3шт.

21

195-25

WASHER,3/8"

(13/32 x 13/16 x 1/16")

5шт.

22

G49400

WASHER

13/32 x 1-5/32 x 10 ga.

1шт.

23

92-6

LOCK WASHER,3/8"

10шт.

24

25-106

NUT,3/8"-16, G5

3шт.

25

A38492

BRACKET

Alternator mounting

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket to cover

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

32

G45793

ROD

Governor control

1шт.

33

G45792

STOP

GUIDE - control rod

1шт.

34

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Guide

2шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

36

195-521

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

37

G47064

SPRING

Governor speed, inner (31/64" O.D.)

1шт.

38

A30711

SPRING

Governor speed, outer (43/64" O.D.)

1шт.

39

G45310

ROD ASSY.

Governor to carburetor (Replaces A38301), Includes Ref 40 - 41

1шт.

40

25-114

NUT,1/4"-28, G5

1шт.

41

A10329

BALL JOINT,1/4" - 28 x 1"

Gov. rod

1шт.

42

25-114

NUT,1/4"-28, G5

2шт.

43

92-4

LOCK WASHER,1/4"

2шт.

48

G45778

PUMP

ASSY - fuel, carburetor

1шт.

49

A65561

GASKET

Fuel pump (Replaces G46902), carburetor

1шт.

50

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Fuel pump

2шт.

51

92-5

LOCK WASHER,5/16"

2шт.

52

217-291

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF

Fuel pump inlet, carburetor

1шт.

53

A141054

TUBE

LINE - fuel pump to carburetor (Replaces G46289)

1шт.

54

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

ASSY. - fuel line, pump and carburetor, Includes Ref 55 - 56

2шт.

55

222-653

SLEEVE,5/16" Tube, Comp

Carburetor and fuel pump

1шт.

56

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

For 5/16" tube

1шт.

57

A39040

CARBURETOR

ASSY - (See Figure 026), fuel pump

1шт.

58

REF

INSTRUCTION

SOLENOID ASSY - fuel shut-off (See Figure 026), carburetor and pump

1шт.

59

A29956

GASKET

Carburetor, fuel pump

1шт.

60

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Carburetor

2шт.

61

92-5

LOCK WASHER,5/16"

2шт.
