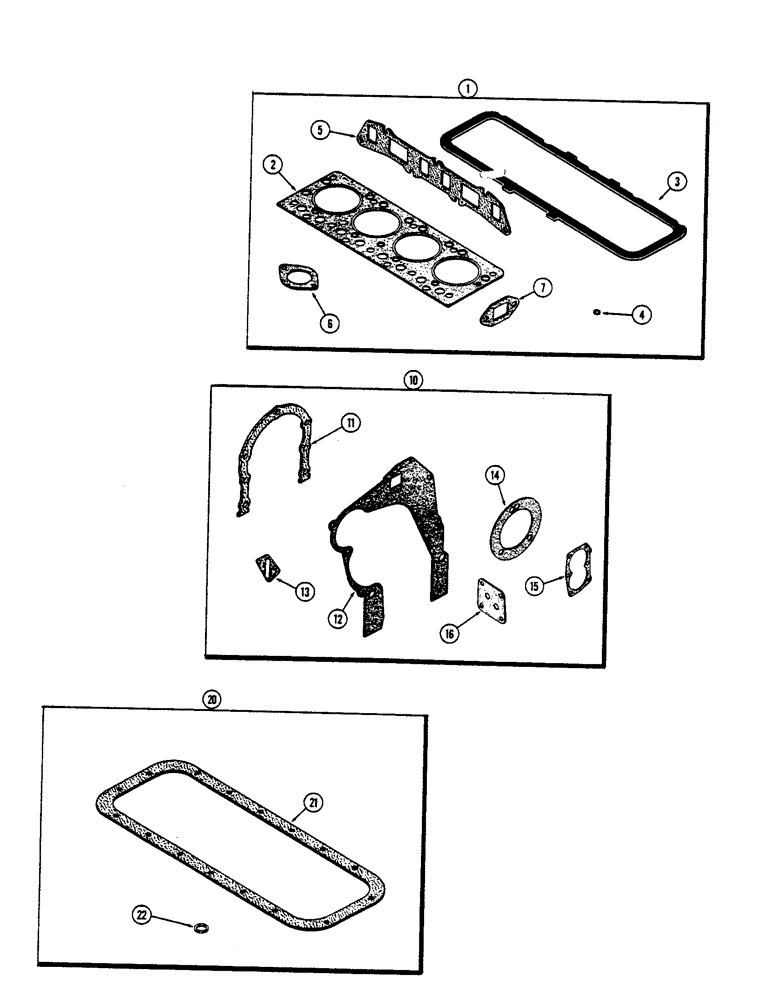

Запчасти Case 1700-SERIES (022) - ENGINE GASKET KITS, 148B SPARK IGNITION ENGINE (10) - ENGINE

1

G11963

GASKET

VALVE GRIND GASKET KIT - (Replaces G11917), Includes Ref: 2 - 7

1шт.

For complete engine overhaul order 1 - G11963, 1 - A41465 & 1 - A40710.

1шт.

2

G46870

CYLINDER HEAD GASKET

- cylinder head (Replaces G10762)

1шт.

3

A43021

GASKET

- cylinder head cover (Replaces A30009)

1шт.

4

G46851

SEAL

- intake valve stem

4шт.

5

A30030

GASKET

- manifold

1шт.

6

A29956

GASKET

- carburetor

1шт.

7

A30003

GASKET

- water outlet elbow

1шт.

10

A41465

GASKET

CYLINDER BLOCK GASKET KIT, Includes Ref: 11 - 16

1шт.

For complete engine overhaul order 1 - G11963, 1 - A41465 & 1 - A40710.

1шт.

11

A39188

GASKET

- rear oil seal retainer

1шт.

12

A38226

GASKET

- timing gear cover

1шт.

13

A65561

GASKET

- fuel pump

1шт.

14

A38083

GASKET

- water pump

1шт.

15

G46852

GASKET

- oil pump cover

1шт.

16

G46854

GASKET

- oil filter brkt. (Not used)

1шт.

20

CASA40710

KIT

OIL PAN GASKET KIT, Includes Ref: 21 - 22

1шт.

For complete engine overhaul order 1 - G11963, 1 - A41465 & 1 - A40710.

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

22

A58608

GASKET

- drain plug (3/4 x 1 x 1/16" nylon)

1шт.

22

A34827

GASKET

- drain plug (7/8 x 1-1/8 x 1/16" copper)

1шт.
