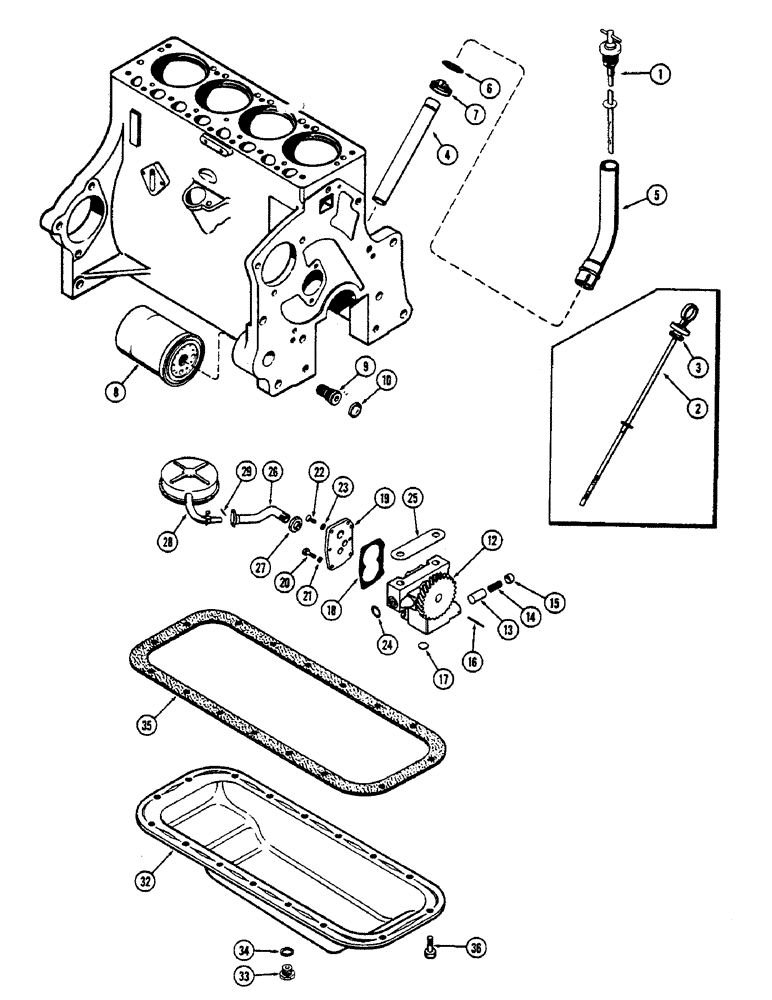

Запчасти Case 1700-SERIES (020) - OIL FILTER AND DIPSTICK, 148B SPARK IGNITION ENGINE (10) - ENGINE

1

A39936

DIPSTICK

ASSY. - oil level (Turn-Tite) (1st used eng. ser. #2718147), Includes Ref: 3

1шт.

2

A37148

DIPSTICK

ASSY. - oil level (Used prior to eng. ser. #2718147), Includes Ref: 3

1шт.

3

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

Dipstick seal

2шт.

4

A37149

TUBE

Oil filler & dipstick (In block)

1шт.

5

A37407

TUBE

EXTENSION - oil filler & level gauge

1шт.

6

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1-3/16 to 1-3/4"

1шт.

8

A37189

FILTER, ELEMENT

ELEMENT, FILTER Engine oil

1шт.

9

A153552

ADAPTER

, Serial Range: Filter-block

1шт.

10

41-1016

PLUG,Cup, 1"

Adapter opening

1шт.

12

A38369

PUMP

ASSY. - oil (Replaces G11844), Includes Ref: 13 - 23

1шт.

13

A155144

VALVE, PRESSURE RELI

Relief, oil pump

1шт.

14

G48513

VALVE SPRING

Relief, oil pump

1шт.

15

A29260

RETAINER

Relief spring, oil pump

1шт.

16

132-50

COTTER PIN,1/8" x 1 1/4"

Oil pump

1шт.

17

A39321

PLUG,Cup, 7/16"

Pump body (1/2" cup), oil

2шт.

18

G46852

GASKET

Pump cover, oil

1шт.

19

NSS

NOT SOLD SEPARAT

COVER - pump body, oil

1шт.

20

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

21

92-4

LOCK WASHER,1/4"

4шт.

22

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

2шт.

23

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

2шт.

24

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Oil port, pump

1шт.

25

G11337

SHIM,.002" Thk

Pump to bearing cap, Oil

1шт.

25

G11338

SHIM,.005" Thk

Pump to bearing cap, Oil

1шт.

26

A39035

TUBE

PIPE - suction, oil pump

1шт.

27

223-207

LOCK NUT

NUT - lock, Serial Range: pipe-pump

1шт.

28

A39036

FLOAT

ASSY, oil pump

1шт.

29

132-50

COTTER PIN,1/8" x 1 1/4"

Oil pump

1шт.

A36726

PAN

ASSY. - oil, Includes Ref: 32 - 34

1шт.

32

A36727

PAN, ENGINE OIL

PAN, OIL

1шт.

33

A14280

PLUG

Drain, oil pan

1шт.

34

A58608

GASKET

Drain plug, oil pan

1шт.

35

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40710) (See Figure 022)

1шт.

36

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT ASSY. - w/washer

16шт.
