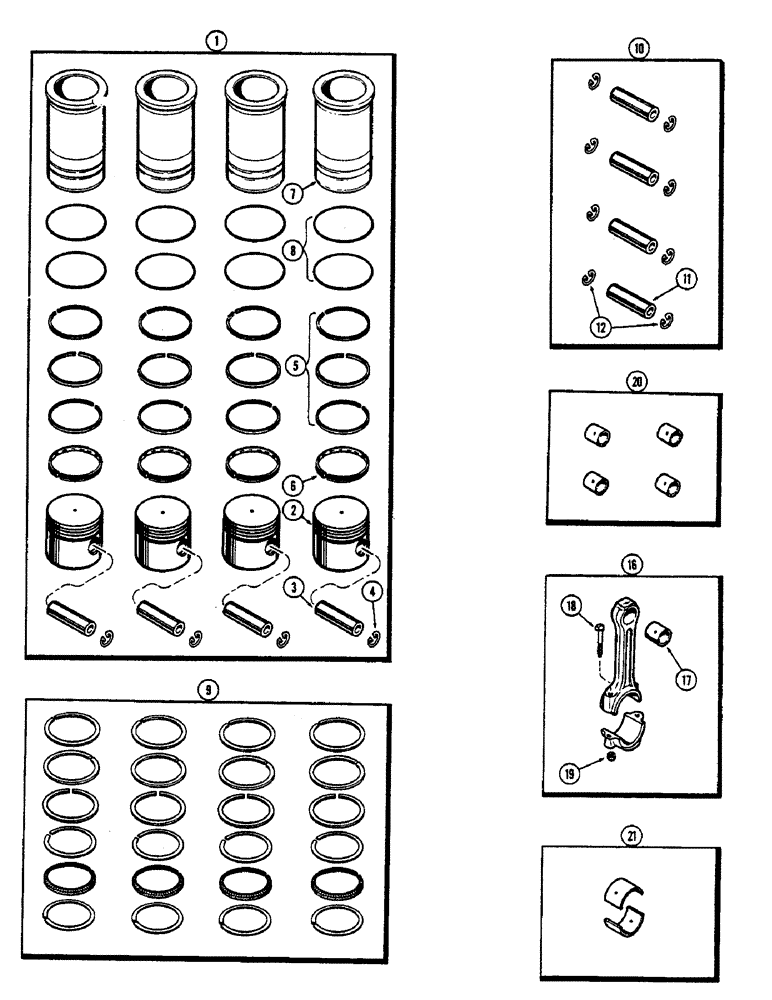

Запчасти Case 1700-SERIES (018) - PISTONS AND CONNECTING RODS, 148B SPARK IGNITION ENGINE (10) - ENGINE

1

G11007

SLEEVE ASSY

PISTON ASSY. - (Set of 4), Includes Ref: 2 - 8

1шт.

2

G1060

PISTON

4шт.

3

NSS

NOT SOLD SEPARAT

PIN - piston (Wrist) (Order Ref. 10)

4шт.

4

A30023

RETAINER

RING - piston pin retaining

8шт.

5

G1062

OIL SEAL

RING - compression, 1st, 2nd & 3rd grooves (See Ref. 9)

12шт.

6

G1063

OIL SEAL

RING - oil control, 4th groove (See Ref. 9)

4шт.

7

G1061

SLEEVE

- piston (Cylinder liner)

4шт.

8

G46909

O-RING,3.112" ID x 3.344" OD

"O" RING - sleeve packing (3-1/8 x 3-11/32 x 7/64")

8шт.

9

G11116

PISTON RING SET

RING SET - piston re-ring (Set of 4)

1шт.

10

G11925

PISTON PIN

PIN KIT - piston (Set of 4 pins & 8 rings), Includes Ref: 11 - 12

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - piston (Order G11925)

4шт.

12

A30023

RETAINER

RING - retaining, piston pin

8шт.

16

G11592

EXCHANGE CONROD

ROD ASSY. - connecting, Includes Ref: 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 20)

1шт.

18

G11701

BOLT

-, Serial Range: cap-rod

2шт.

19

A51904

NUT

NUT - cap bolt

2шт.

20

G11955

KIT

BUSHING SET - piston pin (Set of 4)

1шт.

21

A36500

SEAL

LINER KIT - conn. rod brg. (Set of 2) (Std.)

4шт.

21

A36501

BEARING LINER

LINER KIT - conn. rod brg. (Set of 2) (-.002")

4шт.

21

A36502

LINING

LINER KIT - conn. rod brg. (Set of 2) (-.010")

4шт.

21

A36503

BEARING LINER

LINER KIT - conn. rod brg. (Set of 2) (-.020")

4шт.

22

A36504

KIT

LINER KIT - conn. rod brg. (Set of 2) (-.030")

4шт.
