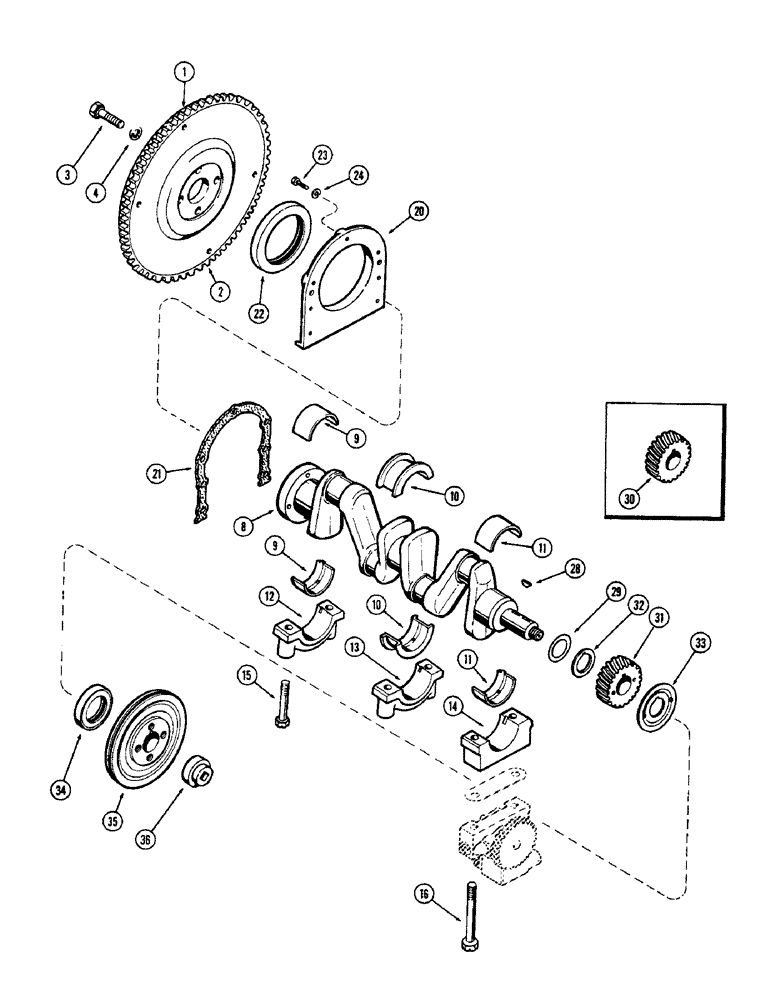

Запчасти Case 1700-SERIES (016) - CRANKSHAFT AND FLYWHEEL, 148B SPARK IGNITION ENGINE (10) - ENGINE

1

A39123

FLYWHEEL

ASSY., Includes Ref: 2

1шт.

2

G11710

GEAR

- ring (135 teeth)

1шт.

3

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

BOLT - flywheel, 7/16 x 1-1/8" N.F. place

4шт.

4

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flywheel bolt (29/64 x 3/4 x 5/64")

4шт.

8

A37210

CRANKSHAFT

1шт.

9

G37051

KIT

LINER SET - main brg., rear (Std.)

1шт.

9

G37052

KIT

LINER SET - main brg., rear (.002" undersize)

1шт.

9

A42322

FIP KIT

LINER SET - main brg., rear (.010" undersize)

1шт.

9

G37053

KIT

LINER SET - main brg., rear (.020" undersize)

1шт.

9

G37054

KIT

LINER SET - main brg., rear (.040" undersize)

1шт.

10

G37047

KIT

LINER SET - main brg., ctr. (Std.)

1шт.

10

G37048

KIT

LINER SET - main brg., ctr. (.002" undersize)

1шт.

10

A42321

FIP KIT

LINER SET - main brg., ctr. (.010" undersize)

1шт.

10

G37049

KIT

LINER SET - main brg., ctr. (.020" undersize)

1шт.

10

G37050

KIT

LINER SET - main brg., ctr. (.040" undersize)

1шт.

11

G37043

KIT

LINER SET - main brg., front (Std.)

1шт.

11

G37044

KIT

LINER SET - main brg., front (.002" undersize)

1шт.

11

A42320

BEARING LINER

LINER SET - main brg., front (.010" undersize)

1шт.

11

G37045

KIT

LINER SET - main brg., front (.020" undersize)

1шт.

11

G37046

KIT

LINER SET - main brg., front (.040" undersize)

1шт.

12

G2037

CAP

- main bearing, rear

1шт.

13

G2036

CAP

- main bearing, center

1шт.

14

G2035

CAP

- main bearing, front

1шт.

15

G49037

BOLT

- ctr. & rear brg. caps, 1/2 x 3" N.C. hex.

4шт.

16

G49059

BOLT

- front bearing cap & oil pump, 1/2 x 4-3/4" N.C. hex.

2шт.

20

A38390

RETAINER

- rear oil seal

1шт.

21

A39188

GASKET

- rear oil seal retainer

1шт.

22

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear (4 x 5 x 1/2") (Replaces A39111)

1шт.

23

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- retainer, 1/4 x 3/4" N.C. hex.

4шт.

23

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- retainer, 1/4 x 1" N.C. hex.

3шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

28

A39132

KEY

- pulley & gear

2шт.

29

A29293

SHIM,.010" Thk

Thrust .010" Thk

1шт.

30

A39288

GEAR

- crankshaft (24 teeth) (1-5/32" wide)

1шт.

31

A29263

GEAR

- crankshaft (24 teeth) (1-1/16" wide)

1шт.

32

A29294

BUSHING

SPACER - thrust (3/32" thick) (Used w/A29263 gear)

1шт.

33

A29259

SLINGER

- oil

1шт.

34

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front (Replaces A36609)

1шт.

35

A50962

PULLEY

- fan drive (Replaces G11342 & A39931)

1шт.

36

A35673

NUT

- pulley retaining

1шт.
