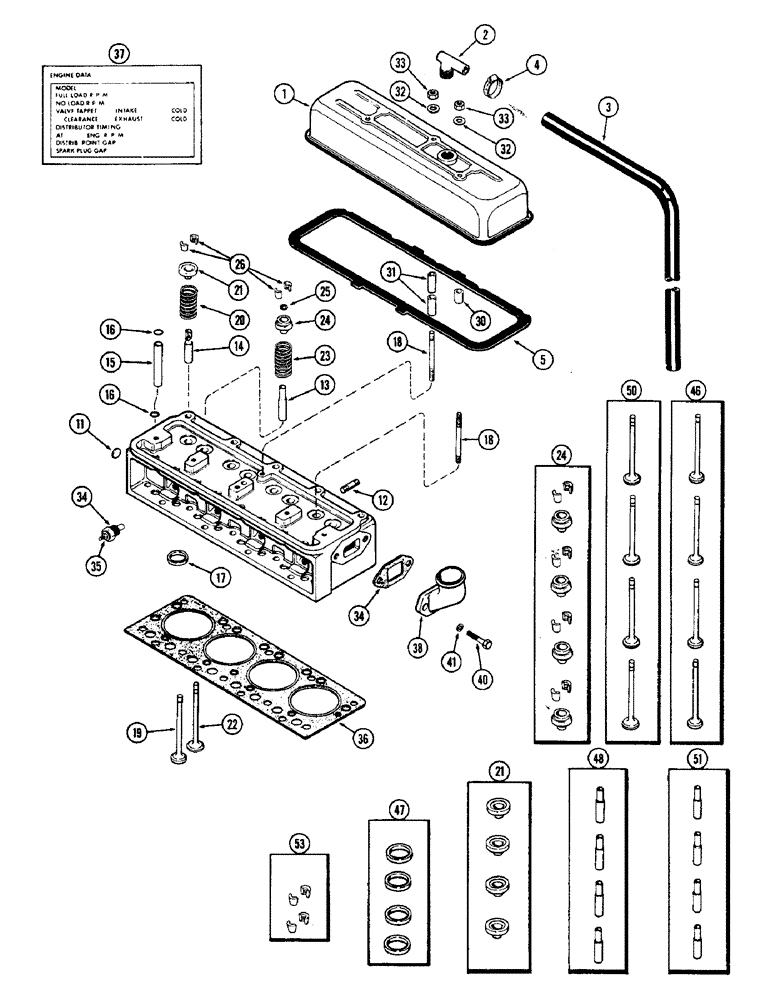

Запчасти Case 1700-SERIES (010) - CYLINDER HEAD AND COVER, 148B SPARK IGNITION ENGINE (10) - ENGINE

1

A37212

COVER

- cylinder head

1шт.

2

A9155

90 ELBOW

- breather tube

1шт.

3

A39570

HOSE

- breather

1шт.

4

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - tube to elbow, 9/16" to 1-1/16"

1шт.

5

A43021

GASKET

- cover to cyl. head (Replaces A30009)

1шт.

G11888

HEAD ASSY. - cyl., complete (Casting No. G2088), Includes Ref: 10 - 26

1шт.

10

G11874

HEAD (CYLINDER)

HEAD ASSY. - cyl. stripped (Casting No. G2088), Includes Ref: 11 - 17

1шт.

11

41-18

PLUG

- rear (1-1/8" expansion)

1шт.

12

A29431

STUD

- manifold, 3/16" N.C. x 1-3/4"

7шт.

13

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (2-11/16" long) (Order Ref. 51)

4шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (2-7/16" long) (Order Ref. 48)

4шт.

15

G11360

TUBE,0.687" OD x 3.687" L

- push rod

8шт.

16

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube (11/16 x 7/8 x 3/32")

16шт.

17

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order Ref. 47)

4шт.

18

G49505

STUD

- rocker arms & cover, 3/8" N.C. x 4-5/8"

3шт.

19

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 46)

4шт.

20

G10004

SPRING

- exhaust valve (7-3/4 coils, w/silver stripe)

4шт.

21

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve spring (Order Ref. 49)

4шт.

22

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 50)

4шт.

23

A30025

SPRING

- intake valve (8-1/4 coils, plain)

4шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order Ref. 52)

4шт.

25

G46851

SEAL

- intake valve stem

4шт.

26

NSS

NOT SOLD SEPARAT

LOCK - valve springs (Order Ref. 53)

16шт.

30

A30065

SPACER

- cover (25/64 x 35/64 x 17/32")

2шт.

31

A29999

SPACER

- cover (25/64 x 35/64 x 1-19/32")

2шт.

32

A29277

WASHER

- cover stud (13/32 x 1 x 1/8")

3шт.

33

25-106

NUT,3/8"-16, G5

- cover stud, 3/8" N.C. hex.

3шт.

34

A21462

SENDER UNIT

UNIT - temperature sending

1шт.

35

193-1000

NUT,Keps, w/LW,#10-32

- #10 Keps

1шт.

36

G46870

CYLINDER HEAD GASKET

- cyl. head to block (Replaces G10672)

1шт.

37

321-2388

DECAL - engine data (w/capacitive discharge ignition)

1шт.

37

321-1662

DECAL

- engine data (w/distributor point system)

1шт.

38

A39215

ELBOW - water outlet

1шт.

39

A30003

GASKET

- elbow

1шт.

40

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Elbow to head Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

41

92-6

LOCK WASHER,3/8"

2шт.

46

G11962

VALVE, ENG EXHAUST,

VALVE SET - exhaust (Set of 4)

1шт.

47

G11960

KIT

INSERT SET - exhaust valve seat (Set of 4)

1шт.

48

A30270

GUIDE

SET - exhaust valve (Set of 4)

1шт.

49

G11928

CAP

ROTO-CAP SET - exhaust valve (Set of 4)

1шт.

50

G11961

VALVE

SET - intake (Set of 4)

1шт.

51

G10269

KIT

GUIDE SET - intake valve (Set of 4)

1шт.

52

G11927

RETAINER

SET - intake valve (Set of 4 w/locks)

1шт.

53

G11929

LOCK

SET - valve springs (Set of 4)

4шт.
