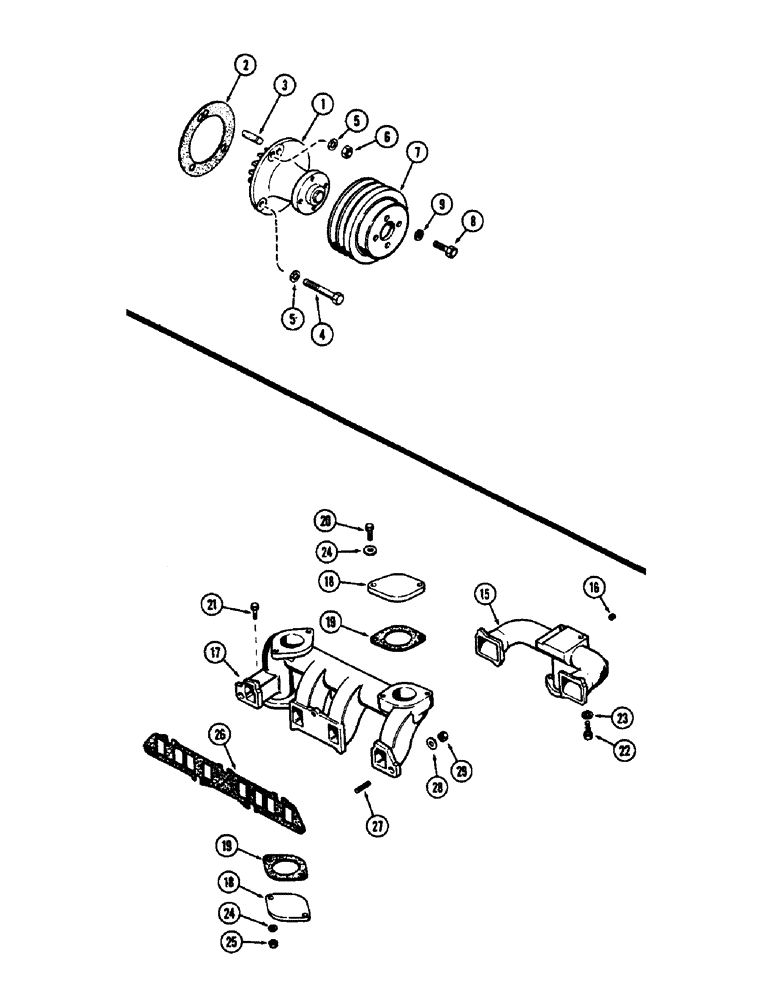

Запчасти Case 1700-SERIES (008) - WATER PUMP, 148B SPARK IGNITION ENGINE (10) - ENGINE

1

A39074

PUMP

ASSY. - water, Includes Ref: 2

1шт.

2

A38083

GASKET

- water pump

1шт.

3

A29433

STUD

- pump mtg., 3/8" N.C. x 1"

1шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pump mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

4

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- pump mtg., 3/8 x 2-3/4" N.C. hex.

1шт.

5

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

7

A39216

PULLEY - fan & pump drive

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Pulley Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

9

92-5

LOCK WASHER,5/16"

4шт.

15

A37172

MANIFOLD

- intake

1шт.

16

221-12

PLUG,Sq Hd, 1/4"-18

- intake manifold, 1/4" P.T., sq. hd.

1шт.

A39231

MANIFOLD ASSY

. - exhaust, Includes Ref: 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

MANIFOLD - exhaust

1шт.

18

A38188

PLATE

- exhaust manifold outlet cover

2шт.

19

G46853

MANIFOLD GASKET

- outlet cover plate, manifold

2шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

21

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

4шт.

22

131-903

NUT,3/8"-16

NUT - 3/8" N.C., Seez-Pruf

4шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Manifolds Hex, 3/8"-16 x 2", G5

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

26

A30030

GASKET

- manifolds

1шт.

27

A29431

STUD

- manifolds to head, 3/8" N.C. x 1-3/4"

7шт.

28

A30058

WASHER

- 13/32 x 7/8 x 1/8"

4шт.

28

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

3шт.

29

131-903

NUT,3/8"-16

NUT - 3/8" N.C., Seez-Pruf

7шт.
