Запчасти Case 1700-SERIES (193A) - SIDE SCREENS, ALL MODELS WITHOUT SIDE SCREENS (90) - PLATFORM, CAB, BODYWORK AND DECALS

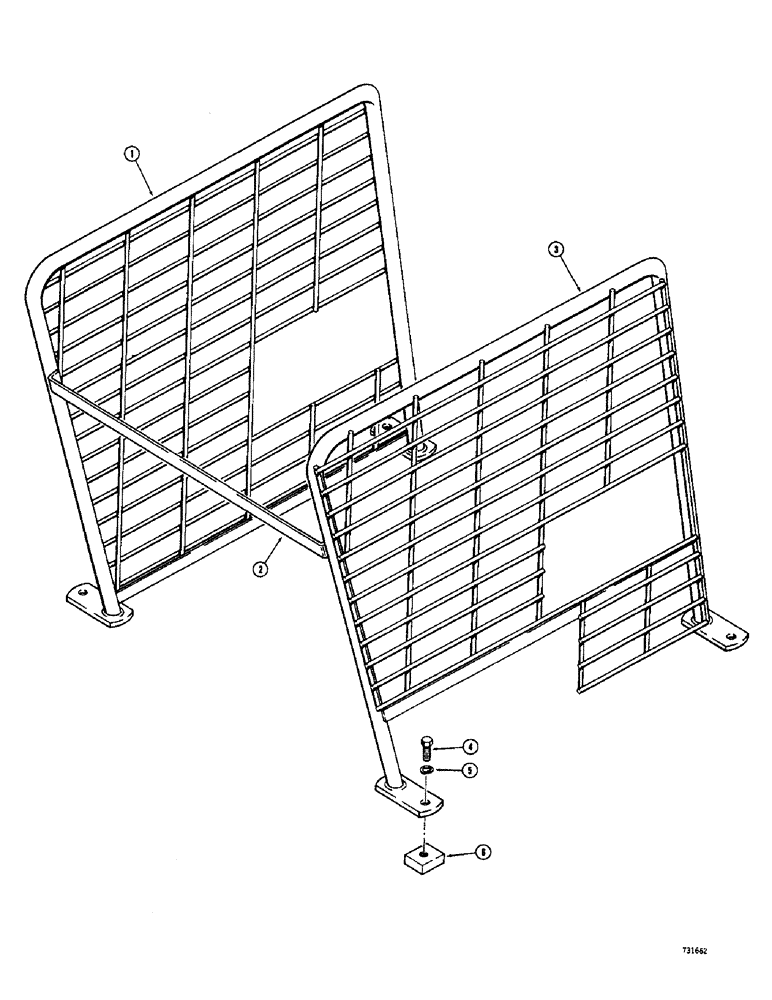

Схема запчастей Case 1700-SERIES - (193A) - SIDE SCREENS, ALL MODELS WITHOUT SIDE SCREENS (90) - PLATFORM, CAB, BODYWORK AND DECALS

Артикул

Название

Примечание

Количество

1

D60900

GUARD

- arm, L.H.

1шт.

2

D60901

GUARD

- arm, R.H.

1шт.

3

D60940

BAR - cross, brace

1шт.

4

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

NSS

NOT SOLD SEPARAT

BLOCK - tapped

4шт.

321-3582

DECAL

warning

1шт.

Выбрано товаров: 7
