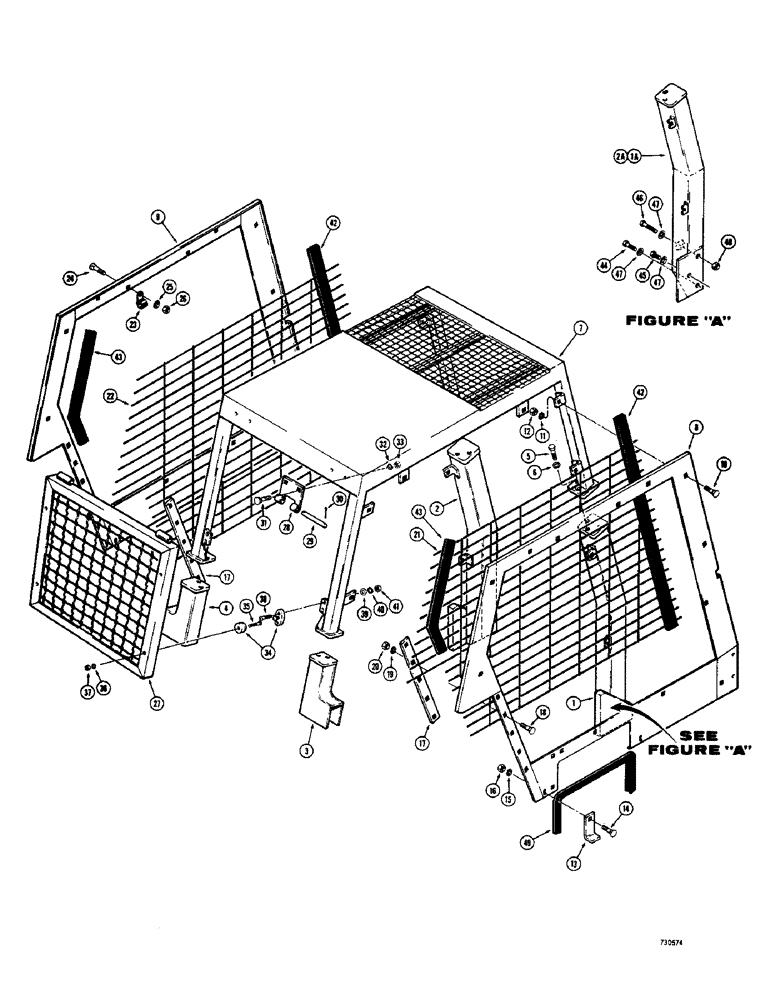

Запчасти Case 1700-SERIES (192) - ROLL-OVER PROTECTION STRUCTURE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F93255

SUPPORT - lower, RH front (Weld on) Service with F93494 support, F42764 plate and items 44 thru 48)

1шт.

1a

F93494

SPARE PART Lower, RH front (Bolt on)

1шт.

2

F93256

SUPPORT - lower, LH front (Weld on) Service with F93495 support, F427614 plate and items 44 thru 48)

1шт.

2a

F93495

SPARE PART Lower, LH front (Bolt on)

1шт.

3

F93257

SPARE PART Lower, RH rear

1шт.

4

F93258

SPARE PART Lower, LH rear

1шт.

5

113-499

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8, Full Thd

8шт.

6

192-23

LOCK WASHER,1/2"

8шт.

7

F93246

SPARE PART Top

1шт.

8

F93252

SPARE PART Screen holder, RH

1шт.

9

F93253

SPARE PART Screen holder, LH

1шт.

10

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

16шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

16шт.

12

9635082

NUT,5/16" - 18, Gr 5

16шт.

13

F42313

EYEBOLT

Screen retaining

4шт.

14

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

4шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

4шт.

17

F42305

SPARE PART BACKING - screen retaining

2шт.

18

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

10шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

10шт.

20

9635082

NUT,5/16" - 18, Gr 5

10шт.

21

F42303

SPARE PART Guard, RH

1шт.

22

F42304

SPARE PART Guard, LH

1шт.

23

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Screen

8шт.

24

111-340

BOLT,Short NK, 3/8"-16 x 3/4", G2, Full Thd

8шт.

25

192-21

LOCK WASHER,3/8"

8шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

8шт.

27

F93263

SPARE PART GUARD - rear

1шт.

28

F42319

EYEBOLT

Half

2шт.

29

F42316

EYEBOLT

Hinge

2шт.

30

132-333

COTTER PIN,1/8" x 5/8"

4шт.

31

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

4шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

33

9635082

NUT,5/16" - 18, Gr 5

4шт.

34

F93104

HOLDER

SET - door

2шт.

35

173-207

X

RHMS - 1/4"-20 NC x 5/8"

2шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

37

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

38

171-244

SCREW,Sl Flat Hd, #10 - 24 x 1"

Machine

4шт.

39

195-512

WASHER,#10

4шт.

40

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

4шт.

41

129-17

NUT,Hex, #10 - 24

4шт.

42

REF

INSTRUCTION

FOAM RUBBER - front (39" long) Use F42419 roll - 25'

1шт.

43

REF

INSTRUCTION

FOAM RUBBER - rear (21-1/2" long) Use F42419 roll - 25'

1шт.

44

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

45

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

46

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

47

192-107

LOCK WASHER,#10

Med. sect. lock (5/8") Plated

6шт.

48

129-107

NUT,5/8"-11, G5

2шт.

49

F42589

SEAL - instrument panel, 35" long

1шт.
