Запчасти Case 1700-SERIES (190) - ROLL OVER PROTECTION STRUCTURE AND SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

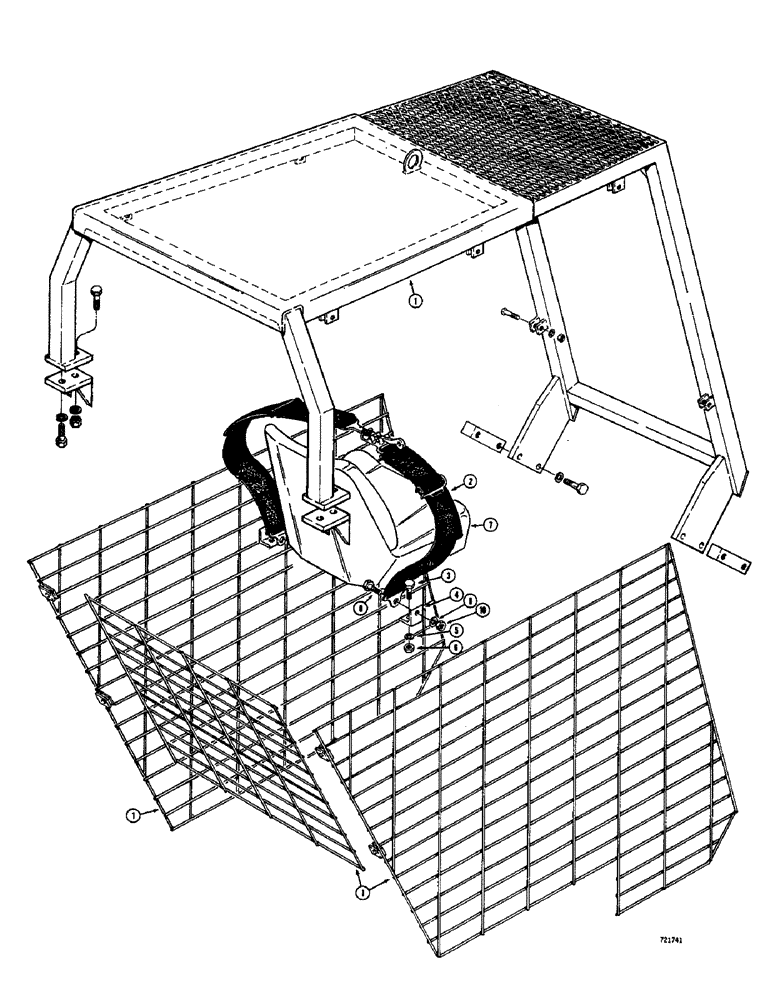

Схема запчастей Case 1700-SERIES - (190) - ROLL OVER PROTECTION STRUCTURE AND SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

Артикул

Название

Примечание

Количество

1

D55909

SPARE PART ROPS - Sims, with screen (Machinery item)

1шт.

ROPS, cab, screens and mounting parts must be ordered from Sims Cab Co. 230 Maple Street, Payne Ohio or Sims cab co. route 122A, Rutland, Mass.

1шт.

1a

D57563

SPARE PART ROPS - Sims, with cab (Machinery item) Not shown

1шт.

ROPS, cab, screens and mounting parts must be ordered from Sims Cab Co. 230 Maple Street, Payne Ohio or Sims cab co. route 122A, Rutland, Mass.

1шт.

1a

D60213

SPARE PART ROPS - Sims, with cab (Machinery item) Not shown

1шт.

ROPS, cab, screens and mounting parts must be ordered from Sims Cab Co. 230 Maple Street, Payne Ohio or Sims cab co. route 122A, Rutland, Mass.

1шт.

2

D60615

SAFETY BELT ,3.00" W

1шт.

3

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

4

D54655

BRACKET

ANGLE - mounting, belt

2шт.

5

92-7

LOCK WASHER,7/16"

2шт.

6

25-107

NUT,7/16"-14, G5

2шт.

7

REF

INSTRUCTION

SEAT - operators (Parts list Figure 208)

1шт.

8

F42236

STEP BOLT

Special

2шт.

9

192-22

LOCK WASHER,7/16"

2шт.

10

425-117

NUT,7/16"-20, G5

2шт.

Выбрано товаров: 15
