Запчасти Case 1700-SERIES (140) - SHEET METAL, FOR NOISE REDUCTION MODELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

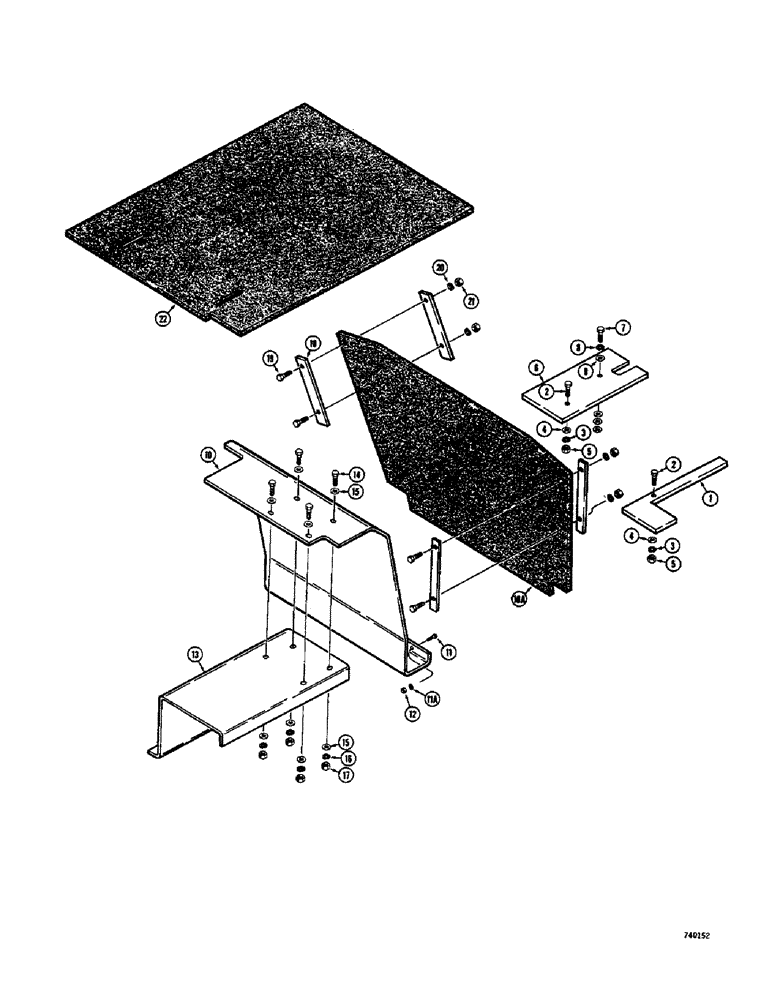

Схема запчастей Case 1700-SERIES - (140) - SHEET METAL, FOR NOISE REDUCTION MODELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

Артикул

Название

Примечание

Количество

1

D61073

PLATE ASSEMBLY - seat, R.H. (Includes pads - see Figure 141A, items 3 and 4)

1шт.

2

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

HHCS - 7/16" - 16 NC x 1-1/4"

2шт.

3

92-7

LOCK WASHER,7/16"

2шт.

4

195-107

WASHER,9/16"

- plain (7/16")

1шт.

5

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 16 NC)

2шт.

6

D61072

PLATE ASSEMBLY - seat, L.H. (Includes pads - see Figure 141A, items 3 and 5)

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

195-25

WASHER,3/8"

- plain () 3/8"

3шт.

10

D60633

SHIELD ASSEMBLY - heat (Includes pads - see Figure 141A, items 12 and 13), Including: Ref. 10A

1шт.

10a

D60681

MAT

- heat shield

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

11a

92-5

LOCK WASHER,5/16"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex. (5/16" - 18 NC)

2шт.

13

D61844

SHROUD ASSEMBLY - muffler (Includes pad - see Figure 141A, item 11)

1шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

15

195-102

WASHER,1/4"

- flat () Plated 1/4"

4шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

25-104

NUT,1/4"-20, G5

4шт.

18

D61077

STRIP - retaining, foam rubber

4шт.

19

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21

25-104

NUT,1/4"-20, G5

4шт.

22

D60259

MAT

- floor

1шт.

Выбрано товаров: 24
