Запчасти Case 1700-SERIES (222) - TOOLS (89) - TOOLS

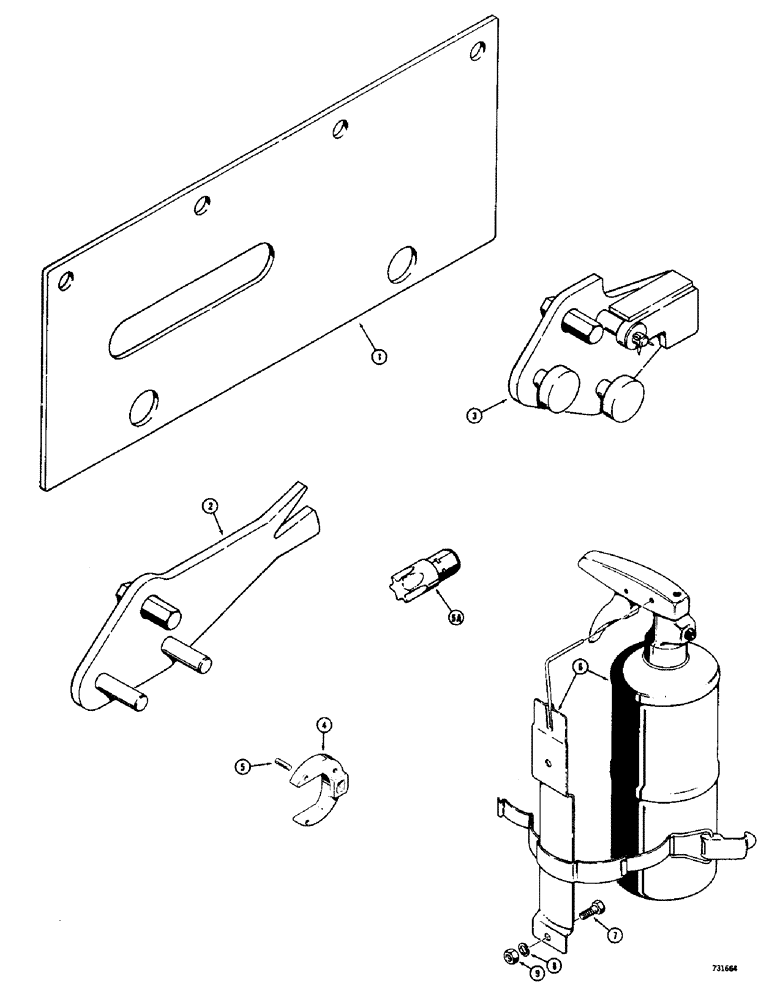

Схема запчастей Case 1700-SERIES - (222) - TOOLS (89) - TOOLS

Артикул

Название

Примечание

Количество

D16331

KIT

- tool, adjustment (#40, #50 and #60 chain), Includes: Ref. 1 - 2

1шт.

1

D54392

GUIDE

- clutch position

1шт.

2

D54393

TOOL - chain tension

1шт.

3

D54905

ELECTRICAL GAUGE

GAUGE ASSEMBLY - adjustment, #80 chain

1шт.

D44110

OPEN END WRENCH

SET - spanner wrench (For removing and installing packing glands in threaded gland type hydraulic cylinders), Includes: Ref. 4 - 5

1шт.

4

D44111

OPEN END WRENCH

WRENCH - spanner, for 2-1/2" I.D. cylinders with 1-1/4" or 1-1/2" dia. piston rods, Includes: Ref. 5

1шт.

4

D44112

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-1/2" dia. piston rod, Includes: Ref. 5

1шт.

4

D44113

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-3/4" dia. piston rod, Includes: Ref. 5

1шт.

4

D44114

OPEN END WRENCH

WRENCH - spanner, for 3-1/2" I.D. cylinders with 1-3/4" or 2" dia. piston rods, Includes: Ref. 5

1шт.

4

D44115

OPEN END WRENCH

WRENCH - spanner, for 4" I.D. cylinders with 2" or 2-1/4" dia. piston rods, Includes: Ref. 5

1шт.

4

D44116

OPEN END WRENCH

WRENCH - spanner, for 4-1/2" I.D. cylinders with 2-1/2" dia. piston rod, Includes: Ref. 5

1шт.

5

D30107

PIN

- repair, spanner wrench (For 2-1/2" through 4" I.D. cylinders)

3шт.

5

D44118

SPARE PART

PIN - repair, spanner wrench (For D44116 wrench only)

3шт.

5a

D61772

BRAKE TOOL - screw with torx recess

1шт.

6

L52773

FIRE EXTINGUISHER

AND BRACKET - dry chemical (Replaces D42077)

1шт.

7

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

129-10

NUT - hex. (1/4" - 20 NC) Zinc plated

2шт.

Выбрано товаров: 18
