Запчасти Case 1700-SERIES (184) - LOADER BUCKETS, MINING BUCKETS (82) - FRONT LOADER & BUCKET

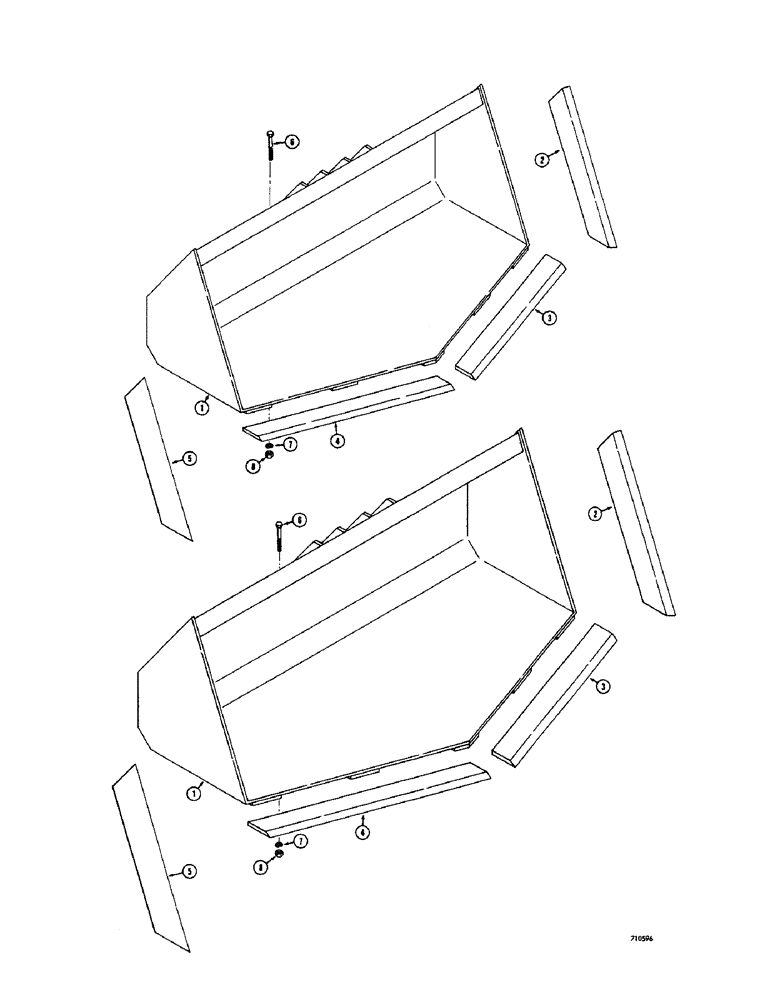

Схема запчастей Case 1700-SERIES - (184) - LOADER BUCKETS, MINING BUCKETS (82) - FRONT LOADER & BUCKET

Артикул

Название

Примечание

Количество

1

T88723

BUCKET - mining, 7.5 cu. ft. (Mach. item) 48" wide, Include: Ref. 2 - 8

1шт.

2

T41197

EDGE - cutting, left side

1шт.

3

T41191

EDGE - cutting, left front

1шт.

4

T41192

EDGE - cutting, right front

1шт.

5

T41198

EDGE - cutting, right side

1шт.

6

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

25-1010

NUT,5/8"-11, G5

2шт.

1

T88724

BUCKET - mining, 9.5 cu. ft. (Mach. item) 60" wide, Include: Ref. 2 - 8

1шт.

2

T41197

EDGE - cutting, left side

1шт.

3

T41193

EDGE - cutting, left front

1шт.

4

T41194

EDGE - cutting, right front

1шт.

5

T41198

EDGE - cutting, right side

1шт.

6

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

25-1010

NUT,5/8"-11, G5

2шт.

Выбрано товаров: 16
