Запчасти Case 1700-SERIES (080) - INSTRUMENT PANEL, EARLY PRODUCTION, MODELS WITH COPPER VACUUM TUBES (55) - ELECTRICAL SYSTEMS

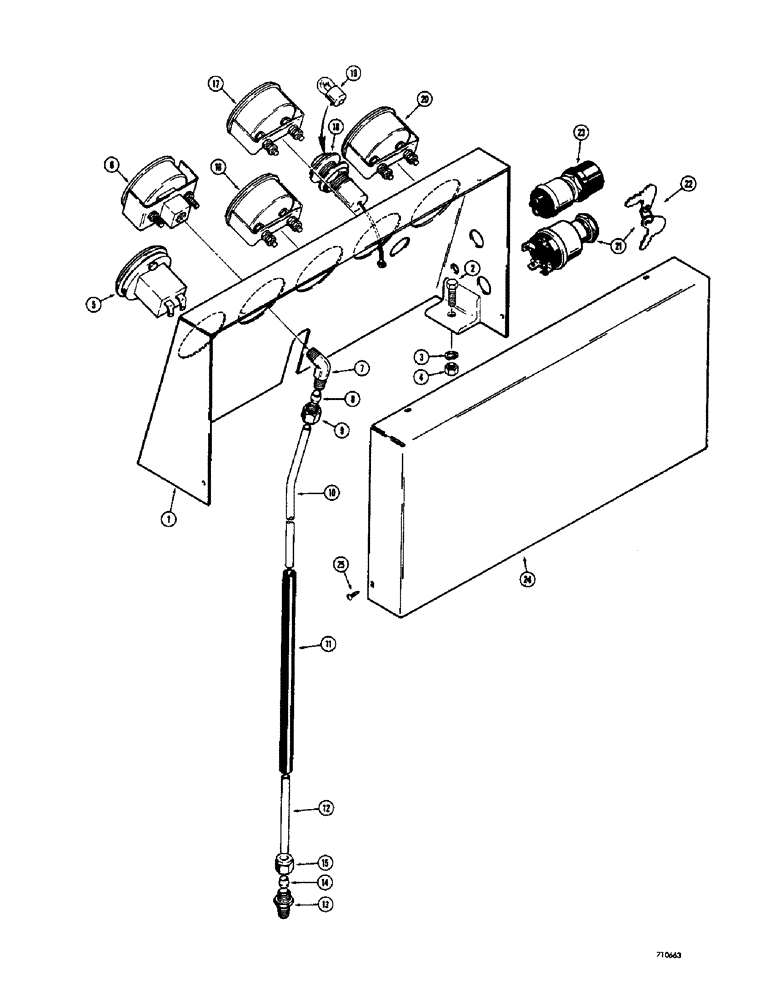

Схема запчастей Case 1700-SERIES - (080) - INSTRUMENT PANEL, EARLY PRODUCTION, MODELS WITH COPPER VACUUM TUBES (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

D53043

PANEL - instrument, front

1шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

25-104

NUT,1/4"-20, G5

2шт.

5

D53047

GAUGE

METER - hour

1шт.

6

T41949

GAUGE

- hydraulic vacuum

1шт.

222-617

ELBOW,90 Degree, 3/8"-24 x 1/8" NPT, Comp

ASSEMBLY - 90 degrees, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

8

222-652

SLEEVE,1/4" Tube, Comp

- tube

1шт.

9

222-662

TUBE NUT,7/16"-24, 45 Degree Fl, Comp

NUT - tube

1шт.

10

T42370

TUBE - vacuum, long (Copper) 0.25" OD x 20" L

1шт.

11

T42372

HYDRAULIC HOSE,0.22" ID x 8.00", SAE J50

- Vacuum 0.22" ID x 8.00", SAE J50

1шт.

12

T42371

TUBE,0.25" OD x 3" L

- vacuum, short (Copper)

1шт.

22-602

CONNECTOR ASSEMBLY - straight, male, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

14

222-652

SLEEVE,1/4" Tube, Comp

- tube

1шт.

15

222-662

TUBE NUT,7/16"-24, 45 Degree Fl, Comp

NUT - tube

1шт.

16

A19348

ELECTRICAL GAUGE

METER - amp

1шт.

17

A19347

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

18

D53892

LIGHT

ASSEMBLY - pilot, Includes: Ref. 19

1шт.

19

71421

BULB,R5W, 12V, 5W

- pilot light (No. 67)

1шт.

20

A19346

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

21

D35092

SWITCH

- electrical

1шт.

22

D36822

KEY

- switch (Set of two), Includes: Ref. 22

1шт.

23

T40340

IGNITION SWITCH

BUTTON - starter

1шт.

24

T40609

COVER

PANEL - instrument, back

1шт.

25

187-1057

SELF-TAP SCREW,Slotted Pan Hd, #6 x 1/2"

SCREW - sheet metal (#6 x 1/2")

4шт.

Выбрано товаров: 27
