Запчасти Case 1700-SERIES (076) - ELECTRICAL SYSTEM (55) - ELECTRICAL SYSTEMS

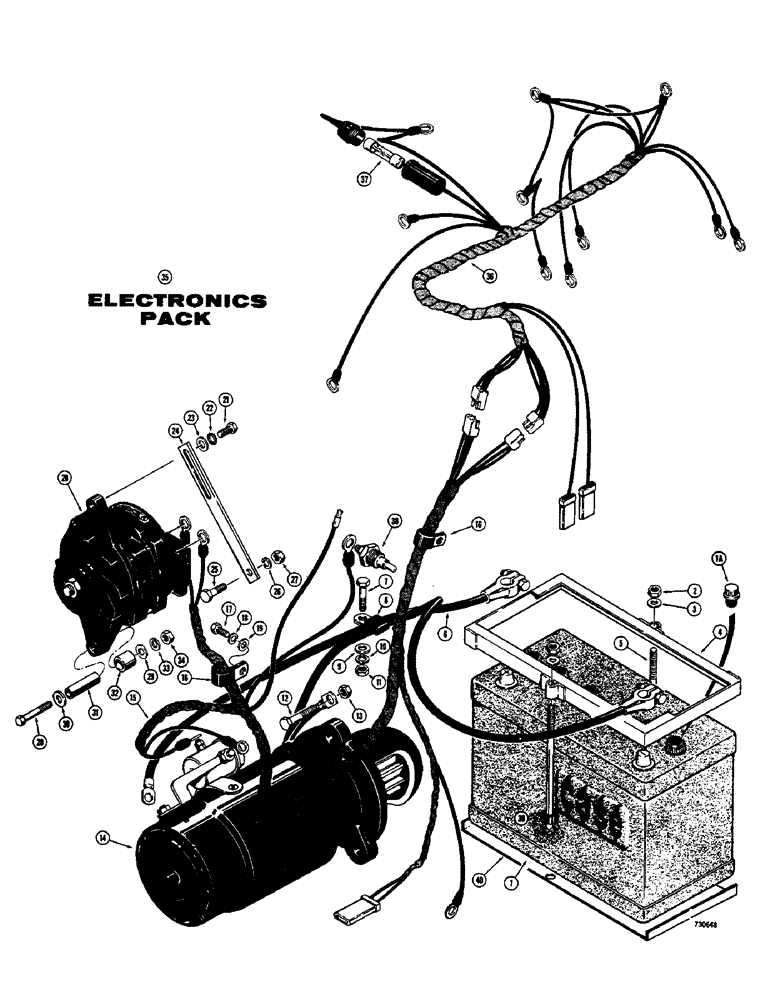

Схема запчастей Case 1700-SERIES - (076) - ELECTRICAL SYSTEM (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

T40362

BATTERY

- 12 volt, dry charge (Service replacement)

1шт.

P/N T40362 battery has standard caps which are to be replaced with non spill caps from old battery, if used, or order A60553 caps.

1шт.

1a

A60553

CAP

- battery, non-spill

6шт.

2

131-351

LOCK NUT,5/16"-18, GA

NUT - hex., lock (5/16" - 18 NC)

2шт.

3

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

4

D53411

BATTERY BOX

HOLDDOWN - battery, Serial Range: -9817612

1шт.

4

D55559

HOOK

HOLDDOWN - battery, Not shown, Start Serial: 9817612

1шт.

5

T42409

BOLT - special, Not shown, Serial Range: -9817612

2шт.

5

11-5144

BOLT (MACHINE)

BOLT - round head, square shoulder (5/16" - 18 NC x 9"), Start Serial: 9817612

2шт.

6

D61080

CABLE

- battery

2шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

8

D48498

FRAME

CLAMP - battery cable

1шт.

9

95-8

WASHER,1/2"

flat 1/2"

1шт.

10

92-8

LOCK WASHER,1/2"

1шт.

11

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

14

REF

INSTRUCTION

STARTER - motor (Parts list Figure 32)

1шт.

15

D55070

HARNESS - electrical, engine

1шт.

16

49854

CLAMP

- harness

2шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

19

195-521

WASHER,5/16", SAE

- flat (5/16")

1шт.

20

A43942

ALTERNATOR

ASSEMBLY - enclosed (Parts list Figure 061A)

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

22

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

23

195-103

WASHER,5/16"

- plain () 5/16"

1шт.

24

D56005

STRAP

- alternator adjusting

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

28

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

29

195-522

WASHER,5/16"

- plain (3/8") Zinc plated

1шт.

30

D56003

SPACER - alternator mounting

1шт.

31

D56002

BUSHING - alternator

1шт.

32

D56004

SPACER - alternator mounting

1шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

35

REF

INSTRUCTION

ELECTRONICS PACK ASSEMBLY - parts list figure 028 (Not shown)

1шт.

36

D55069

HARNESS - electrical, at instrument panel

1шт.

37

223-31

FUSE,10 Amp, Type 3AG

- 30 amp; AGC

1шт.

38

REF

INSTRUCTION

SENDING UNIT - engine temperature (See Figure 010 for correct part)

1шт.

39

G46096

RETAINER

- bolt, rubber

2шт.

40

D55622

TRAY - battery (Bolt retainer), Start Serial: 9817612

1шт.

Выбрано товаров: 44
