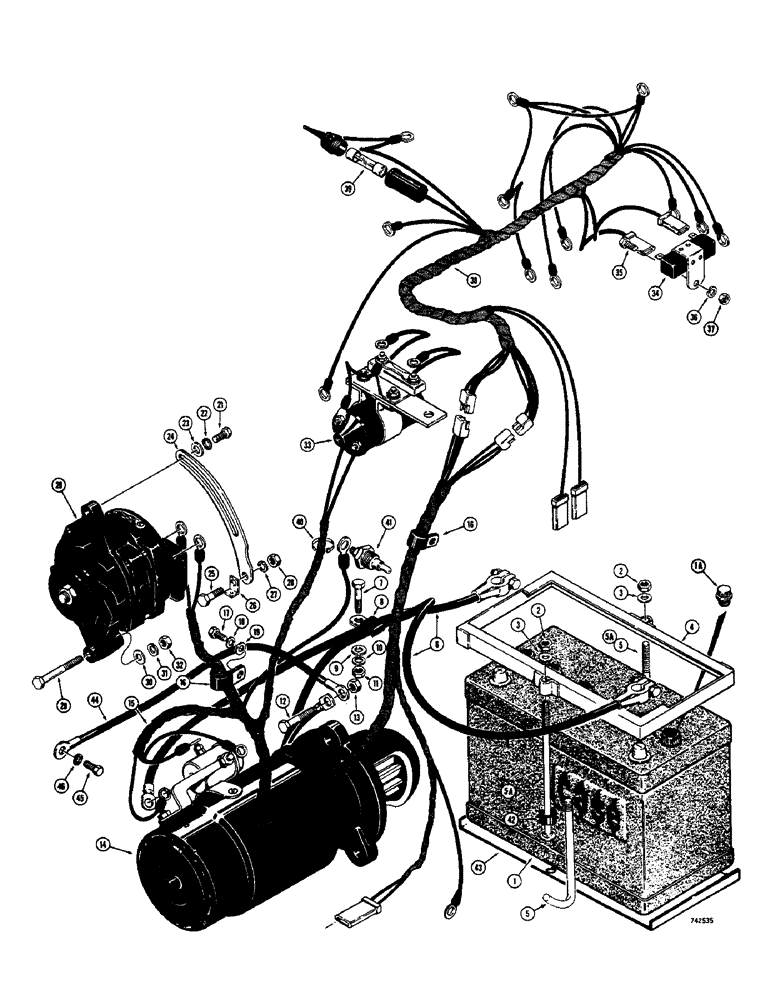

Запчасти Case 1700-SERIES (074) - ELECTRICAL SYSTEM 1737 (55) - ELECTRICAL SYSTEMS

1

T40362

BATTERY

12 volt (Service replacement)

1шт.

P/N T40362 battery has standard caps which are to be replaced with non spill caps from old battery, if used, or order A60553 caps.

1шт.

1a

A60553

CAP

Battery, non-spill

6шт.

2

131-351

LOCK NUT,5/16"-18, GA

Hex

2шт.

3

195-21

WASHER,5/16"

2шт.

4

D53411

BATTERY BOX

HOLDDOWN, Serial Range: -9817612

1шт.

4

D55559

HOOK

HOLDDOWN - battery, Not shown, Start Serial: 9817612

1шт.

5

T42409

SPARE PART Special (Used before loader S/N 9817612)

2шт.

5a

11-5144

BOLT (MACHINE)

Round head, sq. shoulder (5/16" - 18 NC x 9") Used loader S/N 9817612 and after

2шт.

6

D61081

CABLE

Battery

2шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

8

D49498

CLAMP

Battery cable

1шт.

9

95-8

WASHER,1/2"

1шт.

10

92-8

LOCK WASHER,1/2"

1шт.

11

25-108

NUT,1/2"-13, G5

Hex

1шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

13

25-106

NUT,3/8"-16, G5

Hex

1шт.

14

REF

INSTRUCTION

STARTER - motor (Parts list Figure 32)

1шт.

15

D53389

HARNESS

Electrical, engine

1шт.

16

NLS

NO LONGER SERVICED

Harness

2шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

19

195-521

WASHER,5/16", SAE

1шт.

20

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - parts list page 62

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

22

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

1шт.

23

195-103

WASHER,5/16"

1шт.

24

A59167

STRAP

Alternator adjusting, illustration is wrong part is straight

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

26

D53483

SPARE PART Idler spring

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

25-106

NUT,3/8"-16, G5

Hex

1шт.

29

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

30

195-522

WASHER,5/16"

WASHER - plain (3/8") Zinc plated

1шт.

31

192-21

LOCK WASHER,3/8"

1шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

33

A40778

COIL

Ignition, see Figure 029A

1шт.

34

F22316

RESISTOR,75 Ohms 0.2 Amps DC

Alternator

1шт.

35

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/4"-20 NC x 3/4"

1шт.

36

92-4

LOCK WASHER,1/4"

1шт.

37

25-104

NUT,1/4"-20, G5

1шт.

38

D54737

HARNESS

SPARE PART Electrical, at instrument panel, Include: Ref. 39

1шт.

39

223-31

FUSE,10 Amp, Type 3AG

FUSE - 30 amp, AGC

1шт.

40

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Wire

1шт.

41

REF

INSTRUCTION

SENDING UNIT - engine temperature (See Figure 010 for correct part)

1шт.

42

G46096

RETAINER

Bolt, rubber

2шт.

43

D55622

SPARE PART TRAY - battery (Bolt retainer), Start Serial: 9817612

1шт.

44

D43390

CABLE

Ground, if used

1шт.

45

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

46

92-6

LOCK WASHER,3/8"

1шт.
