Запчасти Case 1700-SERIES (062) - A38815 ALTERNATOR, 148 SPARK AND 188 DIESEL ENGINES (55) - ELECTRICAL SYSTEMS

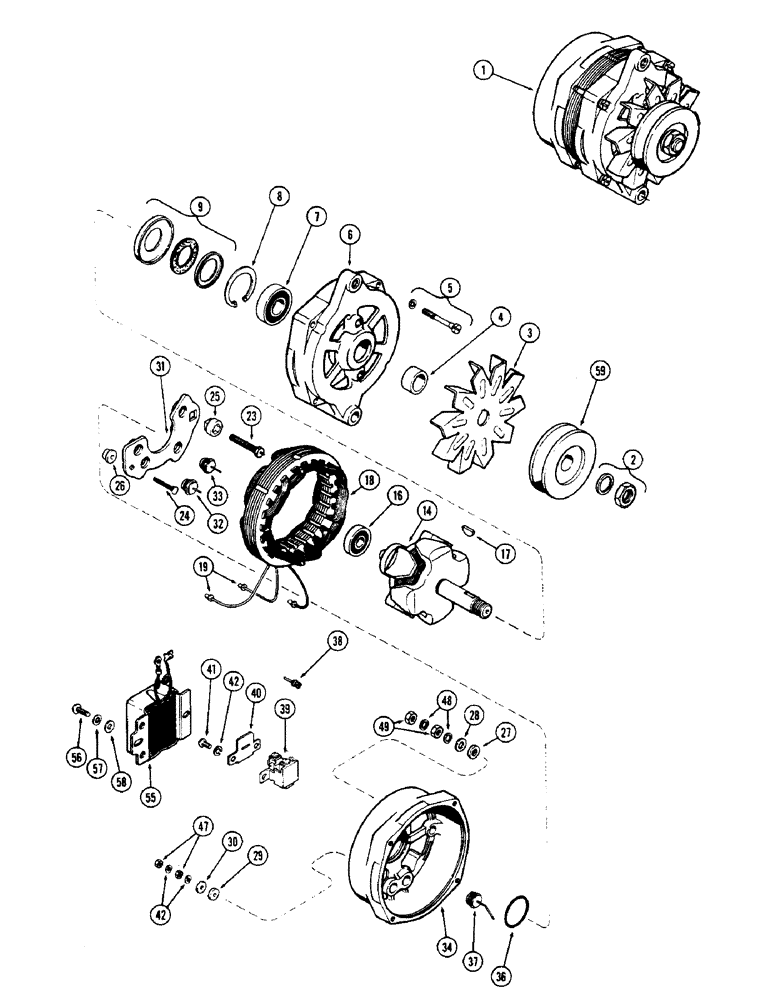

Схема запчастей Case 1700-SERIES - (062) - A38815 ALTERNATOR, 148 SPARK AND 188 DIESEL ENGINES (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A38815

ALTERNATOR

ALTERNATOR ASSY. - (Prestolite #ALK-7314) (Production only - includes pulley & regulator) (Order 1-A42776, 1-A42777 & 1-A44543), Inlcudes: Ref. 2 - 49

1шт.

A42776

ALTERNATOR

ALTERNATOR ASSY. - (Prestolite #ALK-6314-S) (Service only - w/out pulley or regulator), Inlcudes: Ref. 2 - 49

1шт.

A45324

ALTERNATOR

SPARE PART ALTERNATOR - 12 Volt 35 AMP

1шт.

87746858

REMAN-ALTERNATOR

1700 Skid Steer Loader

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 35 AMP Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 35 AMP Alternator

1шт.

2

A40581

KIT

PACKAGE - nut & washer, rotor shaft

1шт.

3

A41066

FAN

FAN - ventilating

1шт.

4

A41078

BUSHING

SPACER - rotor shaft

1шт.

5

A41081

SPARE PART PACKAGE - thru bolt (Set of 4 w/washers)

1шт.

6

A42262

HEAD

SPARE PART HEAD ASSY. - drive end, Inlcudes: Ref. 7 - 9

1шт.

7

A42263

BALL

BEARING - ball

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, bearing retaining

1шт.

9

A42268

KIT

PACKAGE - retainer & seal

1шт.

14

A42774

KIT

ROTOR ASSY.

1шт.

16

A41077

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - ball, rotor shaft (Sealed)

1шт.

17

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, , Pulley #6, 5/32" x 5/8", HT

1шт.

18

A41079

STATOR

STATOR ASSY. - (Replaces A42775)

1шт.

19

A41065

KIT

PACKAGE - eyelet, wire end (Set of 6)

1шт.

A42771

STUD

PACKAGE - terminal stud, Inlcudes: Ref. 23 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

STUD - battery terminal

1шт.

24

NSS

NOT SOLD SEPARAT

STUD - auxiliary terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - insulation, battery terminal

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - insulation, auxiliary terminal

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - insulating, battery terminal

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - battery terminal, plain

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - insulating, auxiliary terminal

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - auxiliary terminal, plain

1шт.

A42773

HEAD (CYLINDER)

RECTIFIER ASSY., Inlcudes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

HEAT SINK

1шт.

32

A41075

DIODE

DIODE - positive (Color code, red mark)

3шт.

33

A42261

DIODE

DIODE - output (Color code, black mark)

1шт.

34

A42772

SPARE PART HEAT ASSY. - slip ring end, Inlcudes: Ref. 36

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - sealing

1шт.

37

A41071

DIODE

DIODE - negative (Color code, black mark), Inlcudes: Ref. 38

4шт.

38

A42266

KIT

PACKAGE - plugs (Set of 10)

1шт.

39

A43952

HOLDER

HOLDER ASSY. - brush (Replaces A42495)

1шт.

40

A41073

COVER

INSULATION - brush holder cover

1шт.

41

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - #10-24 x 3/8" rd. hd.

2шт.

42

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

47

129-667

NUT,#10-32, LH

NUT - #10 N.F. hex., jam

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

49

131-902

NUT,1/4"-28

NUT - hex 1/4"-28

2шт.

55

A44543

REGULATOR

REGULATOR ASSY. - voltage (Replaces A42098)

1шт.

56

NSS

NOT SOLD SEPARAT

SCREW - regulator mounting

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER - lock, mtg. screws

2шт.

58

NSS

NOT SOLD SEPARAT

WASHER - plain, mtg. screws

2шт.

59

A42777

PULLEY

PULLEY - drive, alternator

1шт.

Выбрано товаров: 49
