Запчасти Case 1700-SERIES (060) - G44891 SOLENOID, 188 DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

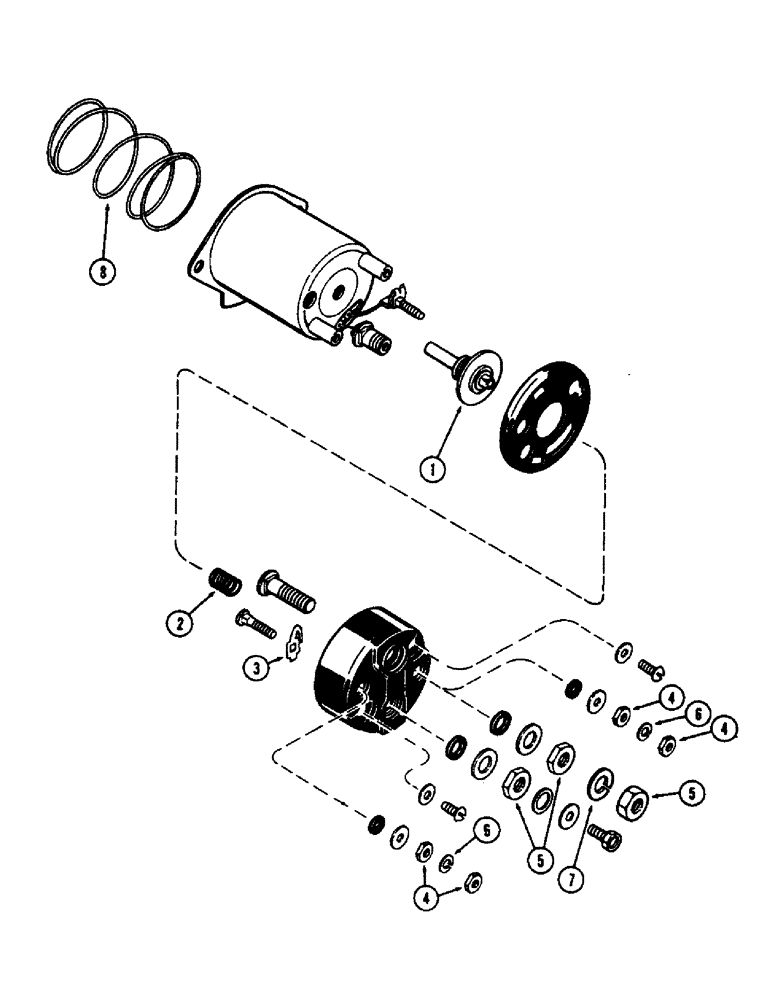

Схема запчастей Case 1700-SERIES - (060) - G44891 SOLENOID, 188 DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

G44891

SOLENOID

ASSY. - (Delco-Remy #114356) (See Delco-Remy dealer for all parts illustrated but not listed), Inlcudes: Ref. 1 - 8

1шт.

1

A42061

SWITCH

CONTACT ASSY

1шт.

2

A42059

SPRING

- contact return

1шт.

3

A42060

HALF BLADE

BLADE - contact

1шт.

4

129-16

NUT,#8-32

Terminal #8-32

4шт.

5

87016560

JAM NUT,Jam, 3/8"-16, G5

Terminal Jam, 3/8"-16, G5

3шт.

6

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , Terminal #8

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Terminal 3/8"

1шт.

8

A40221

SPRING

- plunger return

1шт.

Выбрано товаров: 9
