Запчасти Case 1700-SERIES (134) - WHEELS (44) - WHEELS

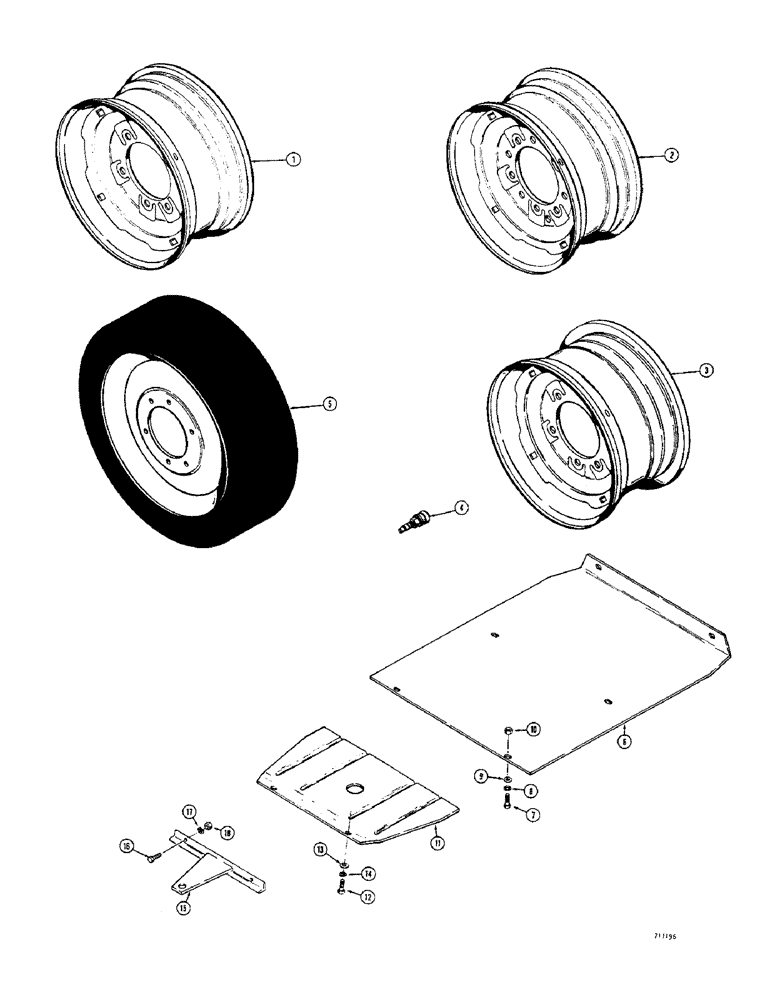

Схема запчастей Case 1700-SERIES - (134) - WHEELS (44) - WHEELS

Артикул

Название

Примечание

Количество

1

T40841

RIM - wheel, mounts 11L x 15" tire

4шт.

2

T40663

WHEEL

RIM - wheel, mounts 7.00 x 15" tire

4шт.

3

T40839

WHEEL

RIM - wheel, mounts 10 x 16.5" tire

4шт.

3

D62240

WHEEL

RIM - wheel, mounts 7.00 x 15" steel cap tire

4шт.

3

D58500

RIM - wheel, mounts 15.5 x 15" tire

4шт.

4

T40840

STEM

VALVE ASSEMBLY - stem, wheel

4шт.

5

T42510

WHEEL - 6.50 x 16" duro cushion (Solid rubber)

4шт.

5a

D55063

CHAIN (AG)

CHAIN - tire, use with steel cap tires (Not illustrated)

4шт.

6

D53422

PAN - belly, front (Engine)

1шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

195-25

WASHER,3/8"

- plain () 3/8"

8шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

11

D55101

PAN - belly, front (Engine)

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

13

195-25

WASHER,3/8"

- flat () 3/8"

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

14a

D55218

SEAL, GLASS,76mm L

TRIM - quick edge (Not shown), belly pans

4шт.

15

D53116

DRAWBAR - hitch,, 1737 and 1740

1шт.

16

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(1737 and 1740) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

17

92-8

LOCK WASHER,1/2"

(1737 and 1740) 1/2"

2шт.

18

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC) (1737 and 1740)

2шт.

Выбрано товаров: 22
