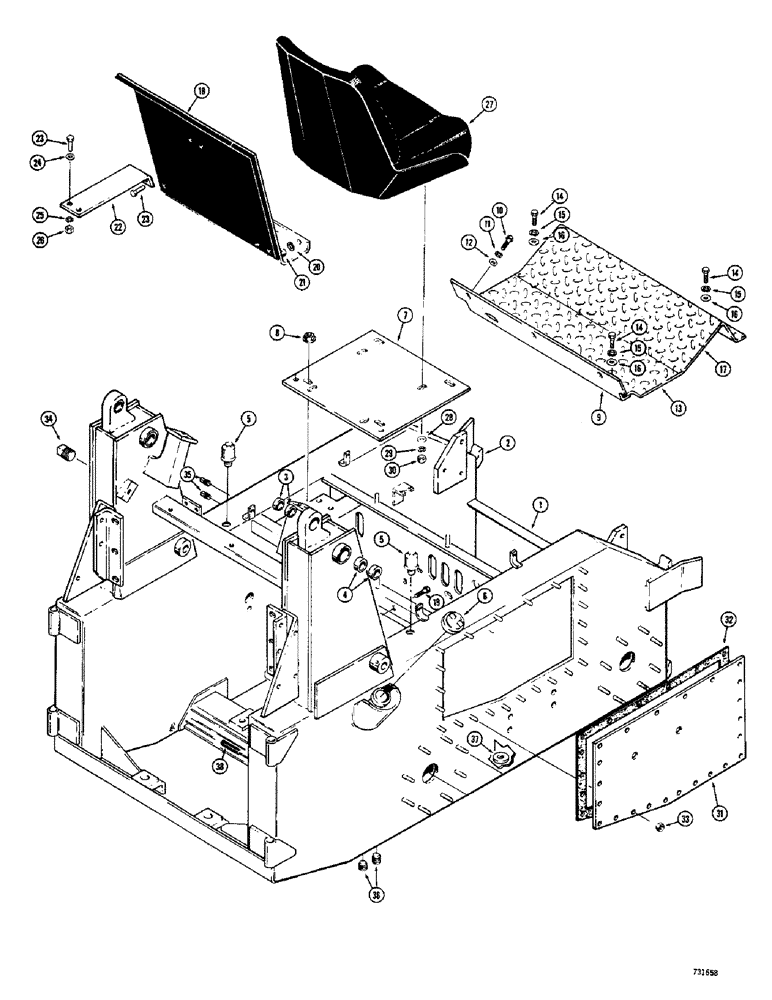

Запчасти Case 1700-SERIES (139A) - MAIN FRAME AND RELATED PARTS, USED TRACTOR SERIAL NO. 9825490 AND AFTER (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

MAIN FRAME ASSEMBLY - uni-loader

1шт.

2

T41758

HOOK

- backhoe mounting, Including: Ref. 2 - 4

2шт.

3

D53031

BUSHING

- leveling link pivot

4шт.

4

D33827

BUSHING,31.98mm ID x 41.27mm OD x 31.8mm L

- lift arm pivot

4шт.

5

31543

BREATHER

- oil, 1/4" NPT

2шт.

6

D61089

CAP

- fuel, vented

2шт.

7

D55656

PLATFORM

- seat

1шт.

8

131-911

FLANGE NUT,Flg, 5/16"-18

NUT - hex., flanged (5/16" - 18 NC)

4шт.

9

D54011

FLOORBOARD - rear (Models without brakes)

1шт.

9

D53926

DIVIDER BOARD

FLOORBOARD - rear (Models with brakes)

1шт.

10

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Standard - 1737 and 1740) Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

10

113-170

HHCS - 5/16" - 18 NC x 1" (Stainless steel - 1737S)

3шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

3шт.

13

D53938

FLOORBOARD - middle (Models without brakes)

1шт.

13

D53929

FLOORBOARD - middle (Models with brakes)

1шт.

14

113-296

HHCS - 3/8" - 16 NC x 1" (Stainless steel - 1737S)

7шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Standard - 1737 and 1740) Hex, 3/8"-16 x 1", G5, Full Thd

7шт.

15

92-6

LOCK WASHER,3/8"

7шт.

16

195-25

WASHER,3/8"

- plain () 3/8"

7шт.

17

D54689

DIVIDER BOARD

FLOORBOARD - front

1шт.

18

D54625

SHIELD - heat, 1737S models

1шт.

18

T42389

SHIELD - heat, 1737 and 1740 models

1шт.

19

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

2

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

22

D54115

BRACE - heat shield

1шт.

23

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

24

195-18

WASHER,1/4"

- flat () 1/4"

1шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

26

25-104

NUT,1/4"-20, G5

4шт.

27

D56576

SEAT

- operators (Parts list Figure 208)

1шт.

28

195-103

WASHER,5/16"

- flat () plated 5/16"

4шт.

29

92-5

LOCK WASHER,5/16"

4шт.

30

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

31

T42538

COVER - drive compartment

2шт.

32

T42539

GASKET KIT

- cover

2шт.

33

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) Standard - 1737 and 1740

48шт.

33

129-176

NUT - hex. (3/8" - 16 NC) Stainless steel - 1737S

48шт.

34

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, sq. head (1/2" NPT)

1шт.

35

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, sq. head (1/4" NPT)

2шт.

36

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

Magnetic Hex Soc, 1/2" NPT

4шт.

37

L15043

MAGNET

- hydraulic tank

2шт.

38

D55218

SEAL, GLASS,76mm L

TRIM - quick edge

1шт.

121-2072

STUD, hold on wheel hub

1шт.

121-2086

STUD

for drive compartment cover

1шт.
