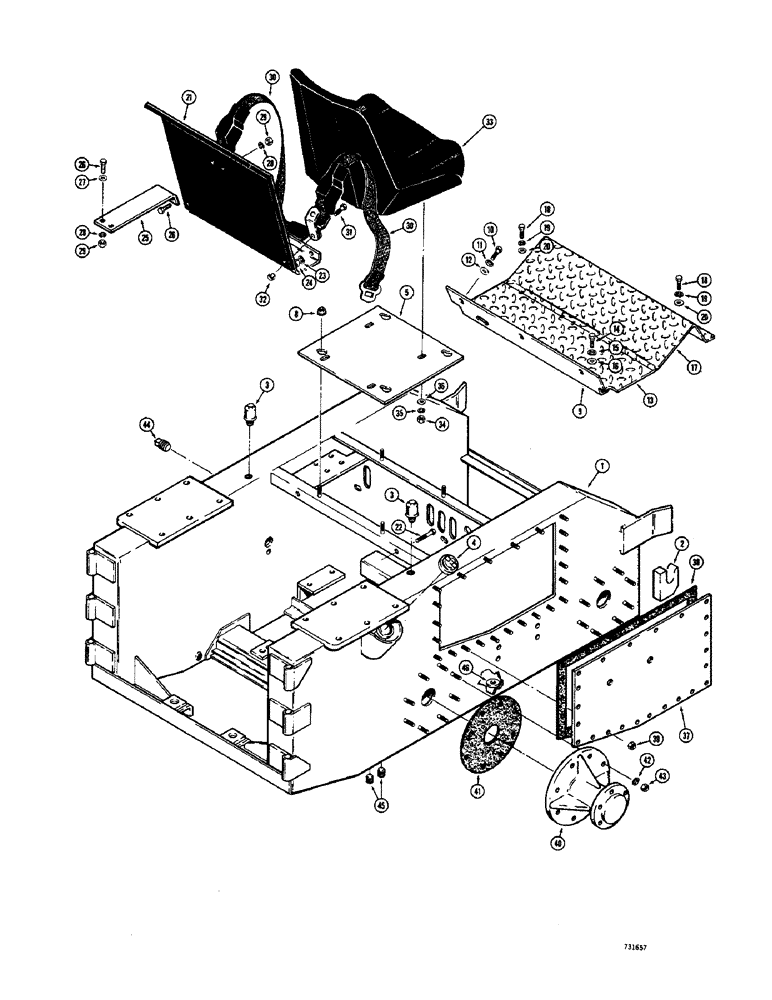

Запчасти Case 1700-SERIES (138) - MAIN FRAME AND RELATED PARTS, USED BEFORE TRACTOR SERIAL NO. 9825490 (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

MAIN FRAME ASSEMBLY - Uni-loader, Including Ref. 2

1шт.

2

T41758

HOOK

Backhoe mounting

4шт.

3

31543

BREATHER

Oil, 1/4" NPT

2шт.

4

D61089

CAP

Fuel, vented

2шт.

5

D55656

PLATFORM

Seat

1шт.

6

RESERVED

1шт.

7

RESERVED

1шт.

8

131-911

FLANGE NUT,Flg, 5/16"-18

4шт.

9

D54011

SPARE PART FLOORBOARD - rear (Models without brakes)

1шт.

9

D53926

DIVIDER BOARD

FLOORBOARD - rear (Models with brakes)

1шт.

10

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Standard - 1737 and 1740)

3шт.

10

113-170

SPARE PART HHCS - 5/16" - 18 NC x 1" (Stainless steel - 1737S)

3шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

3шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - plain (5/16")

3шт.

13

D53938

SPARE PART FLOORBOARD - middle (Models without brakes)

1шт.

13

D53929

SPARE PART Middle (Models with brakes)

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Standard - 1737 and 1740)

2шт.

14

113-296

SPARE PART HHCS - 3/8" - 16 NC x 1" (Stainless steel - 1737S)

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

195-25

WASHER,3/8"

2шт.

17

D54689

DIVIDER BOARD

FLOORBOARD - front

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Standard - 1737 and 1740)

5шт.

18

113-296

SPARE PART HHCS - 3/8" - 16 NC x 1" (Stainless steel - 1737S)

5шт.

19

92-6

LOCK WASHER,3/8"

5шт.

20

195-25

WASHER,3/8"

5шт.

21

D54625

SPARE PART Heat (Used on models 1737 and 1740 before S/N 9816499 and all 1737S models)

1шт.

21

T42389

SPARE PART Heat (Used on models 1737 and 1740 S/N 9816499 and after)

1шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

D54115

SPARE PART Heat shield

1шт.

26

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

27

195-18

WASHER,1/4"

2шт.

28

92-4

LOCK WASHER,1/4"

4шт.

29

25-104

NUT,1/4"-20, G5

4шт.

30

T42386

SPARE PART Complete (Models without ROPS only)

1шт.

31

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

32

131-654

LOCK NUT,1/2"-13, GB

2шт.

33

REF

INSTRUCTION

SEAT ASSEMBLY - operator's (See Figure 208 for seats)

1шт.

34

25-115

NUT,5/16"-24, G5

4шт.

35

92-5

LOCK WASHER,5/16"

4шт.

36

195-103

WASHER,5/16"

4шт.

37

T42538

SPARE PART Drive compartment

2шт.

38

T42539

GASKET KIT

Cover

2шт.

39

25-106

NUT,3/8"-16, G5

Standard - 1737 and 1740

48шт.

39

129-176

SPARE PART Hex, (3/8" - 16 NC) Stainless steel - 1737S

48шт.

40

REF

INSTRUCTION

HUB ASSEMBLY - axle (Parts list Figures 116 and 118)

4шт.

41

T42395

GASKET

Hub

4шт.

42

92-9

BEARING WASHER,9/16"

32шт.

43

25-119

NUT,9/16"-18, G5

32шт.

44

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

Pipe

1шт.

45

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

Magnetic

4шт.

46

L15043

MAGNET

Hydraulic oil tank

2шт.
