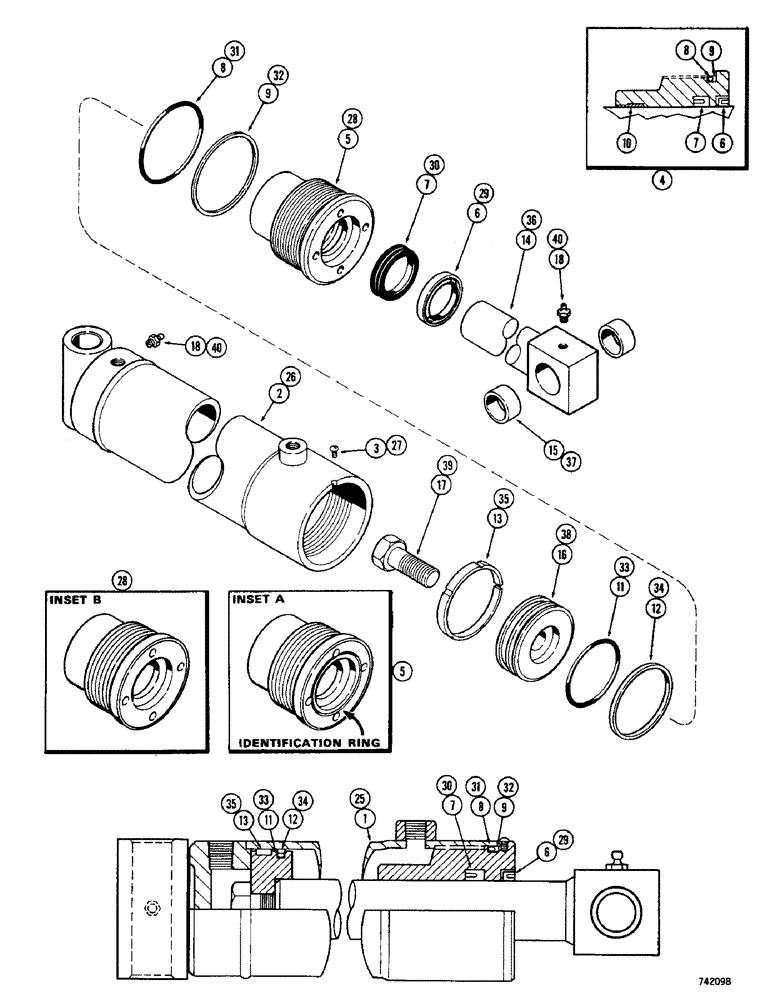

Запчасти Case 1700-SERIES (250) - SCARIFIER CYLINDER (35) - HYDRAULIC SYSTEMS

1

G33744

CYLINDER BLOCK

CYLINDER - scarifier, 3" dia. x 13" stroke, G33744, Includes: Ref. 2 - 18

1шт.

2

G32271

TUBE,19.56" L

- cylinder, G33744

1шт.

3

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1" round head

1шт.

4

G33485

GLAND

ASSEMBLY, G33744 has identification ring, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - see inset A, G33744 has identification ring

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer, 1-1/2 x 2 x 5/16", G33744

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

7

D36969

CUP

SEAL - piston rod, 1-1/2 x 2 x 13/32", G33744

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - 3 x 3-1/4 x 1/8", G33744

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- "O" ring back-up, G33744

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

10

D27706

WIPER SEAL

WIPER - piston rod, inner (If used), G33744

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - 2-1/2 x 2-3/4 x 1/8", G33744

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

12

G32034

RING

- piston seal, 2-7/8 x 5/32" teflon, G33744

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

13

G32033

RING

- wear, piston, G33744

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

14

G33753

ROD

- piston, 1-1/2" dia., G33744, Includes: Ref. 15

1шт.

15

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- 1 x 1-1/4 x 5/8", G33744

2шт.

16

G33747

PISTON

- cylinder, G33744

1шт.

17

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

G33744 Hex, 3/4-16 x 2", G8, Full Thd

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), G33744

2шт.

G32269

KIT

- seal, cylinder, Includes: Ref. 6, 7, 8, 9, 11, 12 and 13, G33744

1шт.

19

RESERVED

1шт.

20

RESERVED

1шт.

21

RESERVED

1шт.

22

RESERVED

1шт.

23

RESERVED

1шт.

24

RESERVED

1шт.

25

G32270

CYLINDER

- scarifier, 3" dia. x 13" stroke, G32270, Includes: Ref. 26 - 40

1шт.

26

G32271

TUBE,19.56" L

- cylinder, G32270

1шт.

27

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1" round head

1шт.

28

G32797

GLAND

ASSEMBLY - cylinder (See inset B), G3227 has no identification ring, Includes: Ref. 29 - 32

1шт.

29

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod (1-1/2 x 2 x 5/16"), G32270

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

30

D36969

CUP

SEAL - "U" cup (1-1/2 x 2 x 13/32"), G32270

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

31

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8"), G32270

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

32

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- "O" ring back-up, G32270

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

33

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - piston (2-1/2 x 2-3/4 x 1/8"), G32270

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

34

G32034

RING

- seal, piston (2-7/8 x 3 x 5/32" teflon), G32270

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

35

G32033

RING

- wear, piston, G32270

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

36

G32057

ROD

- piston, 1-1/2" dia., G32270, Includes: Ref. 37

1шт.

37

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- piston rod (1 x 1-1/4 x 5/8"), G32270

2шт.

38

G32032

PISTON

- cylinder, G32270

1шт.

39

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), G32270

2шт.

G32269

KIT

- seal, cylinder, Includes: Ref. 29, 30, 31, 32, 33, 34 and 35, G32270

1шт.
