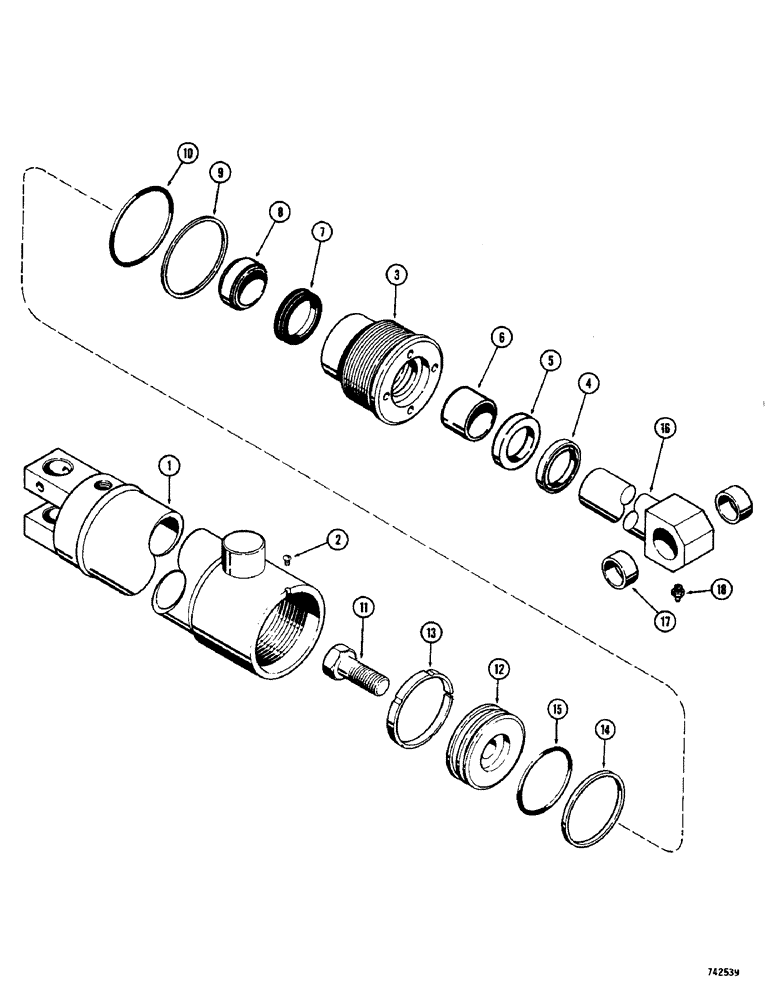

Запчасти Case 1700-SERIES (245A) - G33752 BUCKET DUMP CYLINDER (35) - HYDRAULIC SYSTEMS

G33752

CYLINDER BLOCK

CYLINDER - dump, 3" dia. x 14-1/4" stroke, Includes: Ref. 1 - 18

2шт.

1

L1232971

SCREW,Hex Skt Hd, M12 x 30mm, Cl 10.9

TUBE - cylinder

1шт.

2

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

G34328

GLAND

ASSEMBLY, Includes: Ref. 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod, outer

1шт.

Part of Seal Kit P/N G34656

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

G34302

BEARING

- center

1шт.

Part of Seal Kit P/N G34656

1шт.

7

D36969

CUP

SEAL - rod

1шт.

Part of Seal Kit P/N G34656

1шт.

8

D27706

WIPER SEAL

WIPER - rod, inner (If used)

1шт.

Part of Seal Kit P/N G34656

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G34656

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

Part of Seal Kit P/N G34656

1шт.

11

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

12

G33747

PISTON

- cylinder

1шт.

13

G32033

RING

- wear, piston

1шт.

Part of Seal Kit P/N G34656

1шт.

14

G32034

RING

- backup

1шт.

Part of Seal Kit P/N G34656

1шт.

15

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

Part of Seal Kit P/N G34656

1шт.

16

G33753

ROD

- piston, 1-1/2" dia, Includes: Ref. 17

1шт.

17

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- rod

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

G34656

SEAL

KIT - seal, Includes: Ref. 4, 6, 7, 8, 9, 10, 13, 14 and 15

1шт.
